Front Lower Arm: Components

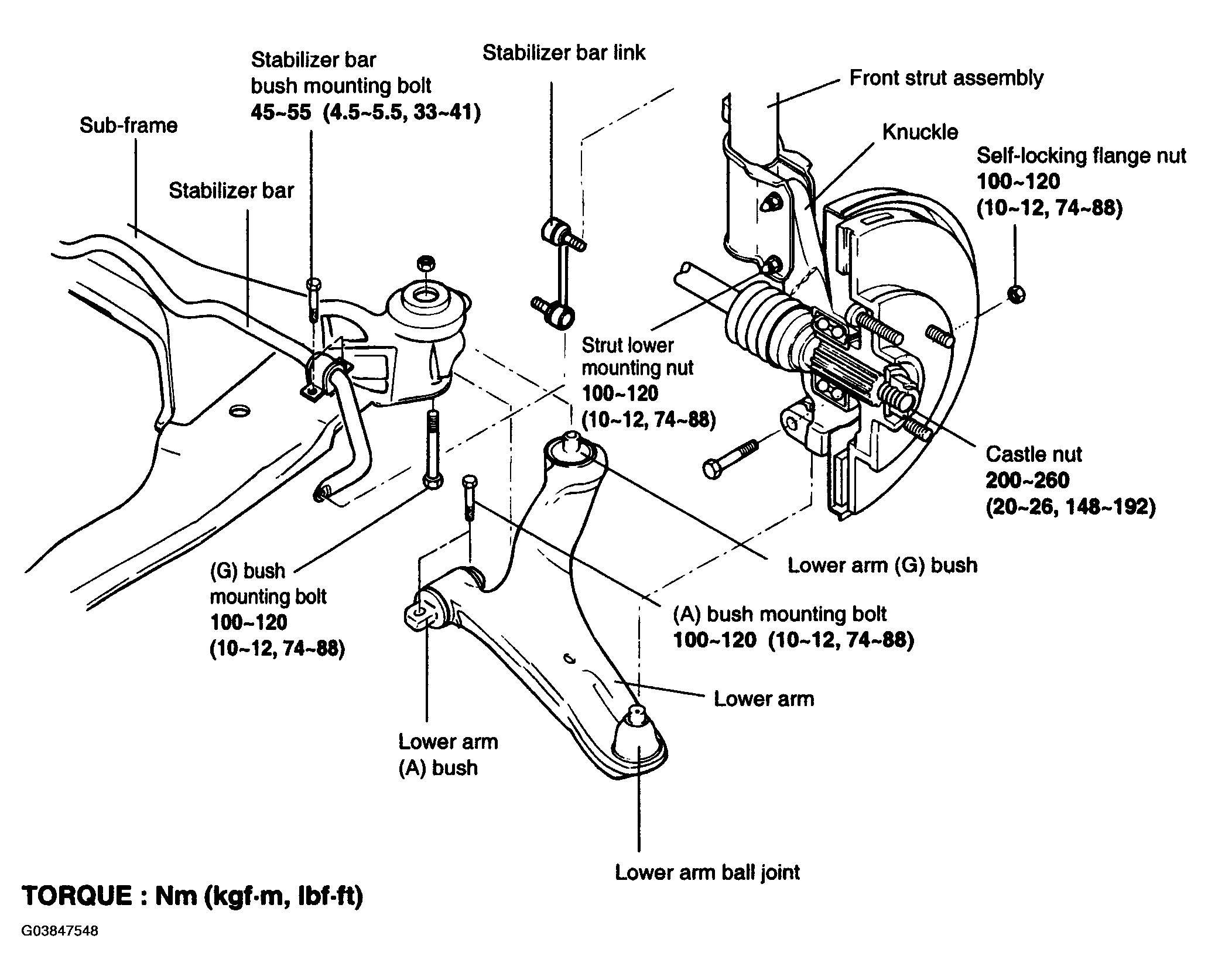

Fig 1: Identifying Front Lower Arm Components
G03847548Courtesy of HYUNDAI MOTOR CO.
