Front Strut Assembly: Components

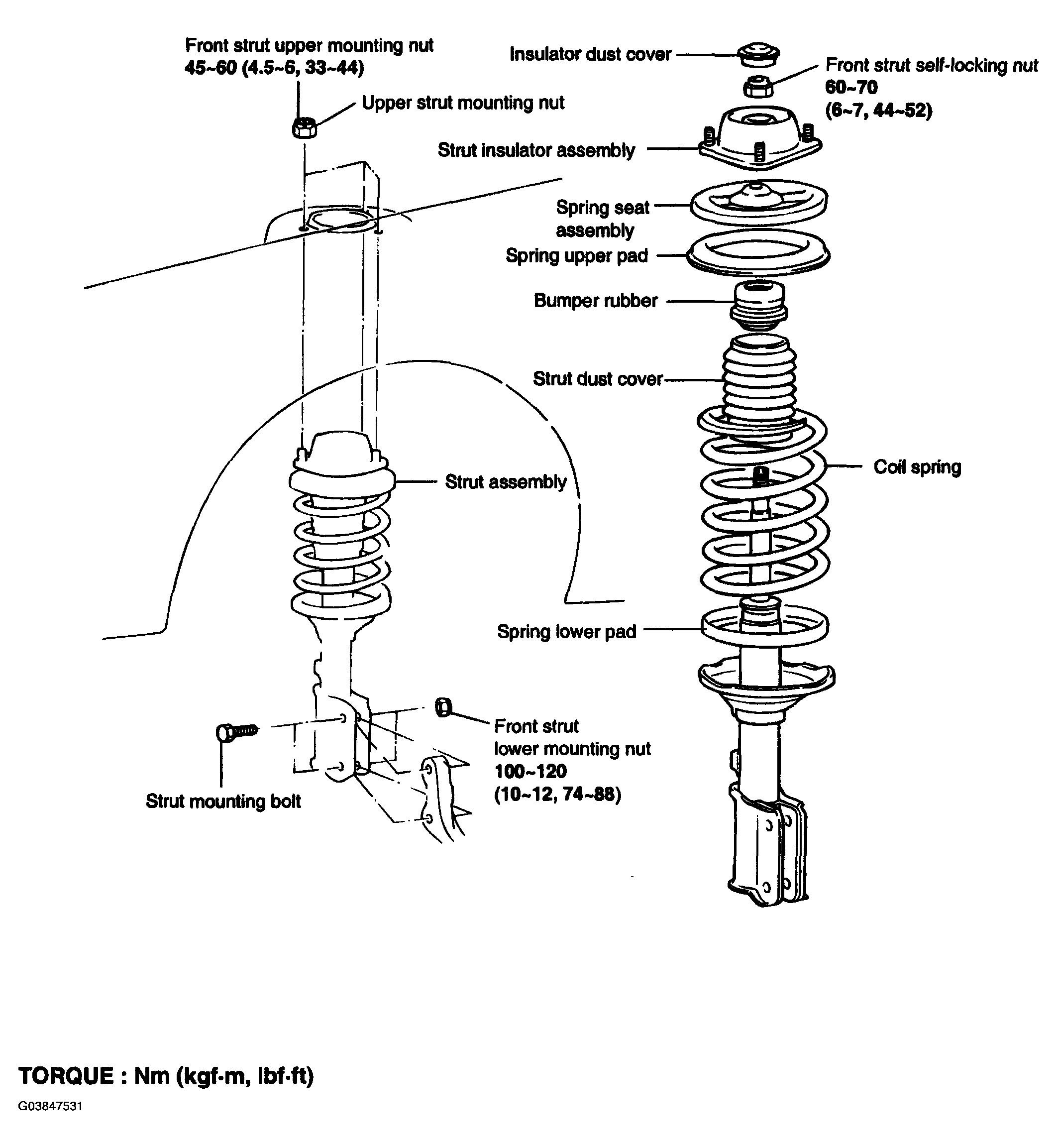

Fig 1: Identifying Front Strut Assembly Components
G03847531Courtesy of HYUNDAI MOTOR CO.
