Front Strut Assembly: Disassembly

Remove the dust cover with a flat-tip screw driver.

Fig 1: Removing Dust Cover
Courtesy of HYUNDAI MOTOR CO.
Using the special tool (09546-26000), compress the coil spring until there is only a little tension on the strut.
NOTE: Do not use an impact gun.

Fig 2: Compressing Coil Spring
Courtesy of HYUNDAI MOTOR CO.
Remove the front strut self-locking nut.

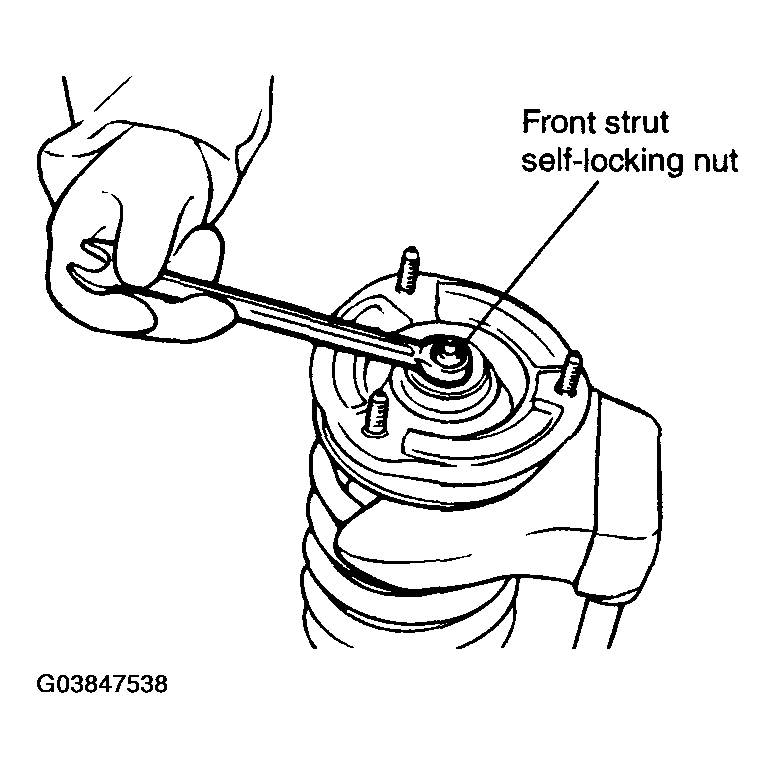

Fig 3: Removing Front Strut Self-Locking Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the washer, strut insulator assembly, upper spring seat, upper spring pad, bumper rubber, dust cover, coil spring and lower springpad.
