Front Strut Assembly: Reassembly

Using the spring compressor (09546-26000), compress the coil spring completely.

Fig 1: Compressing Coil Spring

Courtesy of HYUNDAI MOTOR CO.

NOTE:

Follow coil spring installation chart.

COIL SPRING INSTALLATION

Fig 2: Locating Identification Color Of Coil Spring

Courtesy of HYUNDAI MOTOR CO.

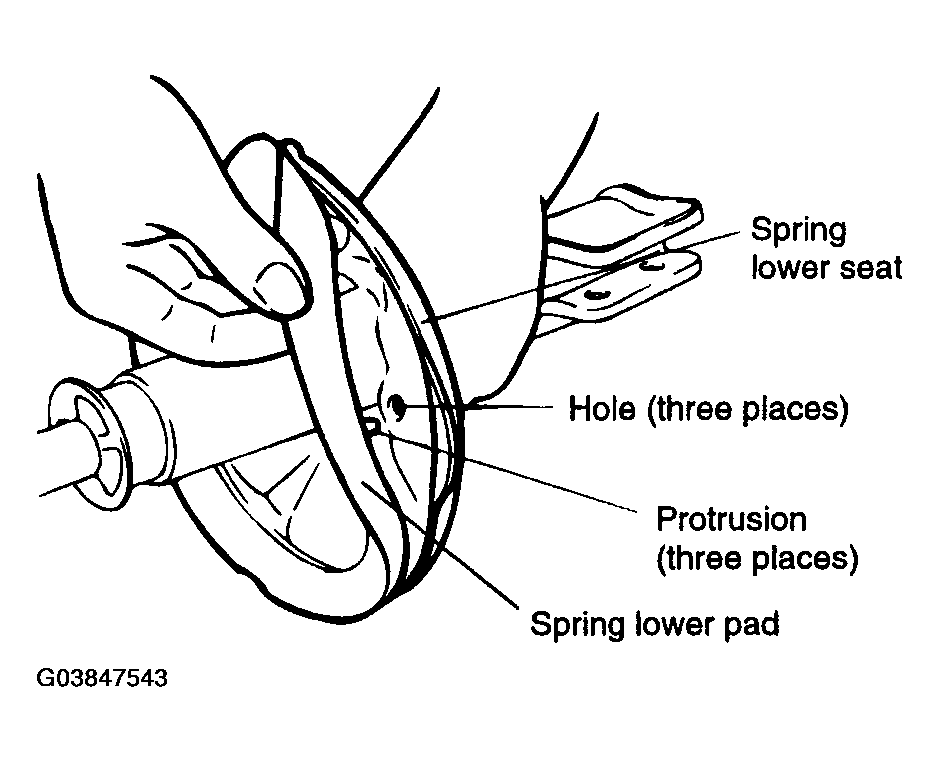

Install the spring lower pad so that the protrusions fit in the holes of the spring lower seat.
NOTE: Position the upper and lower ends of the coil spring in the upper spring pad and lower spring seat groove.

Fig 3: Installing Spring Lower Pad
Courtesy of HYUNDAI MOTOR CO.

Fig 4: Identifying Coil Spring Edge And Spring Seat
Courtesy of HYUNDAI MOTOR CO.

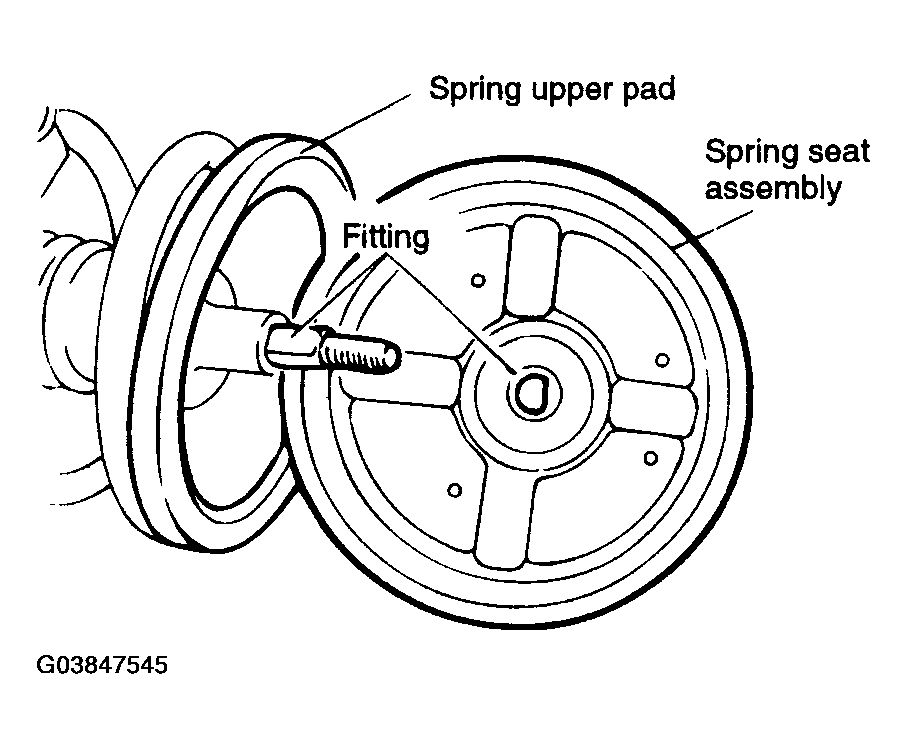

Install the spring seat assembly on the piston rod.
NOTE: Align the D-shaped hole in the spring seat assembly with the protrusion on the piston rod.

Fig 5: Installing Spring Seat Assembly On Piston Rod
Courtesy of HYUNDAI MOTOR CO.
Place the bracket so the holes on the spring upper seat align with those on the spring lower seat in a straight line.

Fig 6: Aligning Holes On Spring Upper Seat With Those On Spring Lower Seat
Courtesy of HYUNDAI MOTOR CO.
Tighten the new self-locking nut temporarily.
Remove the special tool (09546-26000).
While holding the piston rod, tighten the new self-locking nut to the specified torque.
Tightening torque

Piston rod to bracket nut:

60~70 N.m (6~7 kgf.m, 44~52 lbf.ft)

CAUTION: Do not mar up the piston rod with the tool.

Fig 7: Tightening Self-Locking Nut
Courtesy of HYUNDAI MOTOR CO.
