Automatic Transaxle Shift Control: Components

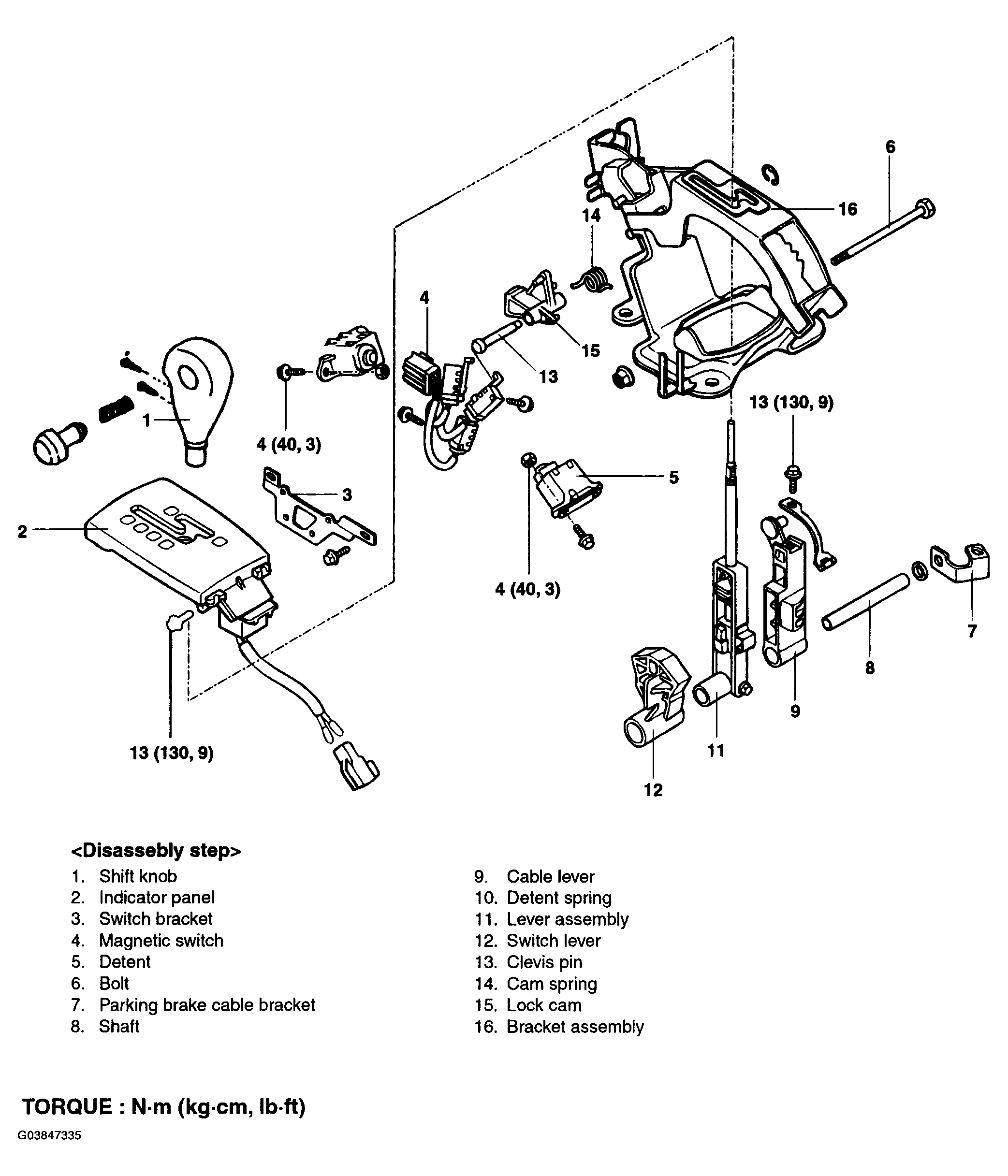

Fig 1: Automatic Transaxle Shift Control Replacement Components With Torque Specifications
G03847335Courtesy of HYUNDAI MOTOR CO.
