Automatic Transaxle: Components

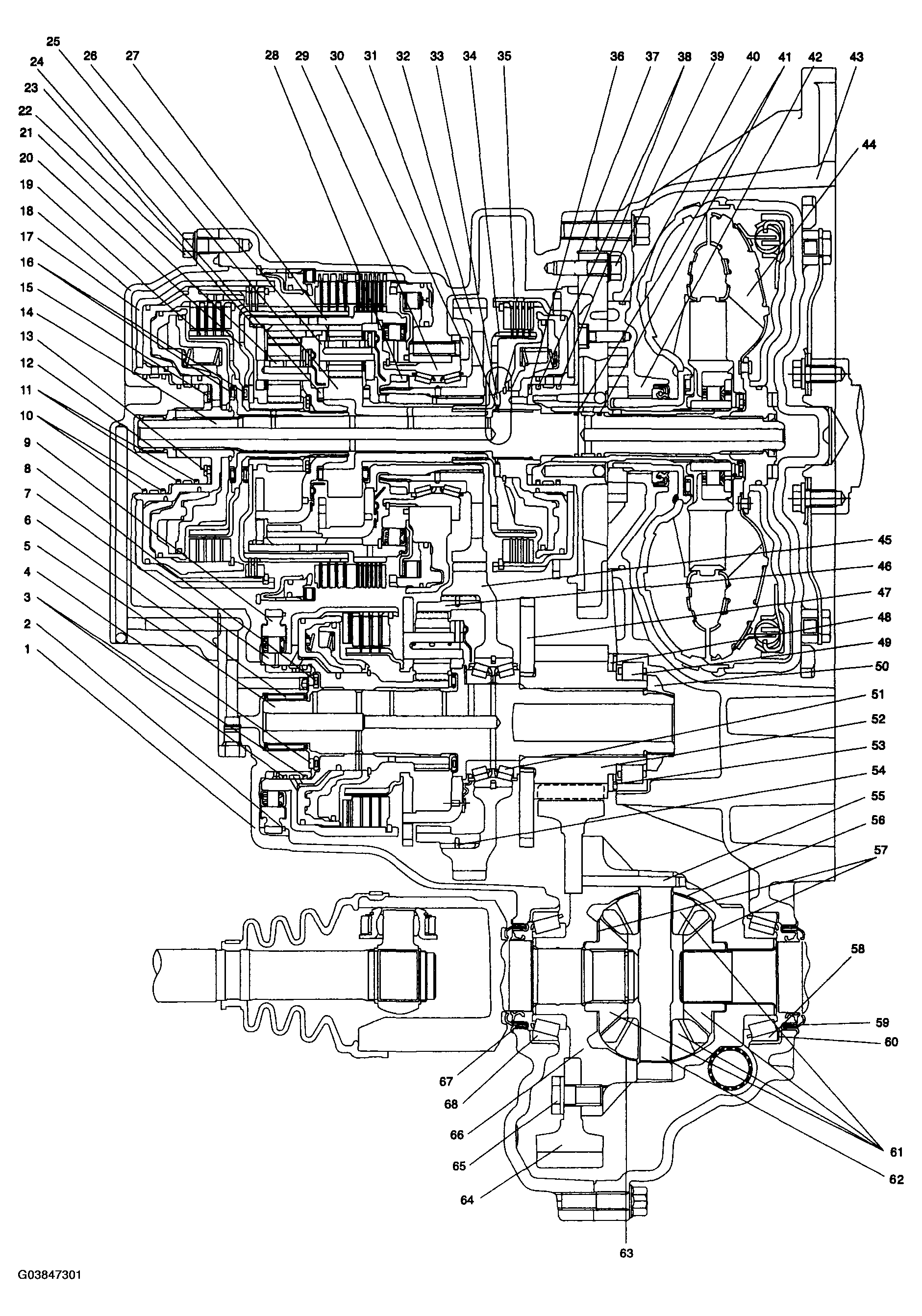

Fig 1: Identifying Automatic Transaxle Components (1 Of 2)
G03847301Courtesy of HYUNDAI MOTOR CO.

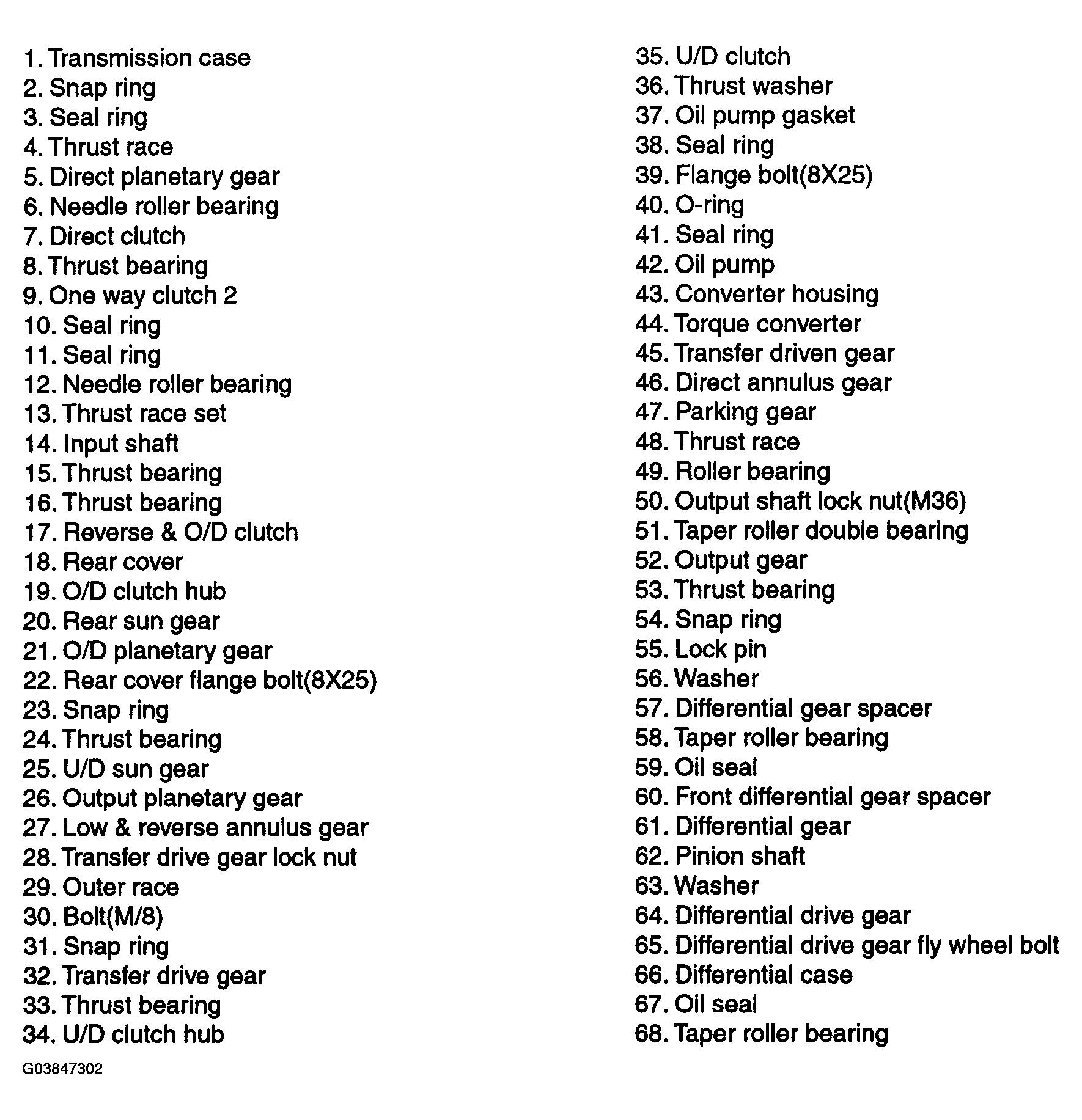

Fig 2: Identifying Automatic Transaxle Components (2 Of 2)
G03847302Courtesy of HYUNDAI MOTOR CO.
