Inspection Procedure 11

TROUBLE SYMPTOMS - INSPECTION PROCEDURE 11

Changed shift points (All points) Probable cause
If all shift points are changed while driving, the cause is probably a malfunction of the output shaft speed sensor, TPS or a solenoid valve.
  • Malfunction of the output shaft speed sensor
  • Malfunction of the throttle position sensor
  • Malfunction of each solenoid valve Abnormal line pressure
  • Malfunction of the valve body
  • Malfunction of the TCM

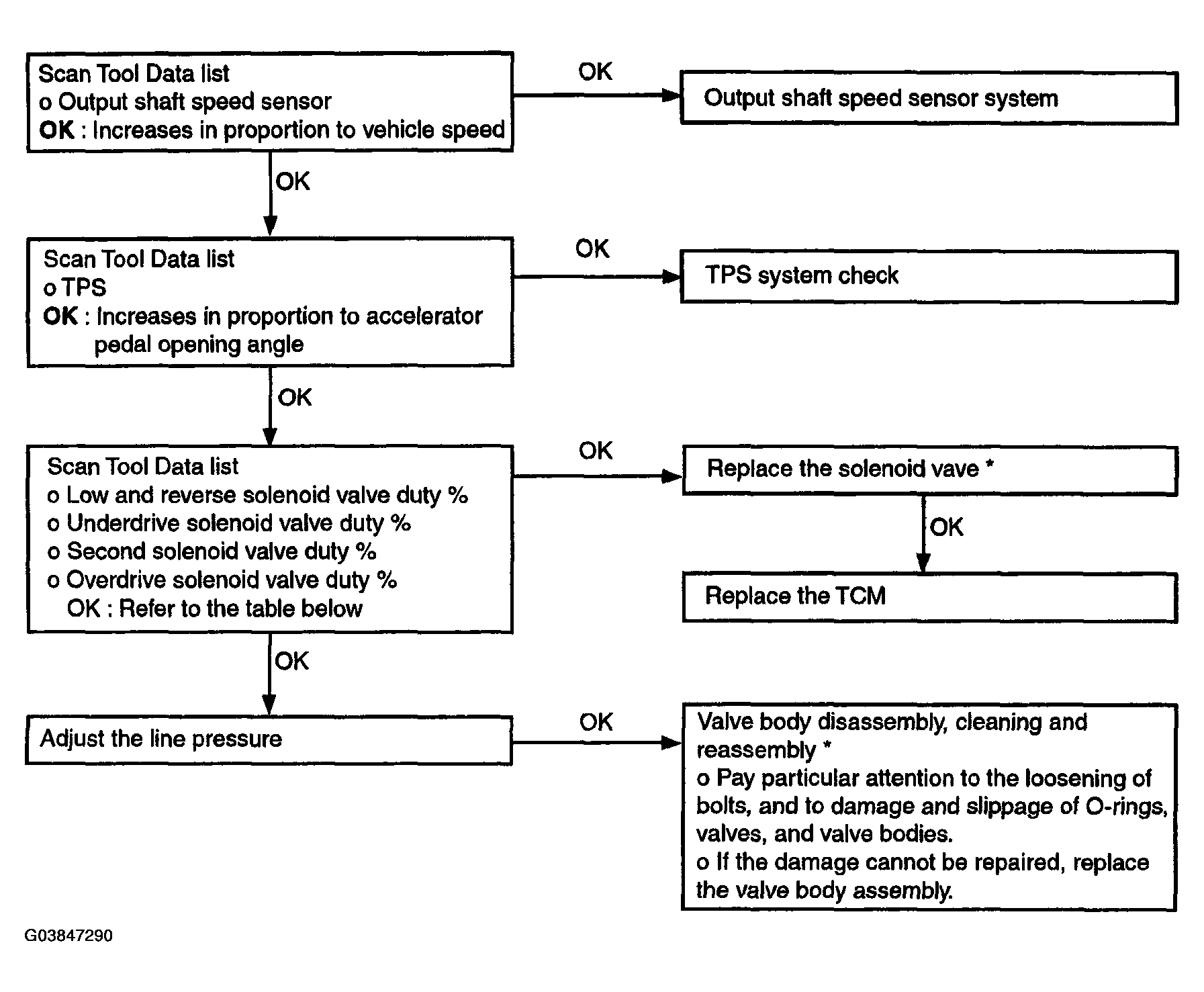

Fig 1: Trouble Symptoms - Inspection Procedure 11 Flow Chart
G03847290Courtesy of HYUNDAI MOTOR CO.
