Inspection Procedure 12

TROUBLE SYMPTOMS - INSPECTION PROCEDURE 12

Displaced shift points (Some points) Probable cause
If some of the shift points are changed while driving, the cause is probably a malfunction of the valve body, or it is related to adaptive logic control and is not an abnormality.
  • Malfunction of the valve body

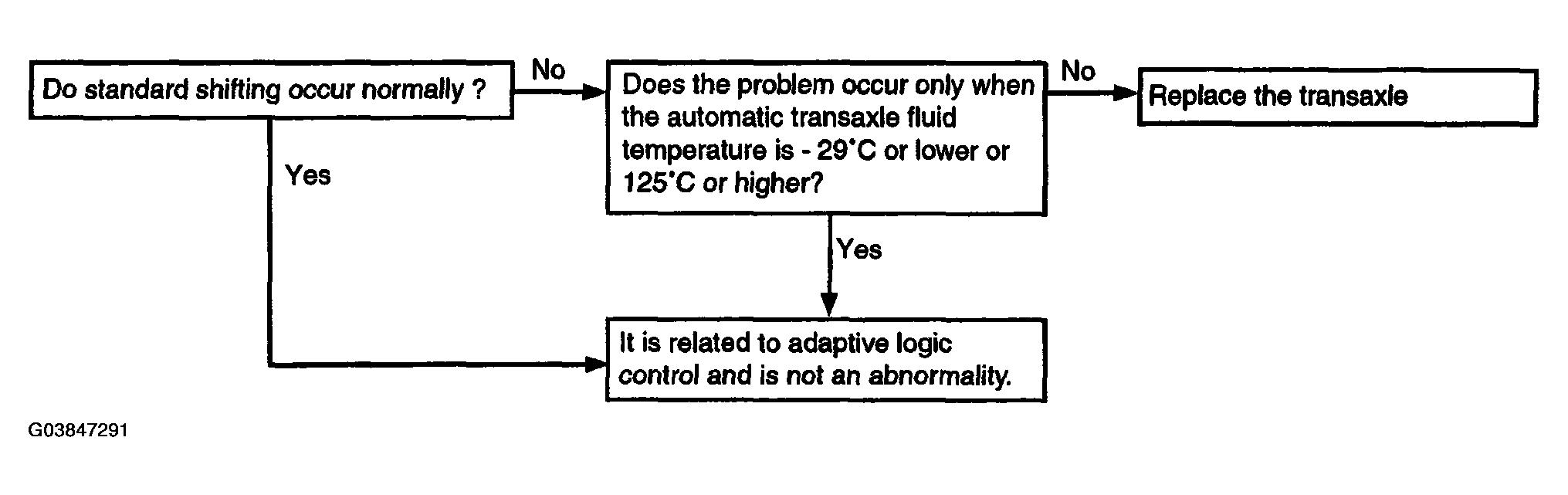

Fig 1: Trouble Symptoms - Inspection Procedure 12 Flow Chart
G03847291Courtesy of HYUNDAI MOTOR CO.
