Automatic Transaxle System
›
Troubleshooting (A/T)
›
Notes
Troubleshooting (A/T): Notes

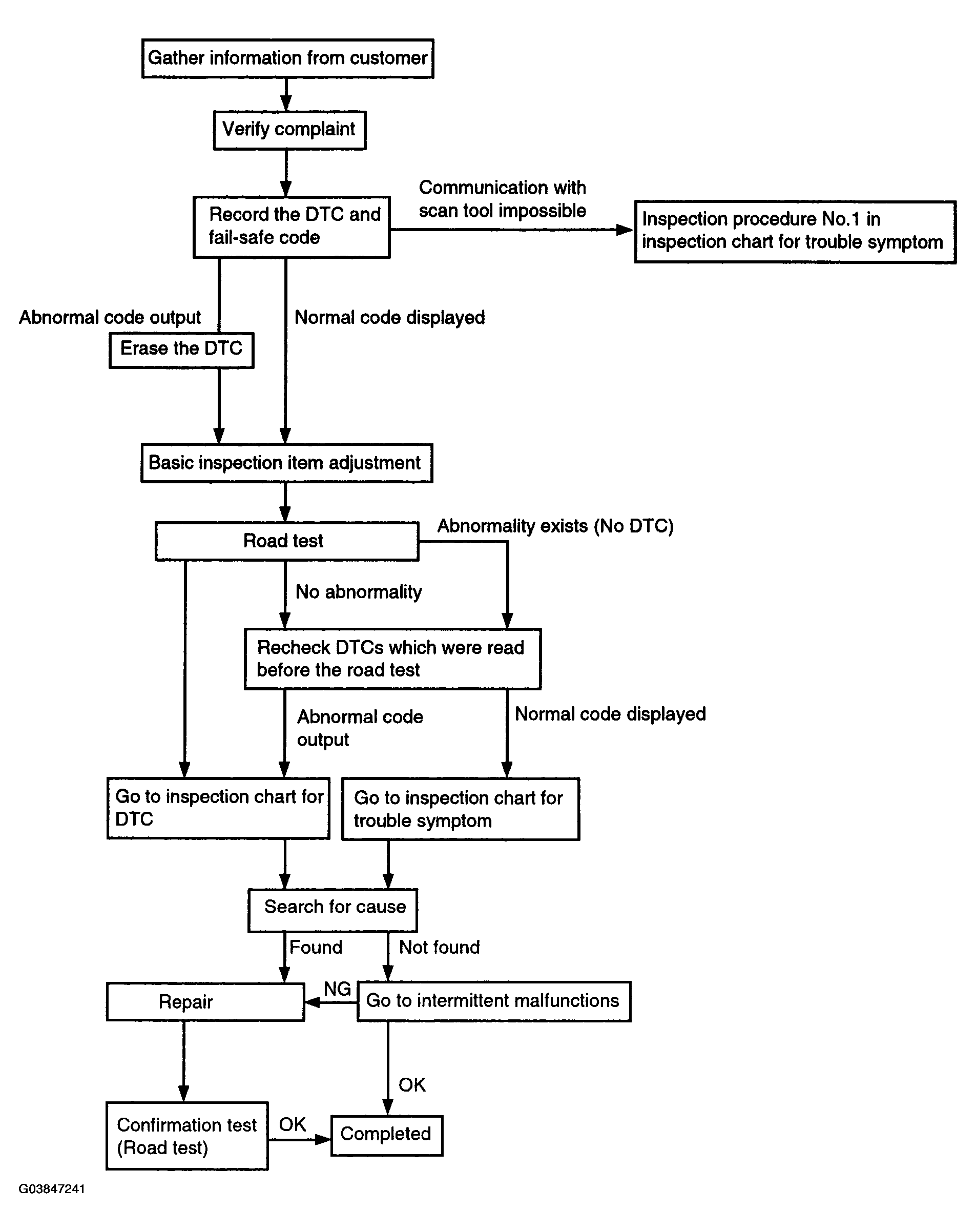

Fig 1: Automatic Transaxle System Troubleshooting Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
