Harness Inspection Procedures (Ifs)

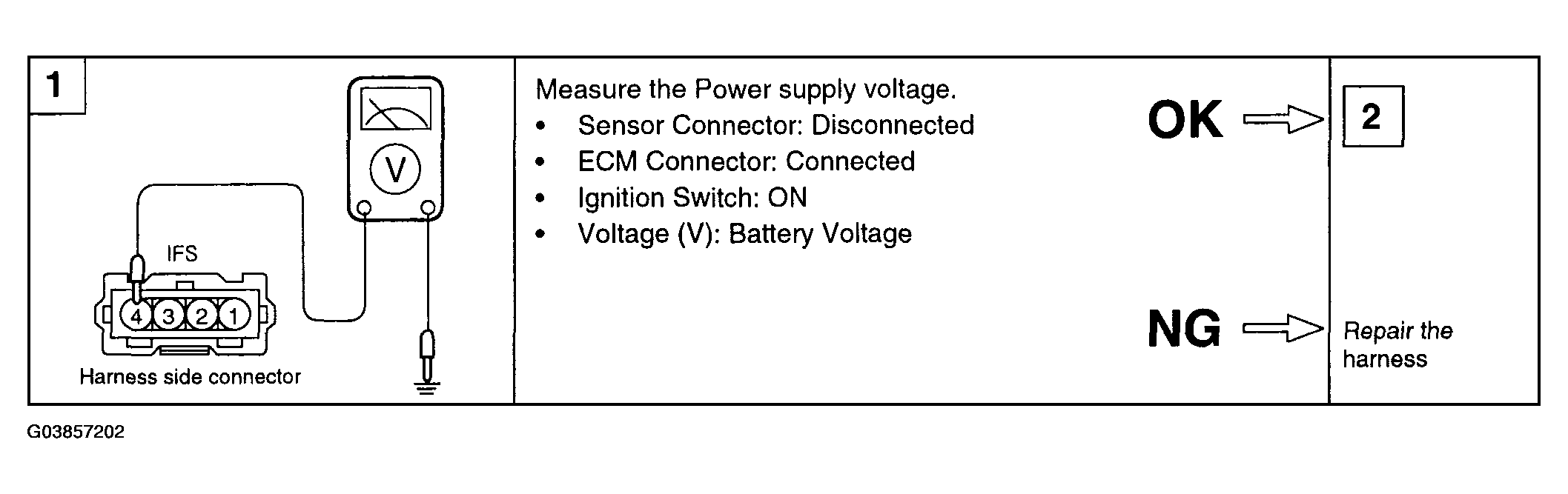

Fig 1: Measuring Sensor Supply Voltage

Courtesy of HYUNDAI MOTOR CO.

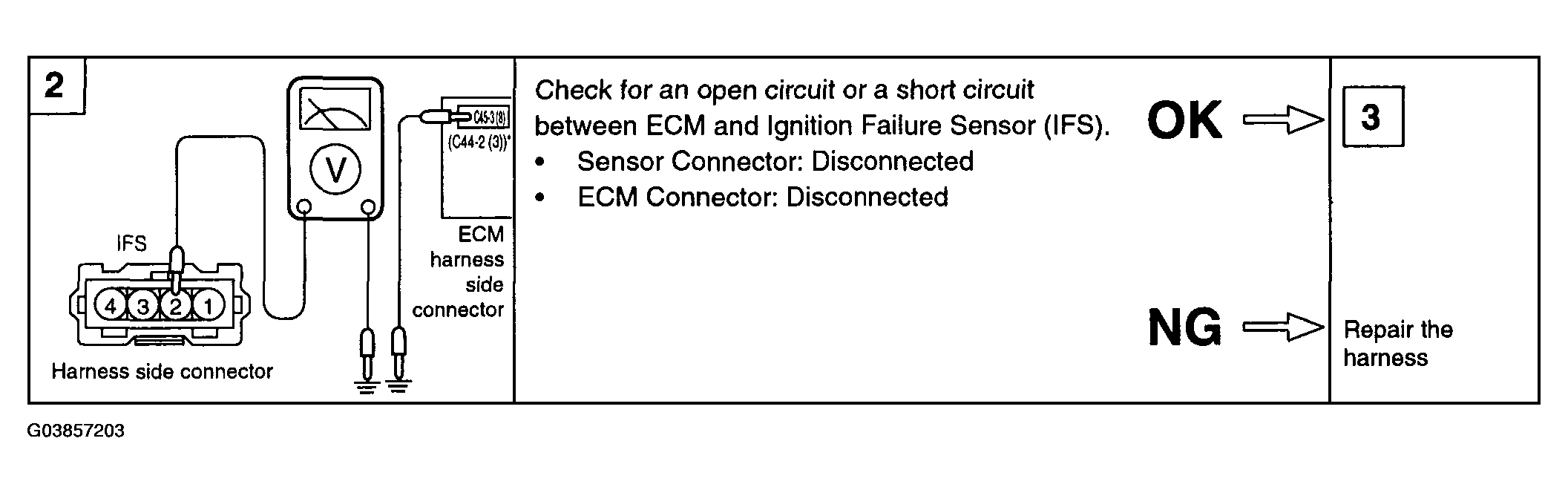

Fig 2: Checking Open Circuit Or Short Circuit Between ECM

Courtesy of HYUNDAI MOTOR CO.

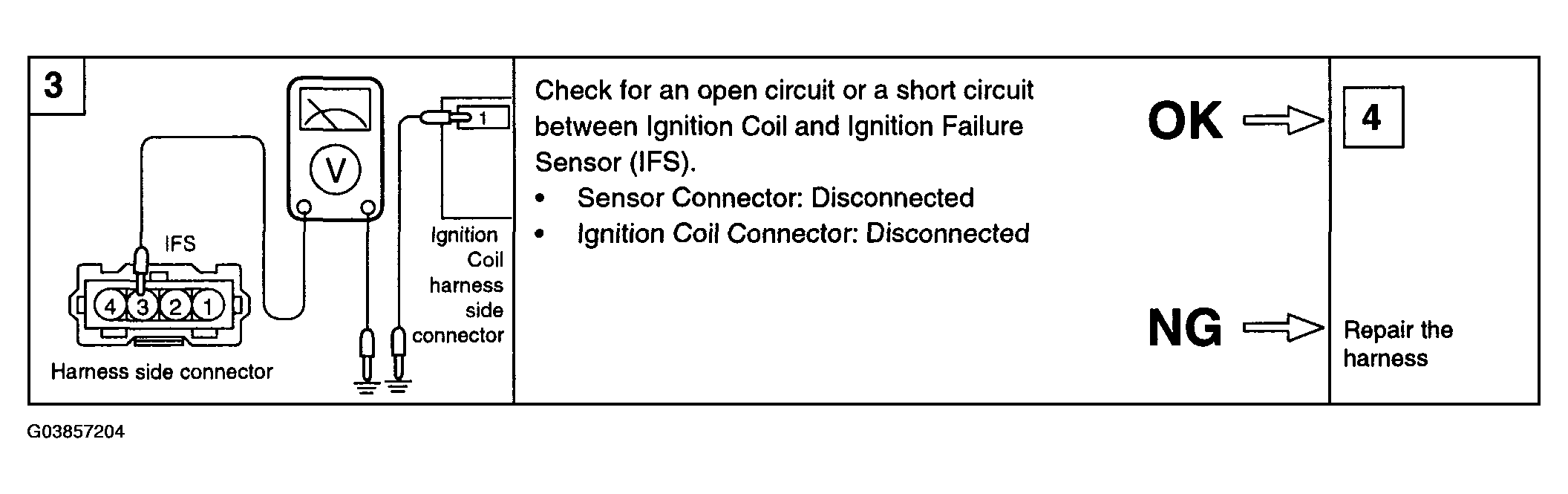

Fig 3: Checking Open Circuit Or Short Circuit Between Ignition Coil

Courtesy of HYUNDAI MOTOR CO.

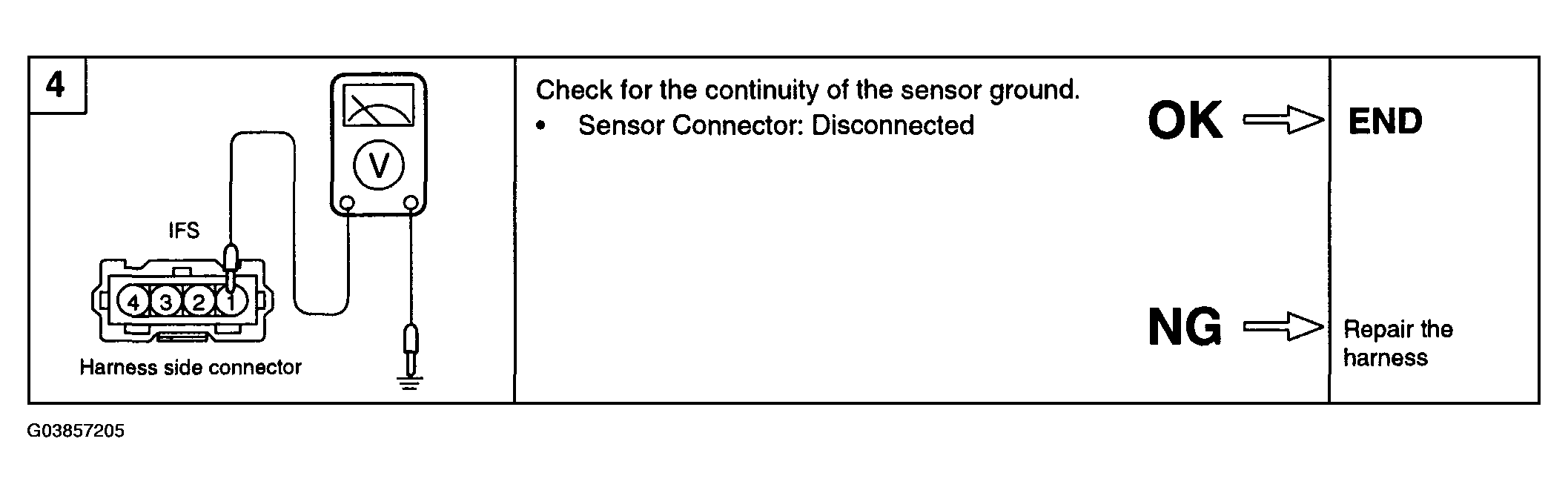

Fig 4: Checking Continuity Of Sensor Ground

Courtesy of HYUNDAI MOTOR CO.
