FixVault
Home
›
Hyundai
›
2005
›
Sonata GL, 2.4 S, Standard
›
Repair and Diagnosis
›
Transmission
›
Manual Transaxle System
›
Manual Transaxle
›
Components
Manual Transaxle: Components

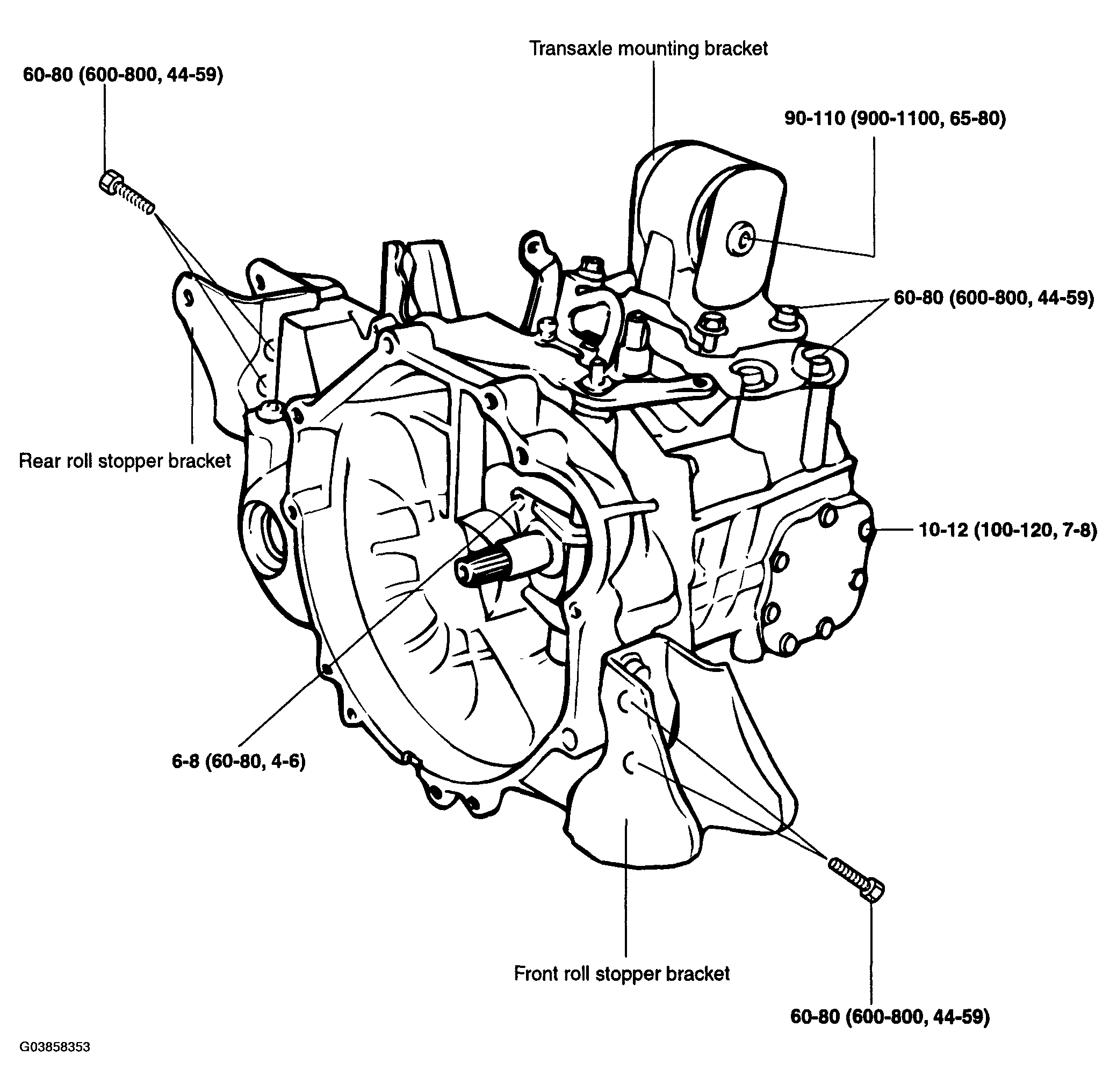

Fig 1: Manual Transaxle Replacement Components With Torque Specs
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
