Using Hi-Scan(Pro)

  1. To register transmitter code, first connect keyless adapter (09900-21300) to DLC (Data Link Connector) cable of hi-scan as shown in Fig 1 .

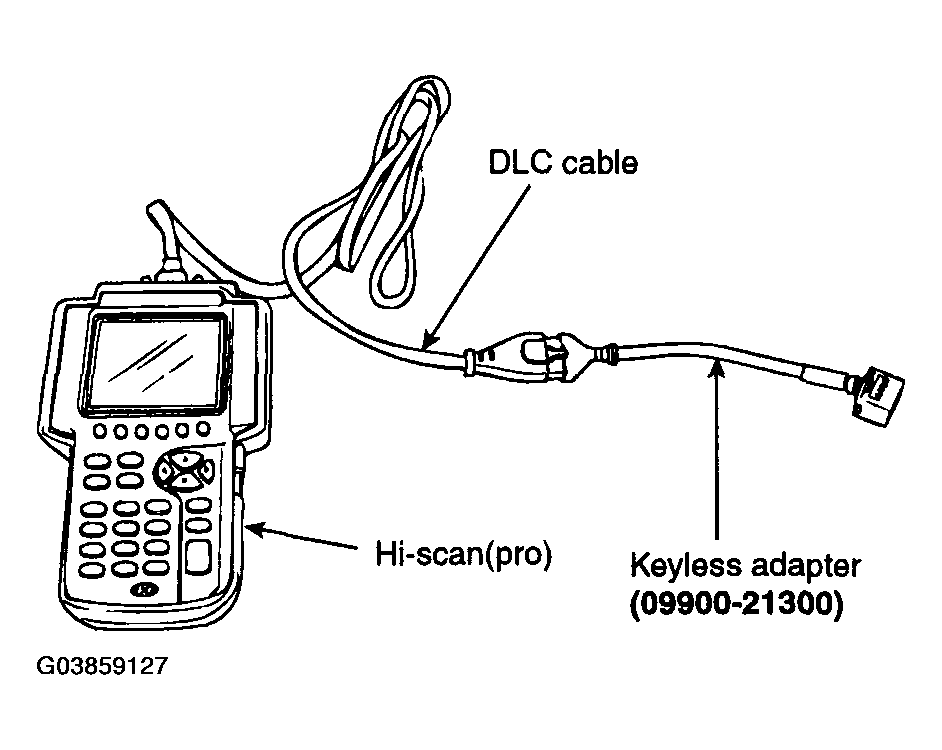

    Fig 1: Connecting Keyless Adapter To DLC Cable Of Hi-Scan
    G03859127Courtesy of HYUNDAI MOTOR CO.
  2. After connecting keyless adapter(A) to the multi purpose check connector (10pins) beside data link connector in driver side crash pad lower panel, turn the power on hi-scan.

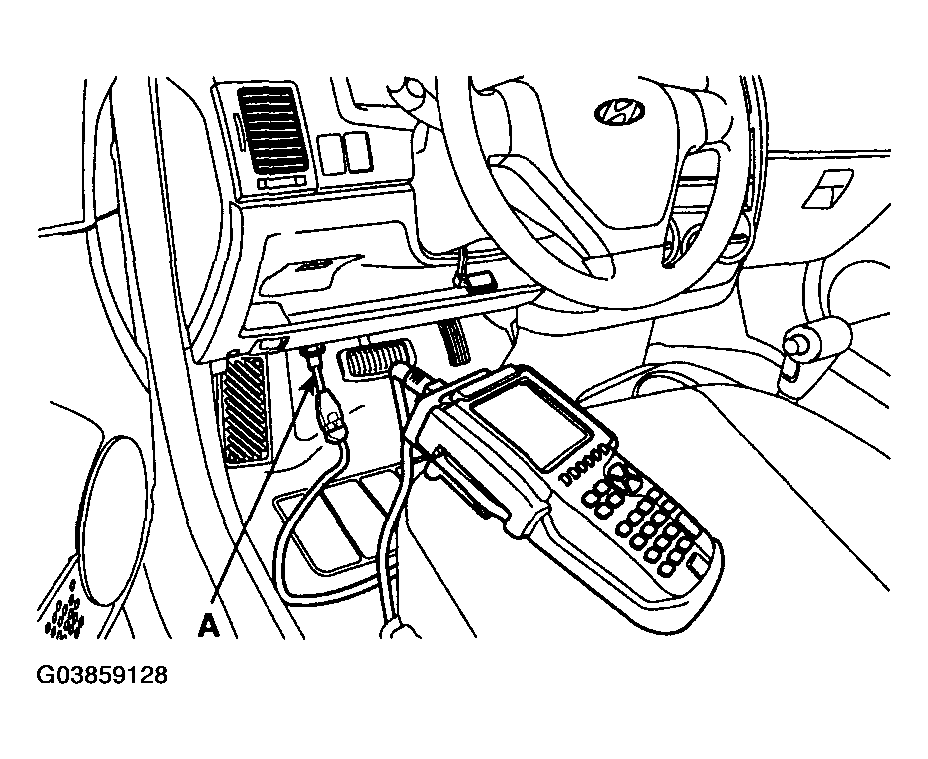

    Fig 2: Connecting Hi-Scan To Data Link Connector
    G03859128Courtesy of HYUNDAI MOTOR CO.
  3. Select the vehicle model and then do "CODE SAVING".
    Fig 3: Code Saving Display
    G03859129Courtesy of HYUNDAI MOTOR CO.
  4. After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown in Fig 4 .

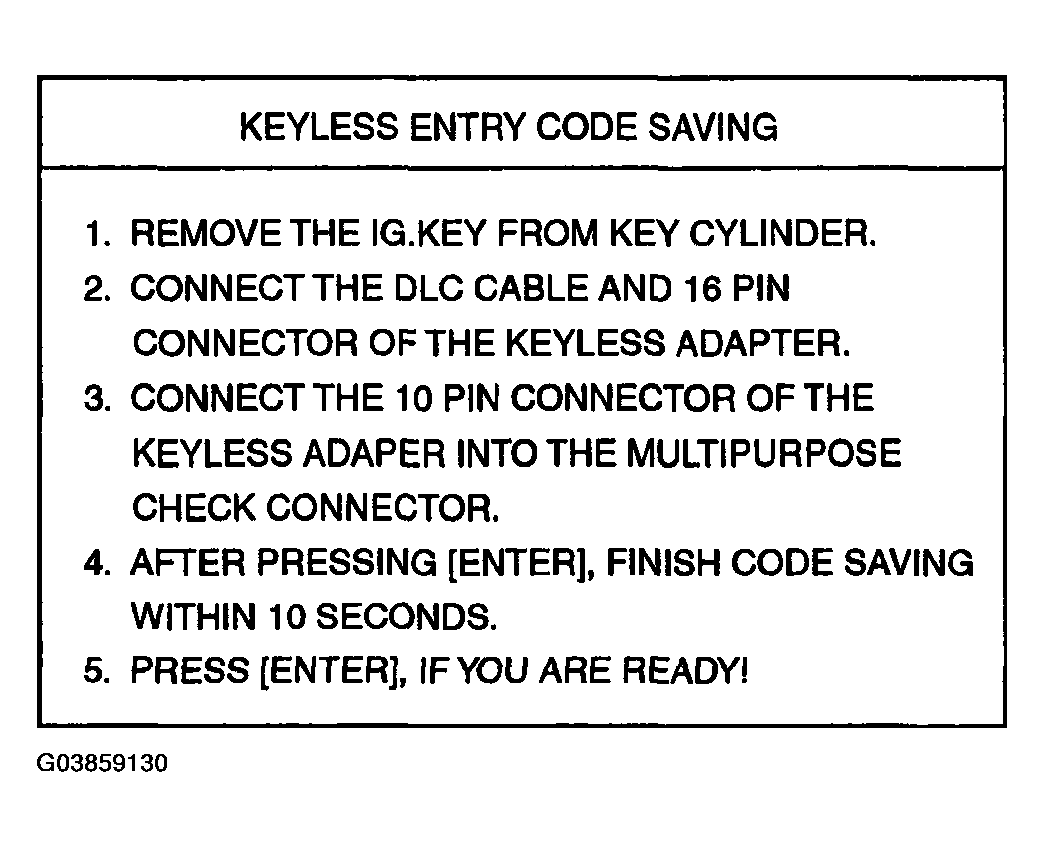

    Fig 4: Keyless Entry Code Saving Display (1 Of 2)
    G03859130Courtesy of HYUNDAI MOTOR CO.
  5. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving.

    Follow steps 1 to 3 and then code saving is completed.

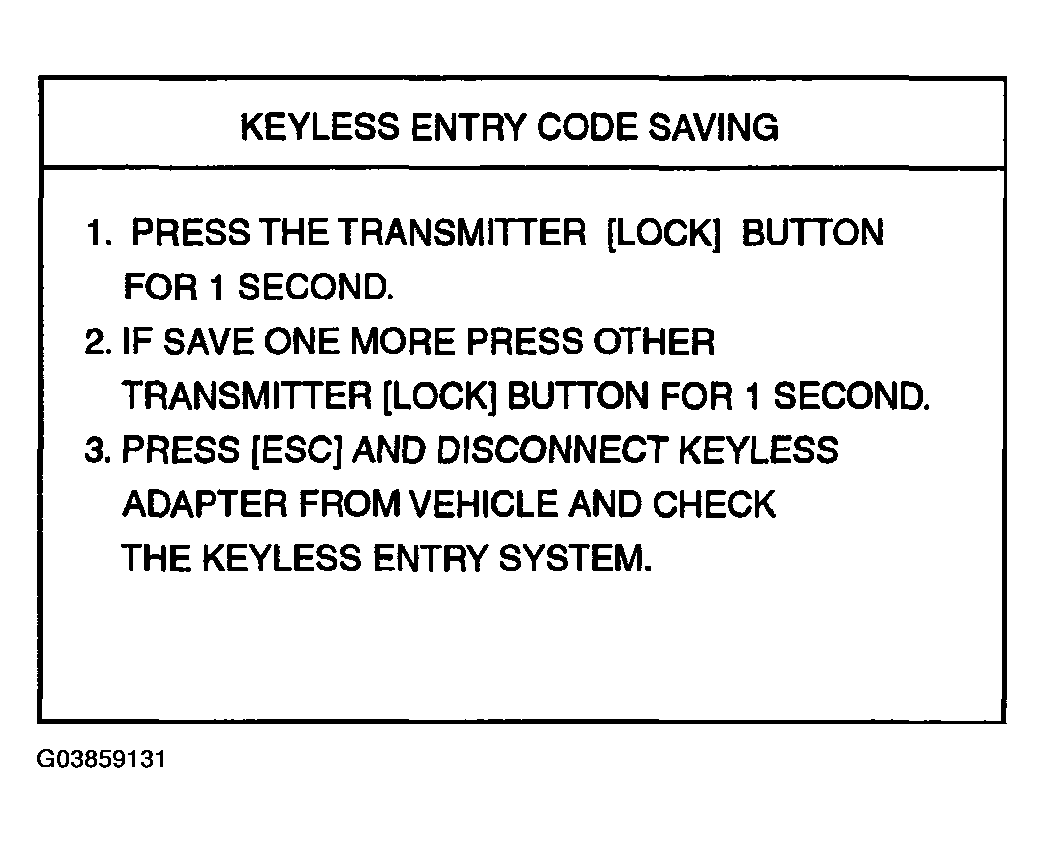

    Fig 5: Keyless Entry Code Saving Display (2 Of 2)
    G03859131Courtesy of HYUNDAI MOTOR CO.
  6. Disconnect keyless adapter (09900-21300) from DLC cable and then proceed to self-diagnosis with DLC cable connected.
