Pin Connection

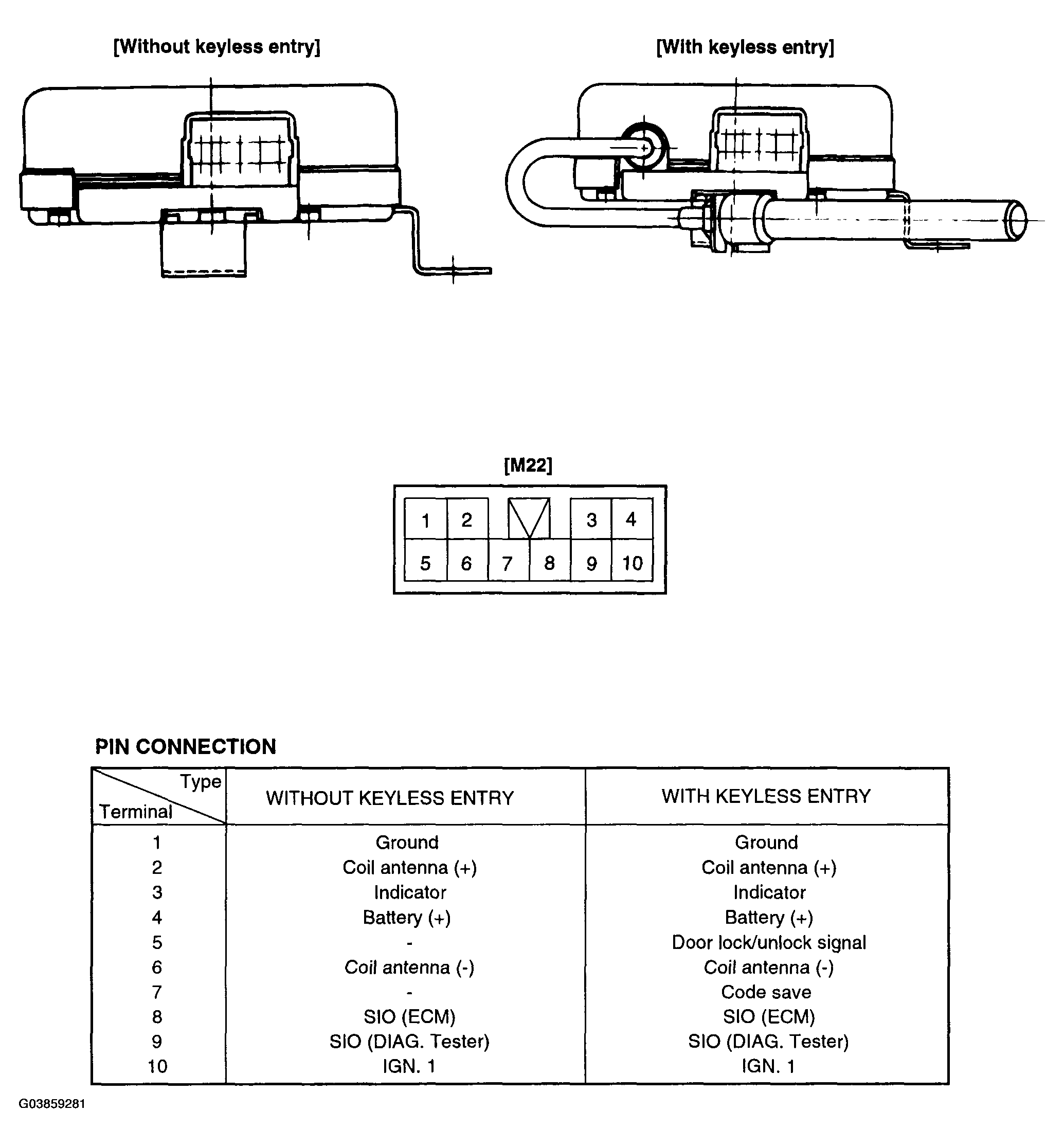

Fig 1: Identifying Immobilizer Control Module Connector Terminals
G03859281Courtesy of HYUNDAI MOTOR CO.
