2.7 V6 Engine: Stator

Check the coil for grounding. Check to make sure that there is no continuity between the coil(A) and bracket(B). If there is continuity, replace the generator.

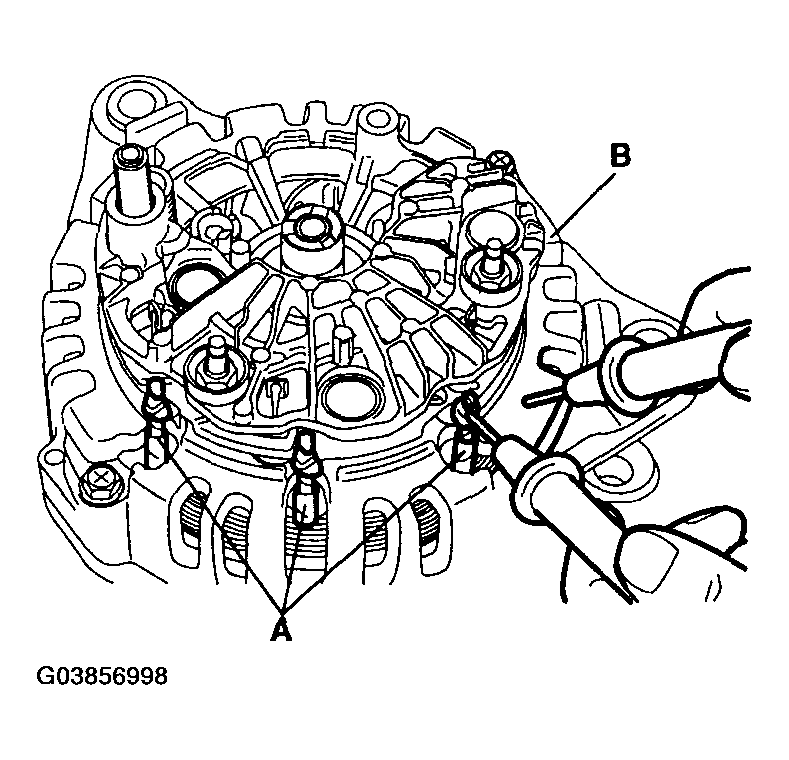

Fig 1: Checking Stator
G03856998Courtesy of HYUNDAI MOTOR CO.
