Home › Hyundai › 2005 › Sonata GLS › Repair and Diagnosis › Electrical › Starter › Starting System › Starter › Components

Starting System: Starter: Components

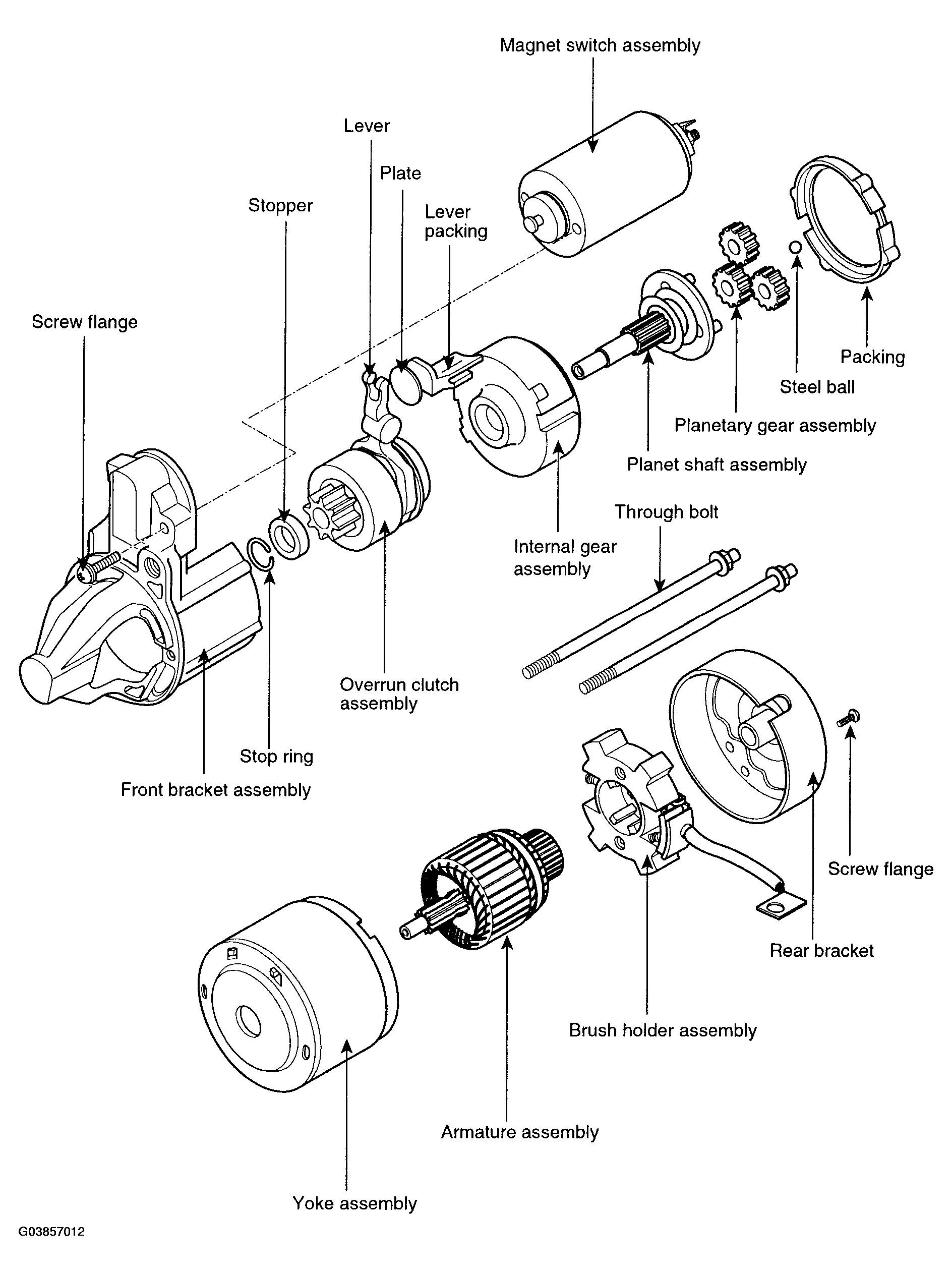

Fig 1: Identifying Starter Components
G03857012Courtesy of HYUNDAI MOTOR CO.
