Evaporative Emission Control System: Components

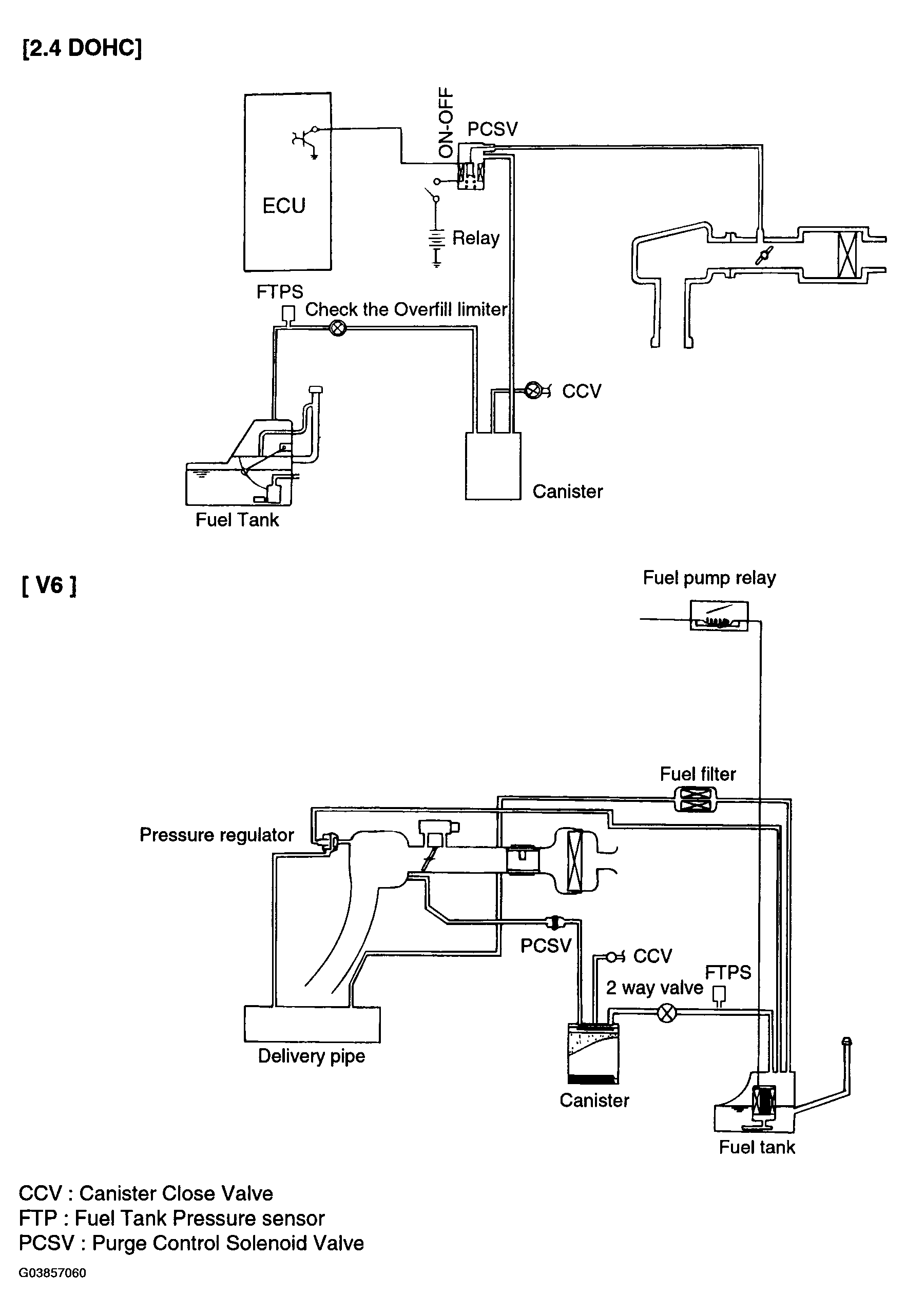

Fig 1: Identifying Evaporative Emission Control System Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
