Emission Control Components Location: Notes

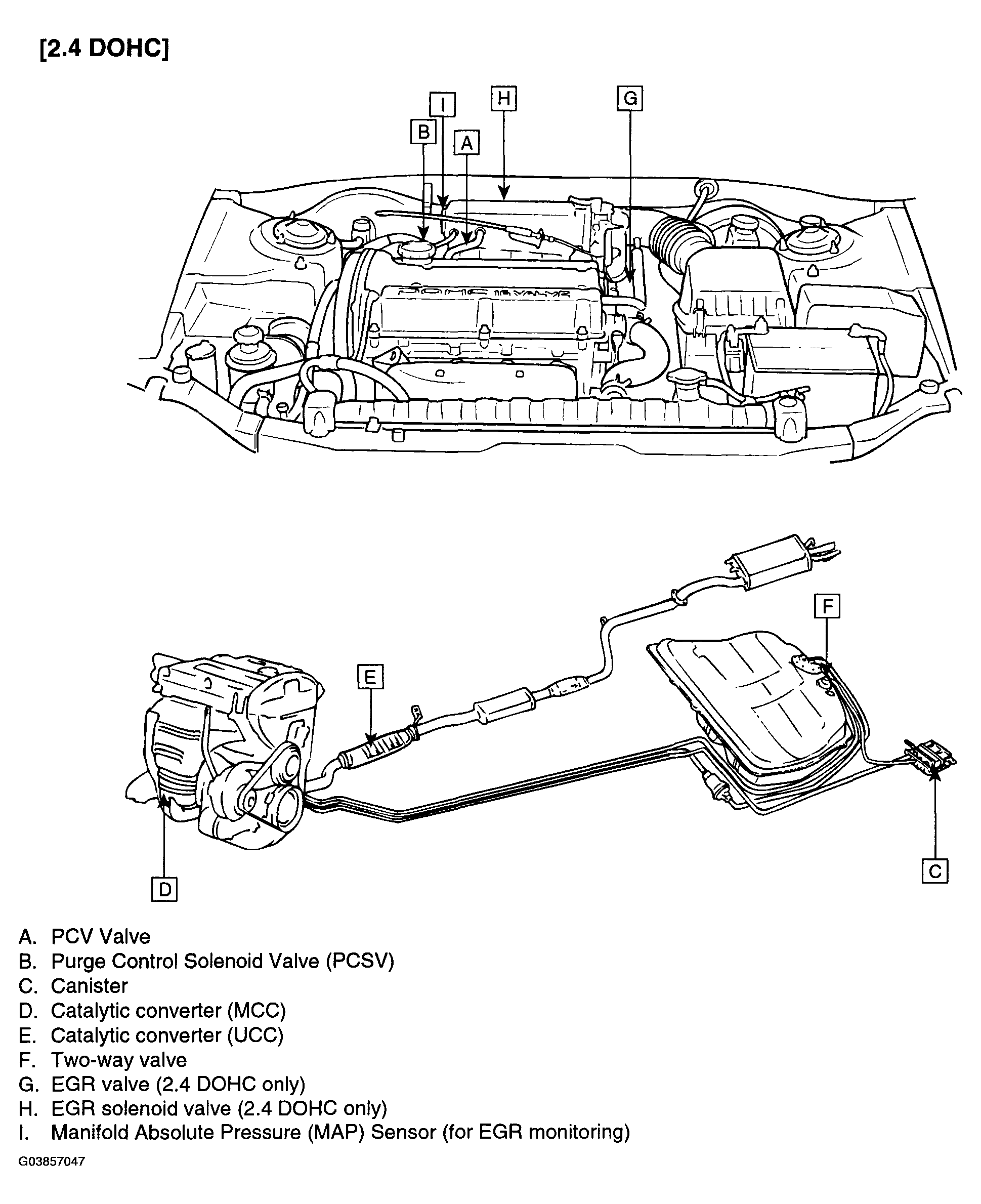

Fig 1: Locating Emission Control Components - 2.4L (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

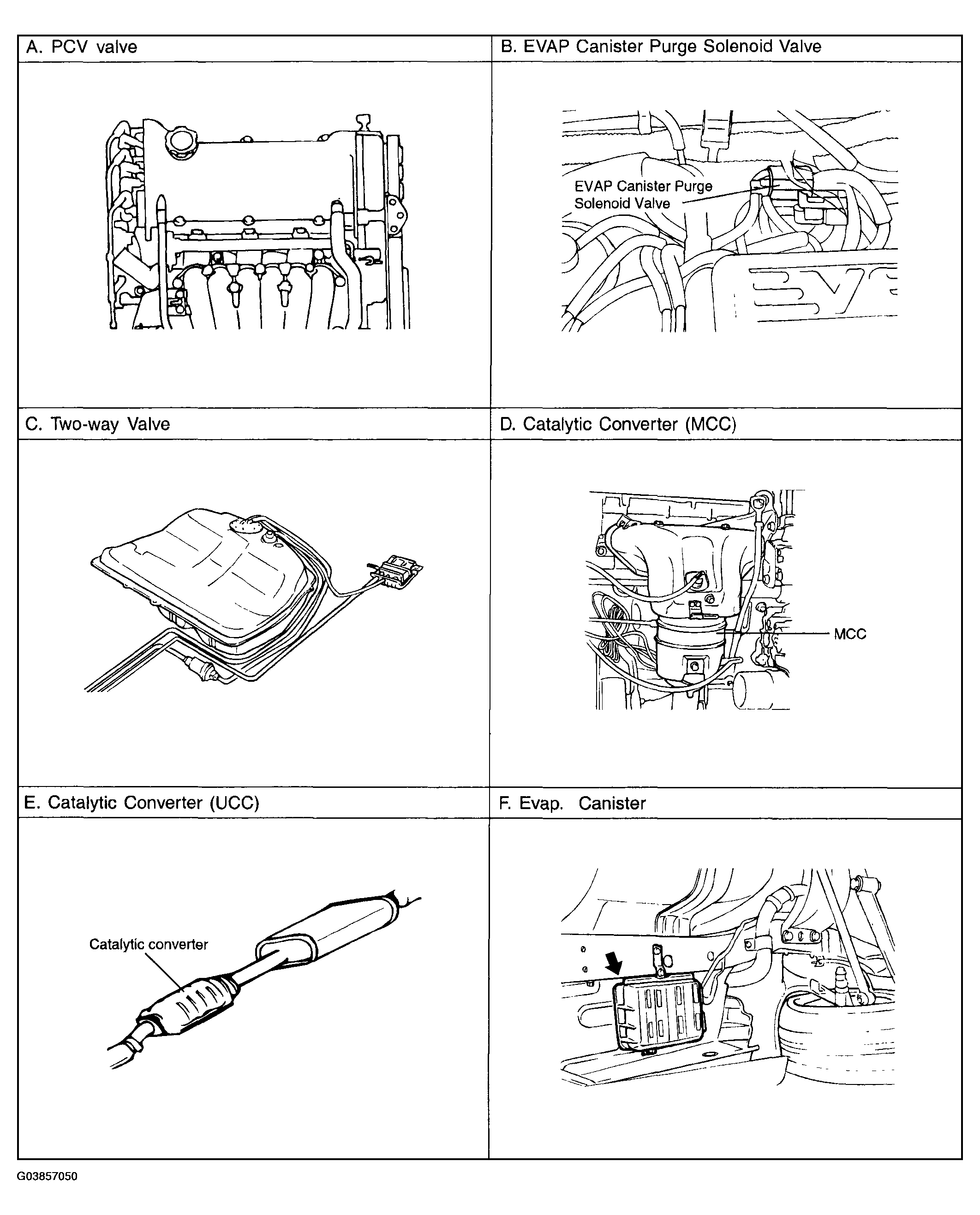

Fig 2: Locating Emission Control Components - 2.4L (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.

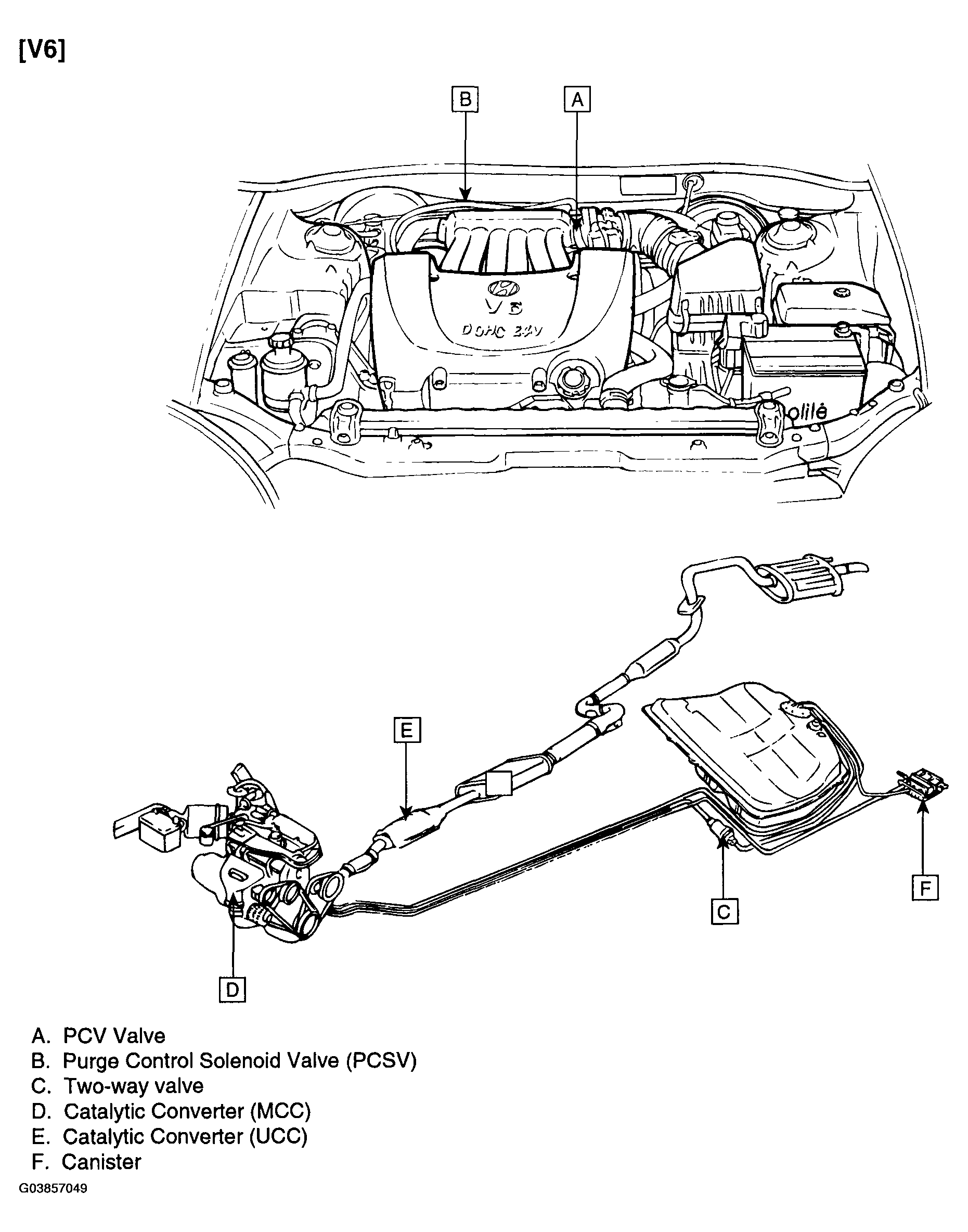

Fig 3: Identifying Emission Control Components Location - 2.7L (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

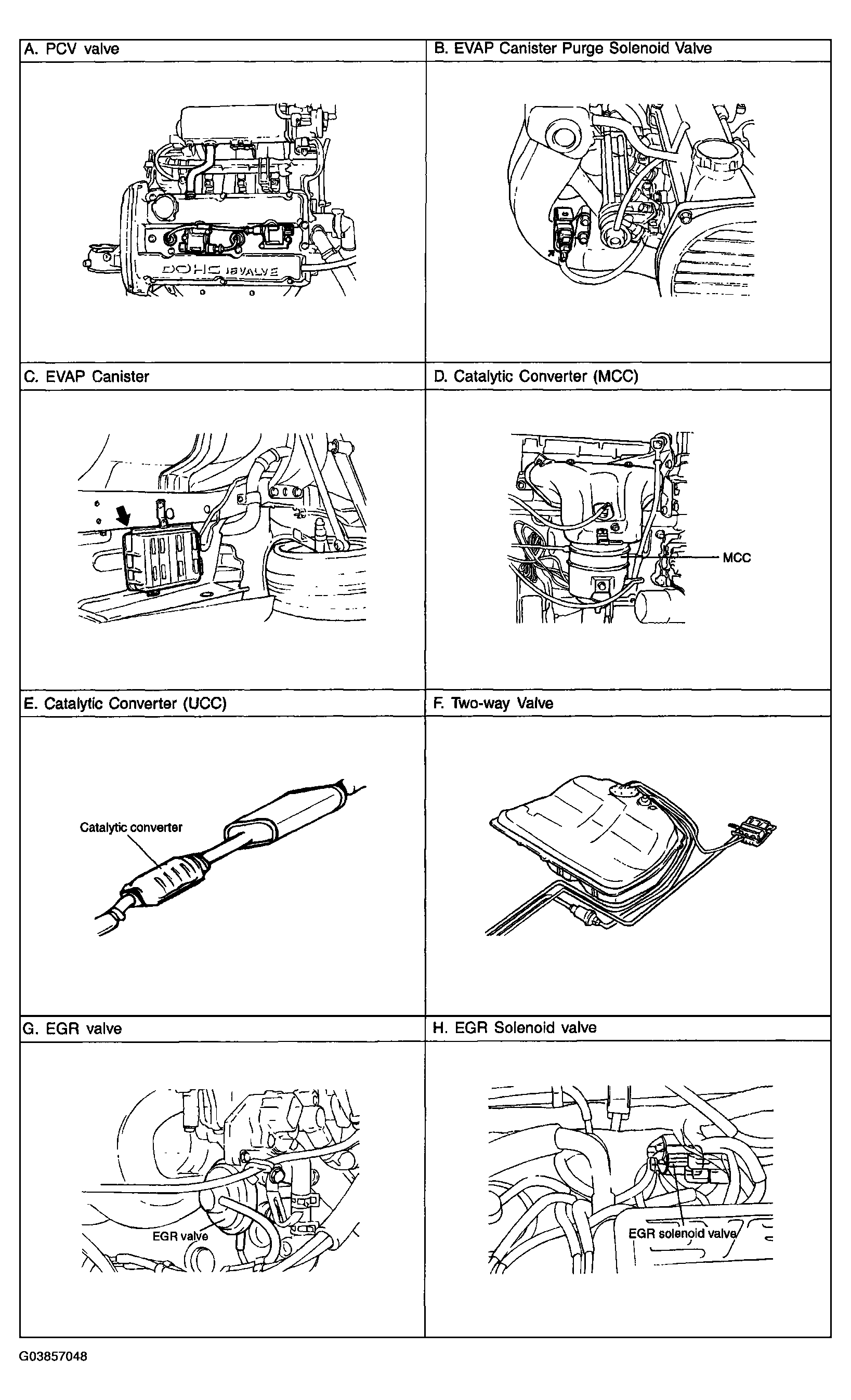

Fig 4: Identifying Emission Control Components Location - 2.7L (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
