The Micro 570 Analyzer : Notes

The MICRO 570 Analyzer provides the ability to test the charging and starting systems, including the battery, starter and alternator.

CAUTION: Because of the possibility of personal injury, always use extreme caution and appropriate eye protection when working with batteries.

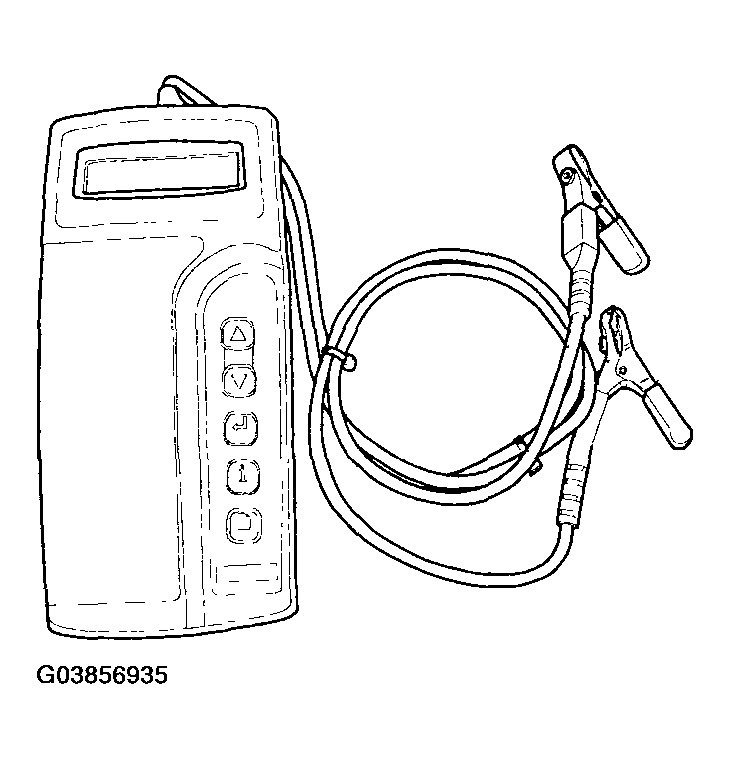

Fig 1: Identifying MICRO 570 Analyzer

Courtesy of HYUNDAI MOTOR CO.

KEYPAD

The MICRO570 button on the key pad provide the following functions :

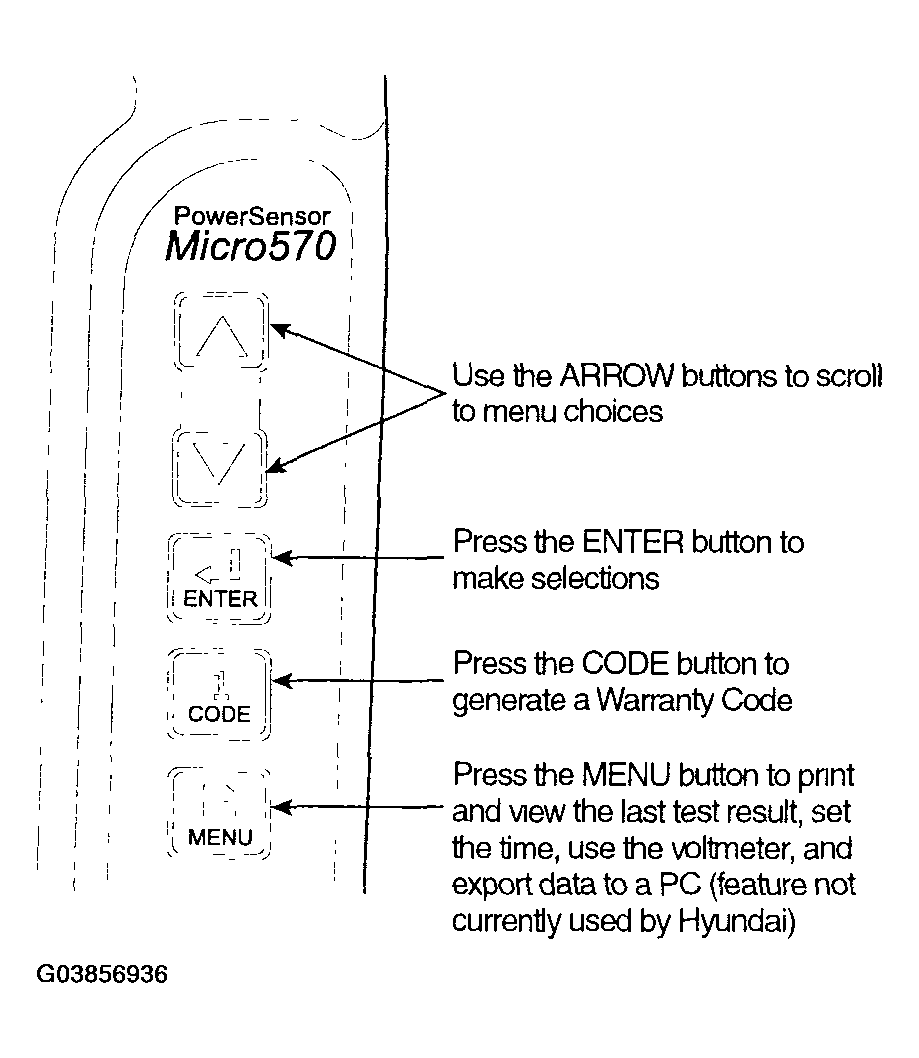

Fig 2: Identifying MICRO 570 Analyzer Key Pad

Courtesy of HYUNDAI MOTOR CO.
