Checking Compression Pressure
WARNING: This page is about a different variant/trim than selected.
- Before checking engine compression, check the engine oil level. Also check that the starter motor and battery are all in normal operating condition.
- Start the engine and wait until the engine coolant temperature reaches 80-95°C (176-205°F).
- Turn off the engine and disconnect the spark plug cables.
- Remove the spark plugs.
- Crank the engine to remove any foreign material in the cylinders.

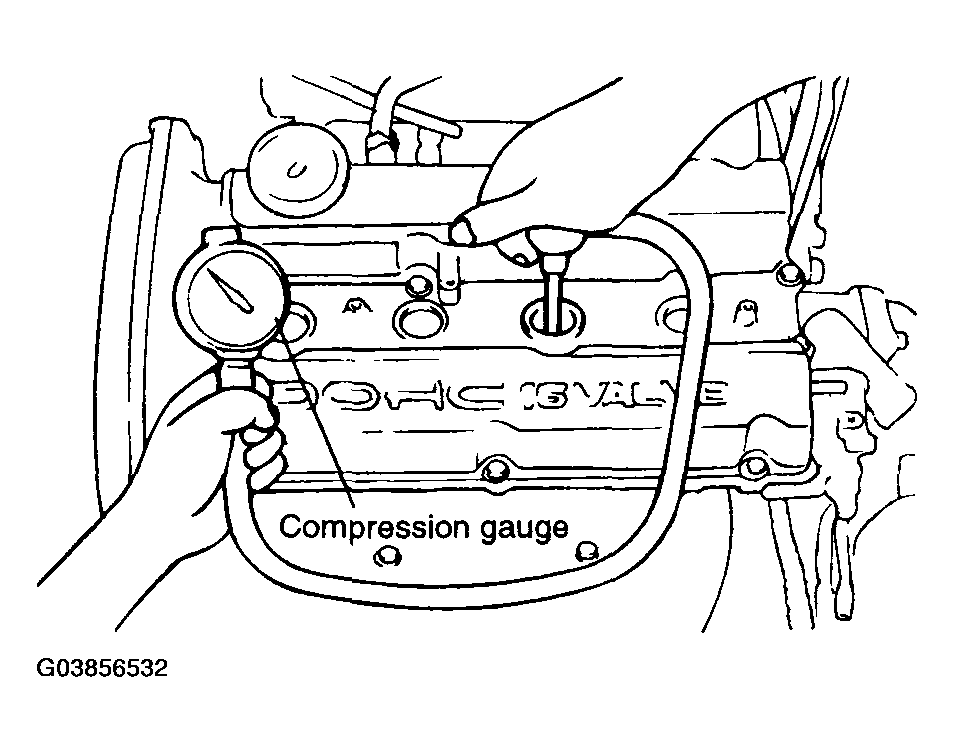

- Insert the compression gauge into the spark plug hole.
- Depress the accelerator pedal to open the throttle fully.
- Crank the engine and read the gauge.
Standard value : 1200kpa (12.2Kg / cm2 , 170 psi)
- Repeat steps 6 to 8 for all cylinders, ensuring that the pressure difference for each of the cylinders is within the specified limit.
Limit
Max. 100 kPa (1.0 kg / cm2 , 14 psi) between cylinder
- If a cylinder's compression or pressure differential is outside the specification, add a small amount of oil through the spark plug hole, and repeat steps 6 to 9.
- If the addition of oil causes the compression to rise, it is likely that there may be wear between the piston ring and cylinder wall.
- If compression remains the same, valve seizure, poor valve seating or a compression leak from the cylinder head gasket are all possible causes.
Tightening torque
Spark plug : 20 ~ 30 Nm (200 ~ 300 kg.cm, 14 ~ 22 lb.ft)
