Automatic Transaxle Shift Control: Components

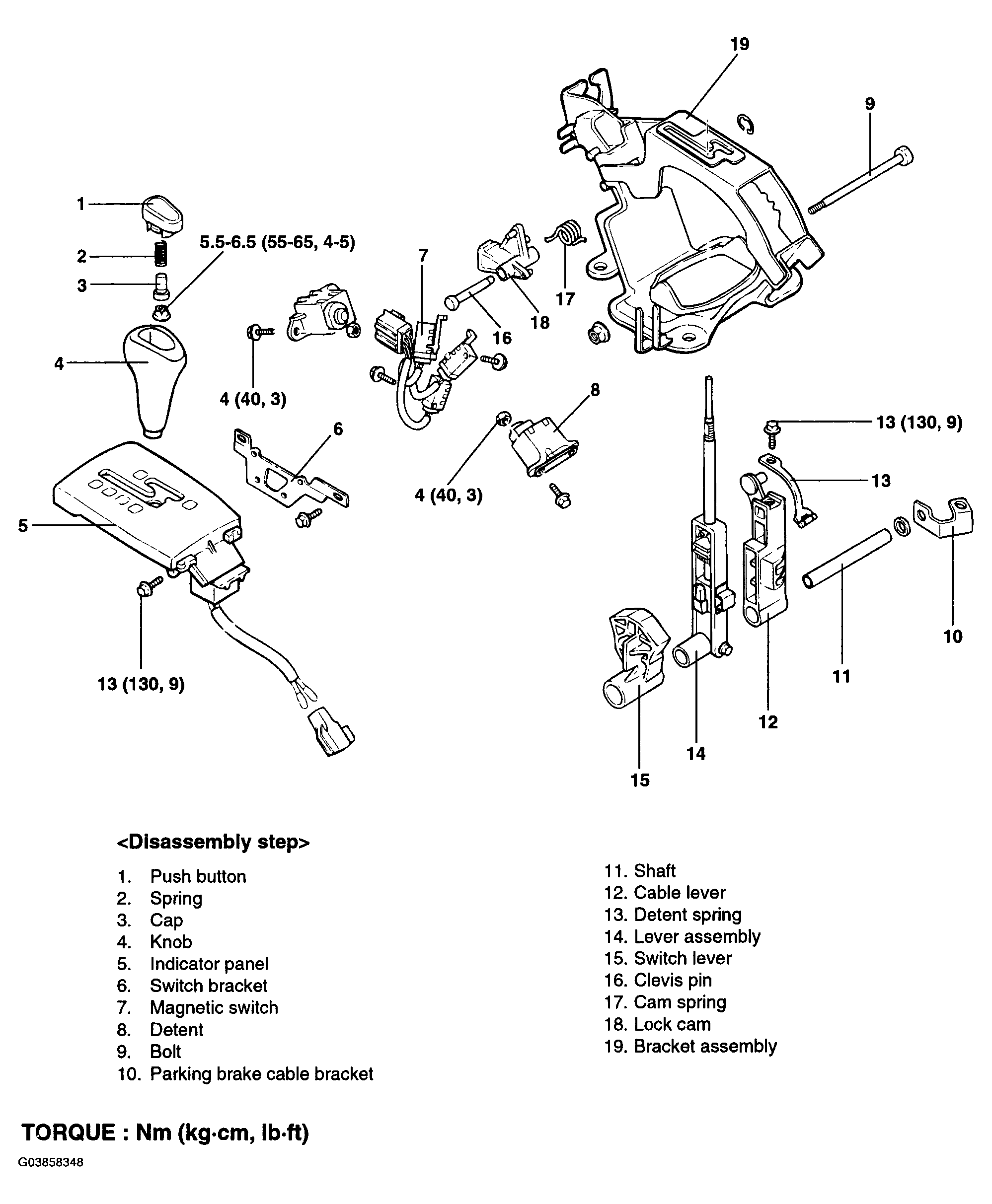

Fig 1: Identifying Automatic Transaxle Shift Control Components
G03858348Courtesy of HYUNDAI MOTOR CO.
