Anti-Lock Braking System Wheel Speed Sensor: Components

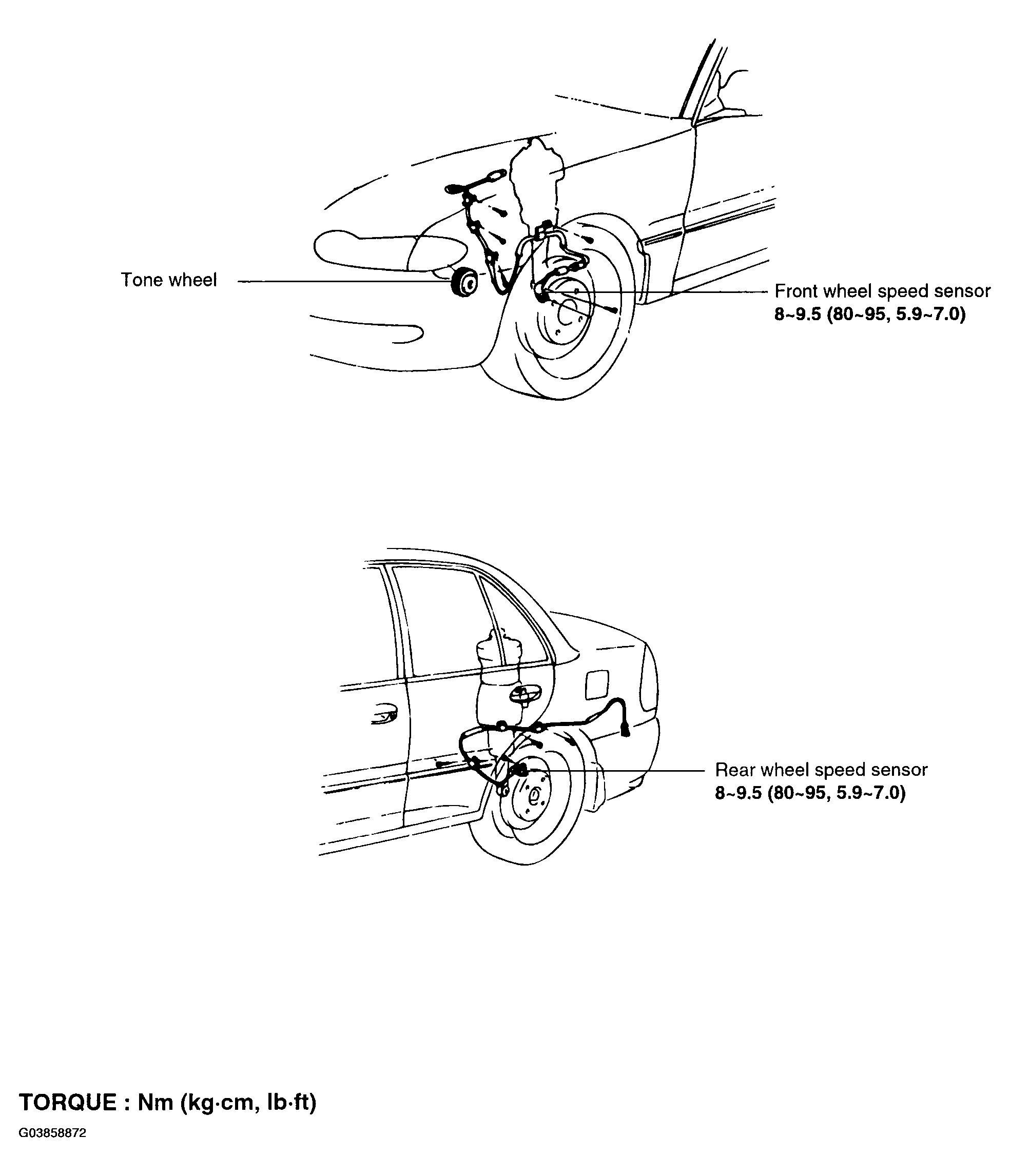

Fig 1: Front/Rear ABS Wheel Speed Sensor Torque Specifications
G03858872Courtesy of HYUNDAI MOTOR CO.
