Charging System: Generator: Components: V6

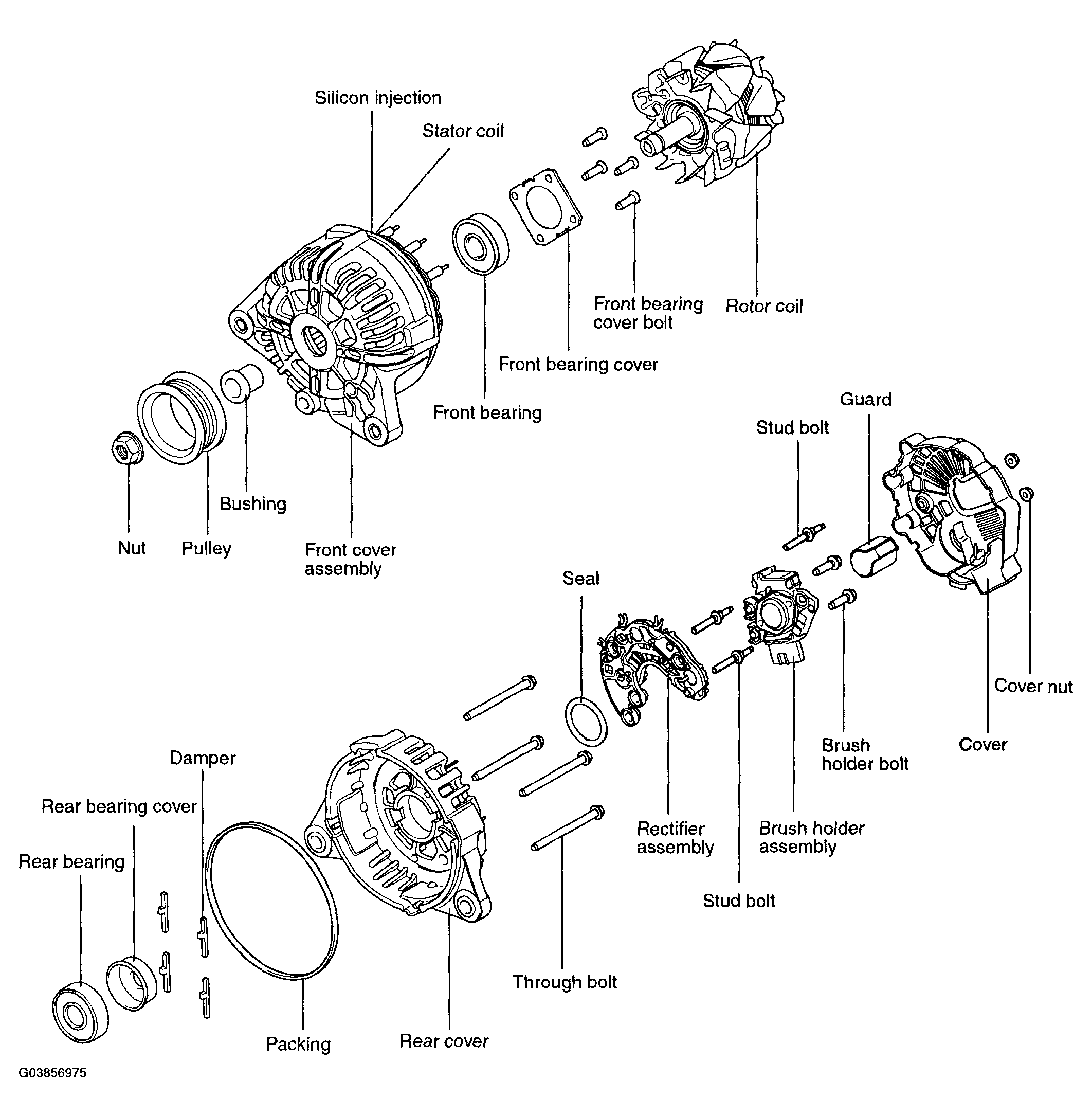

Fig 1: Identifying Generator Components (V6 Engine)
G03856975Courtesy of HYUNDAI MOTOR CO.
