Harness Inspection Procedures

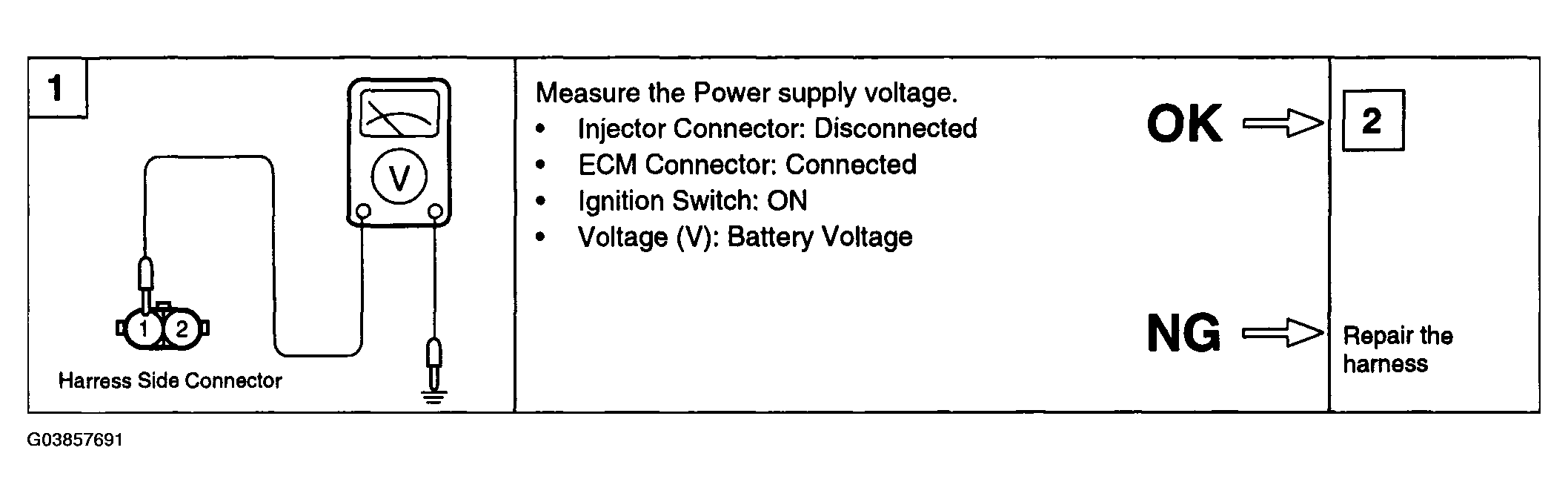

Fig 1: Measuring Voltage Between Injector Terminal 1 And Body Ground
G03857691Courtesy of HYUNDAI MOTOR CO.

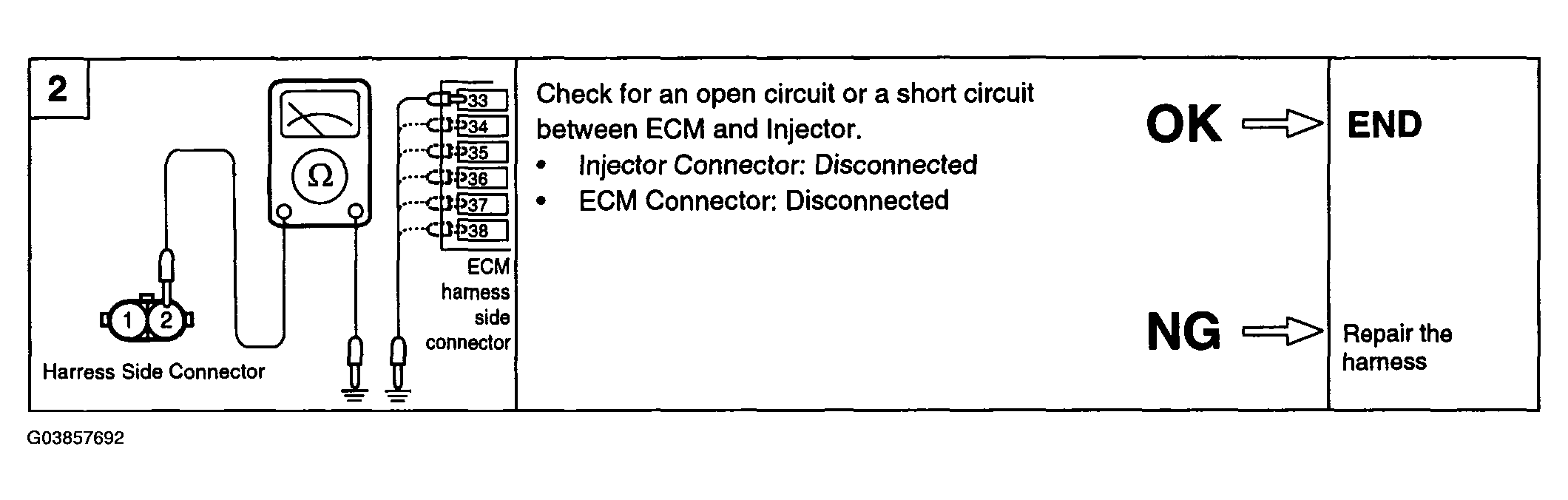

Fig 2: Measuring Resistance Between Injector Terminal 2 And Body Ground
G03857692Courtesy of HYUNDAI MOTOR CO.
