Knock Sensor (KS)
›
Knock Sensor
›
Troubleshooting Procedures
Troubleshooting Procedures

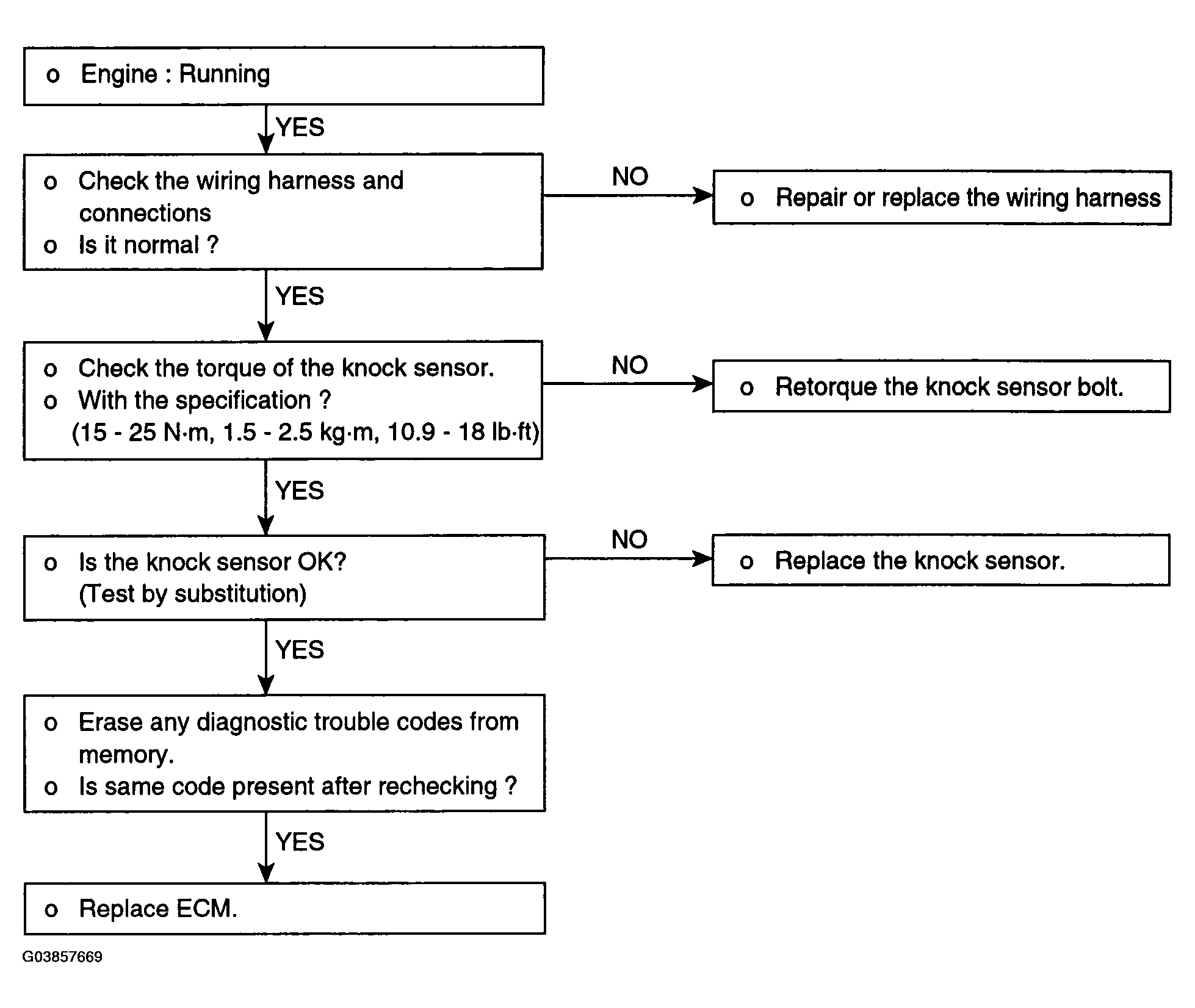

Fig 1: Knock Sensor Troubleshooting Procedures Chart
Courtesy of HYUNDAI MOTOR CO.
