Special Service Tools

SPECIAL SERVICE TOOLS

Tool (Number and name) Illustration Application
09353-24100
Fuel Pressure Gauge
G03857595Courtesy of HYUNDAI MOTOR CO.
 Measuring the fuel line pressure

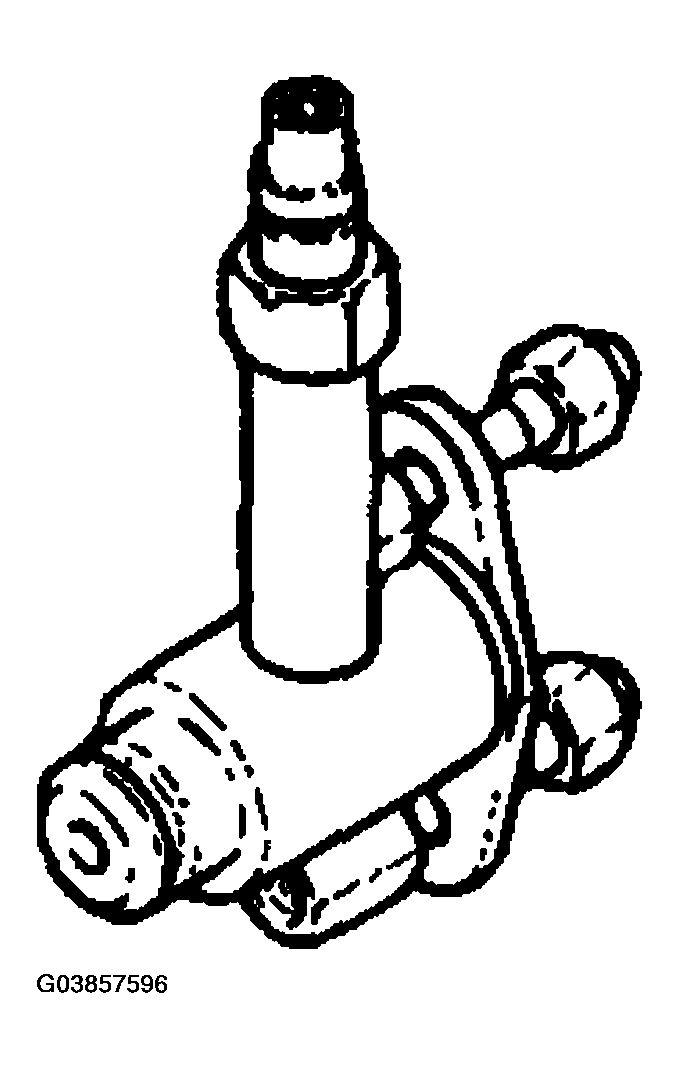

09353-38000
Fuel Pressure Gauge Adapter
G03857596Courtesy of HYUNDAI MOTOR CO.
 Connection between the delivery pipe and fuel feed line
09353-24000
Fuel Pressure Gauge Connector
G03857597Courtesy of HYUNDAI MOTOR CO.
 Connection between Fuel Pressure Gauge (09353-24100) and Fuel Pressure Gauge Adapter (09353-38000)
