Automatic Transaxle Hydraulic Circuit: First

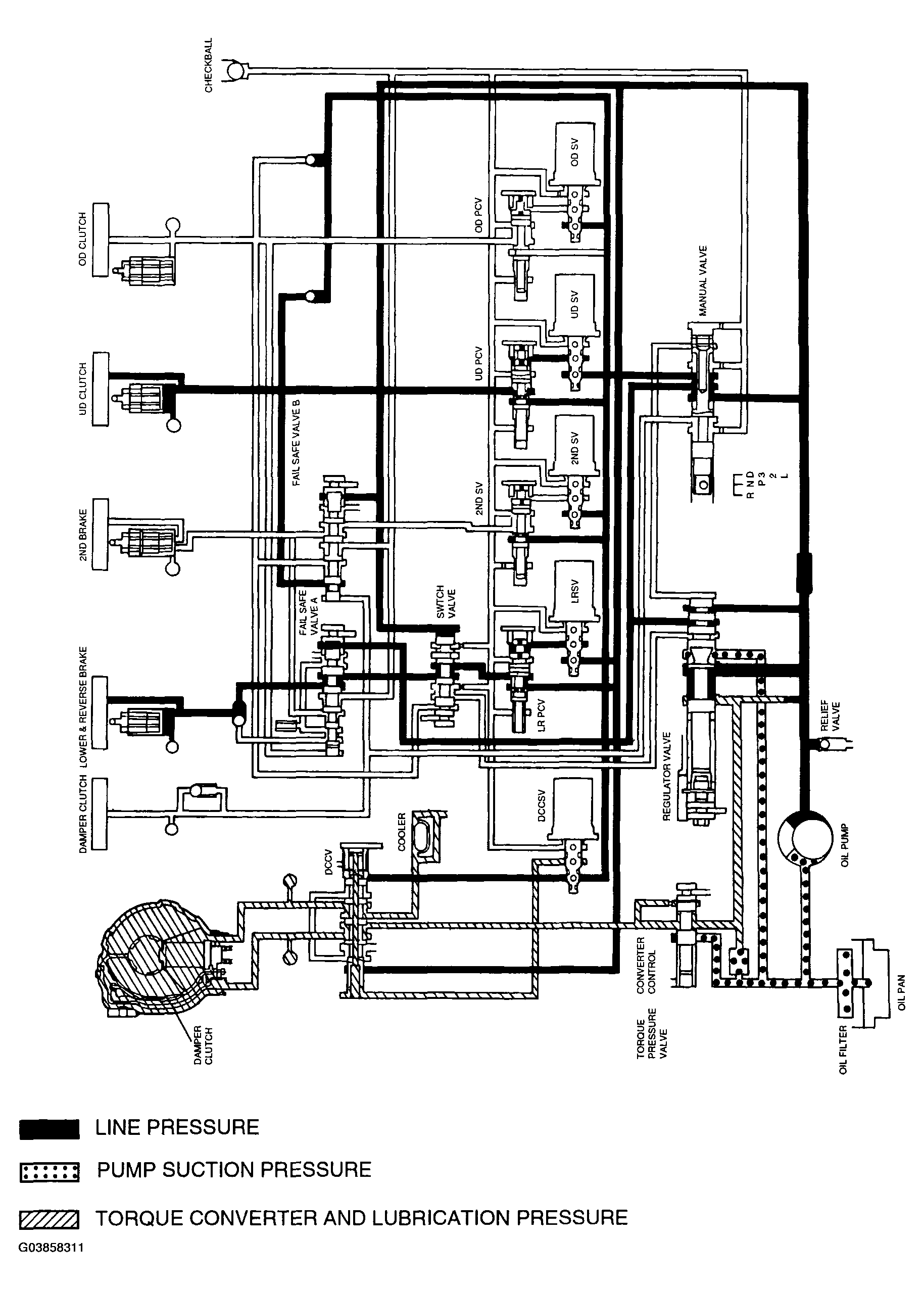

Fig 1: Automatic Transaxle Hydraulic Circuit Diagram (First)
G03858311Courtesy of HYUNDAI MOTOR CO.
