Brake Switch Test

  1. Disconnect the connector from the brake switch.

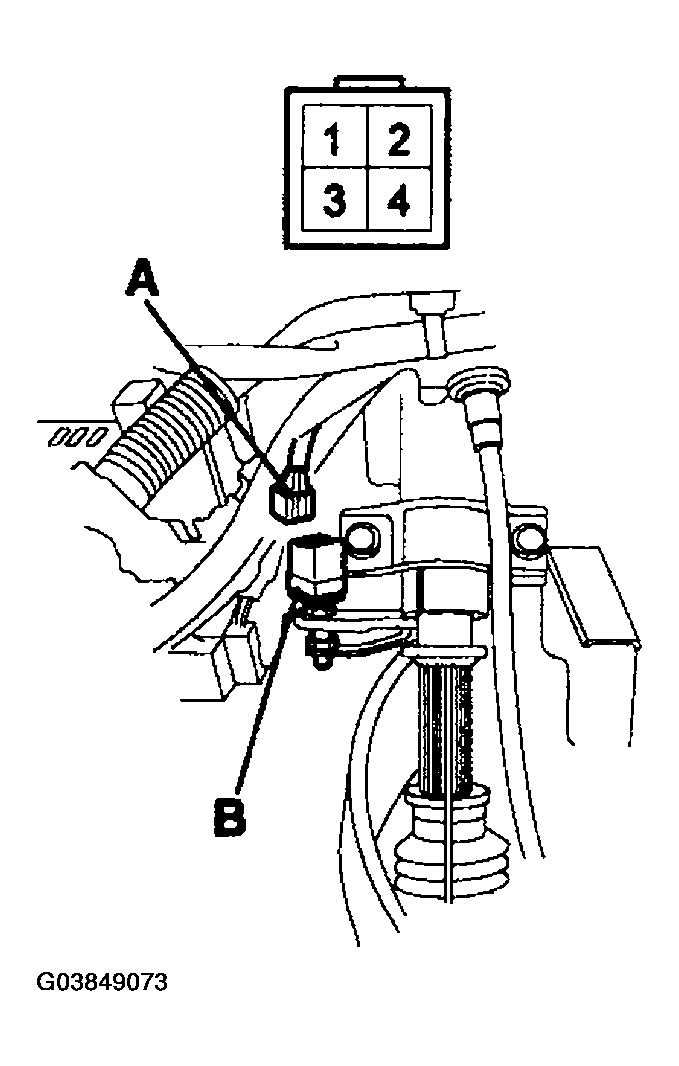

    2. Fig 1: Disconnecting Connector From Brake Switch
    G03849073Courtesy of HYUNDAI MOTOR CO.
  2. Remove the brake switch.
  3. Check for continuity between the terminals according to the table.
    Fig 2: Continuity Condition Chart
    G03849074Courtesy of HYUNDAI MOTOR CO.
  4. If necessary, replace the switch or adjust the pedal height.
