Immobilizer Control System: Components

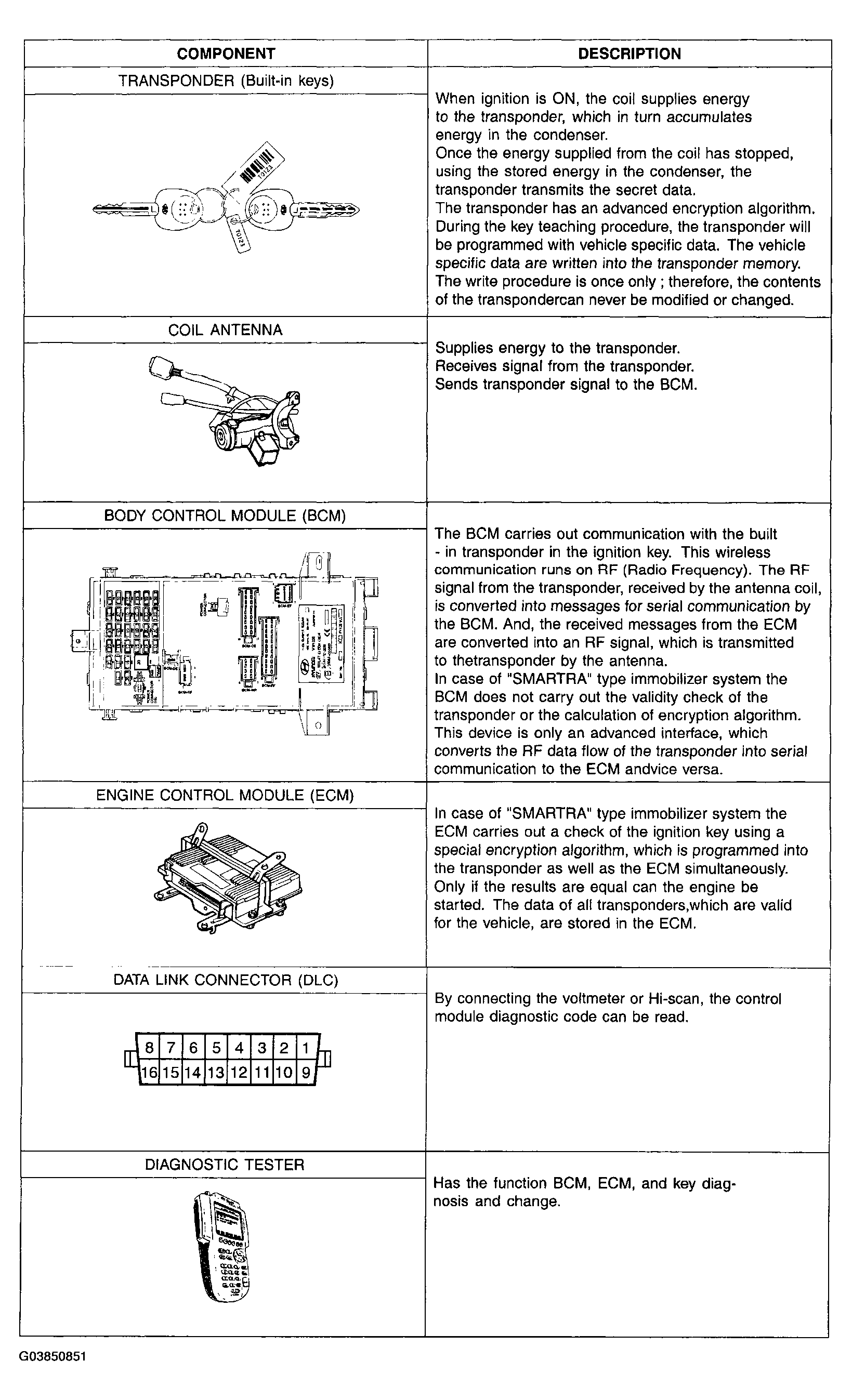

Fig 1: Immobilizer Control System Components Description Chart
G03850851Courtesy of HYUNDAI MOTOR CO.
