Front Seat: Components

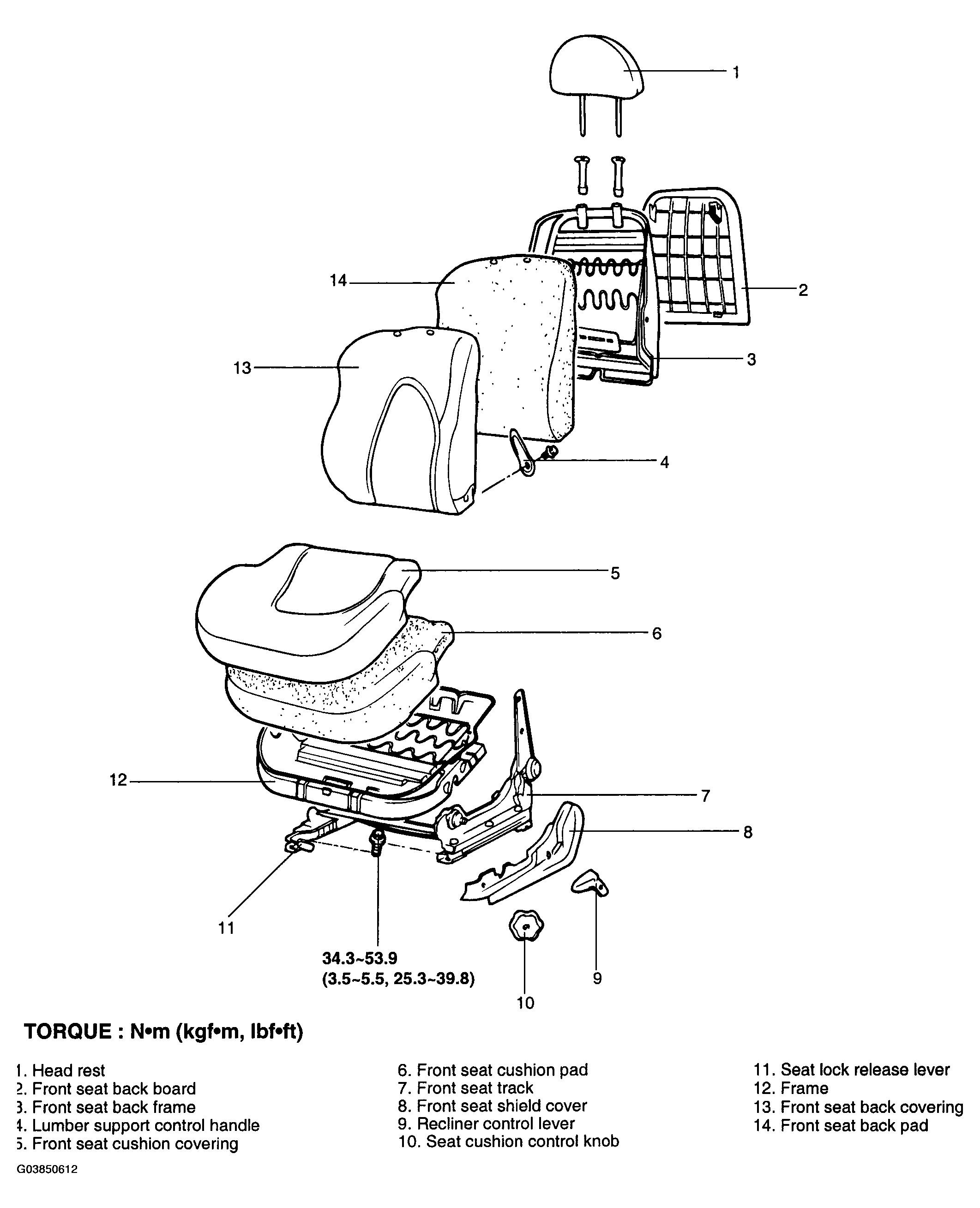

Fig 1: Front Seat Replacement Components With Torque Specifications
G03850612Courtesy of HYUNDAI MOTOR CO.
