Components Location

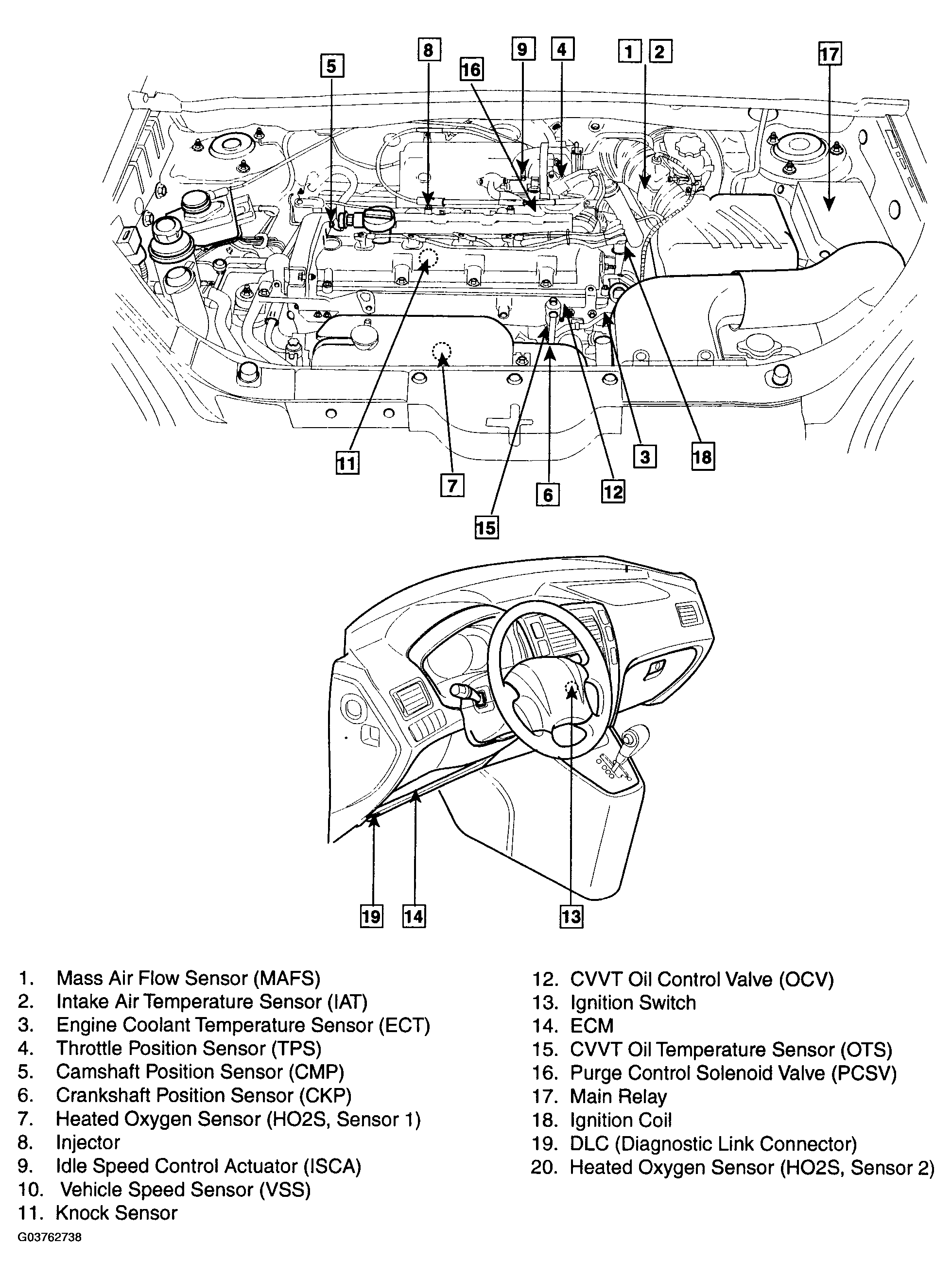

Fig 1: Identifying Electronic Powertrain Components (1 Of 3)

Courtesy of HYUNDAI MOTOR CO.

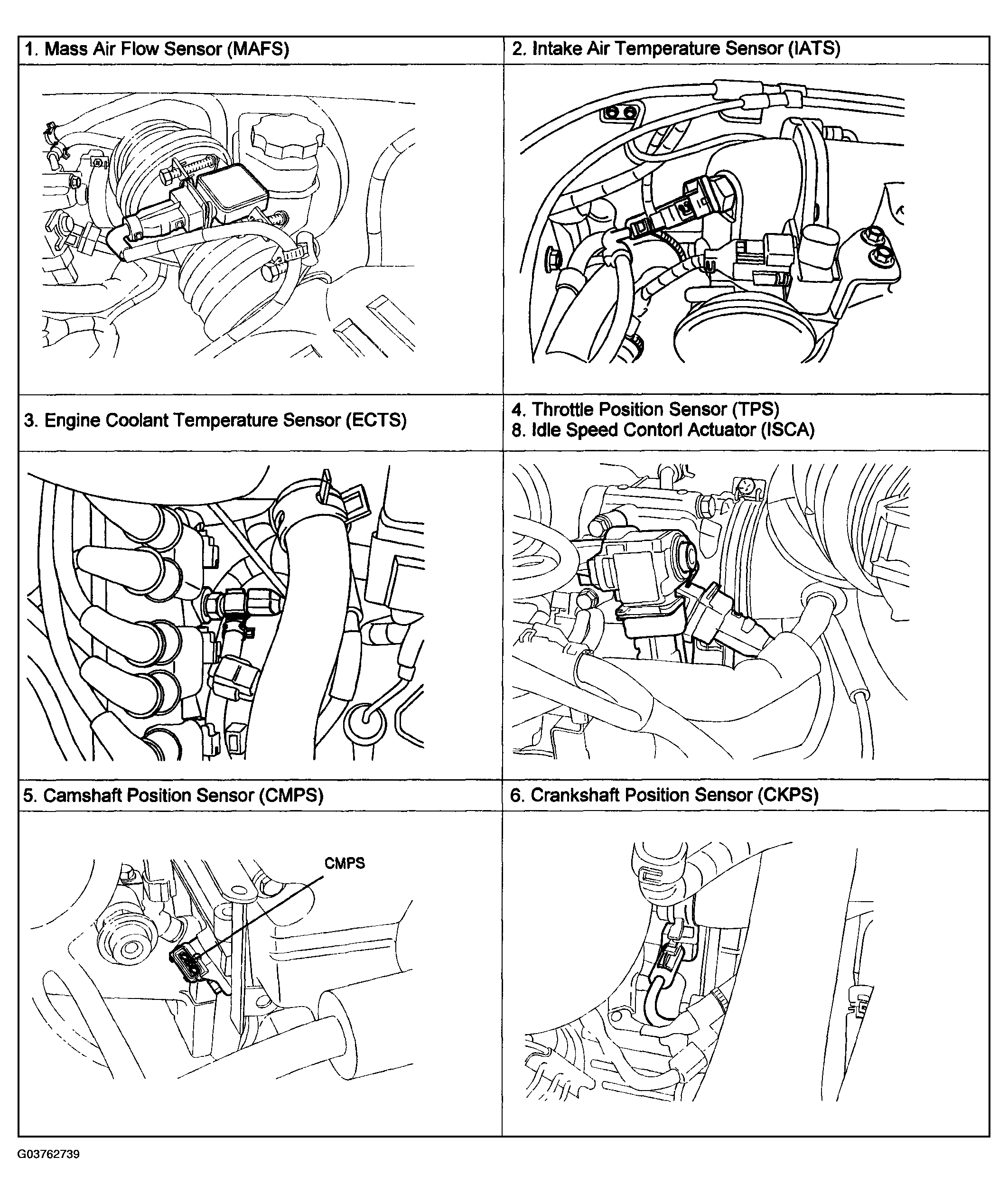

Fig 2: Identifying Electronic Powertrain Components (2 Of 3)

Courtesy of HYUNDAI MOTOR CO.

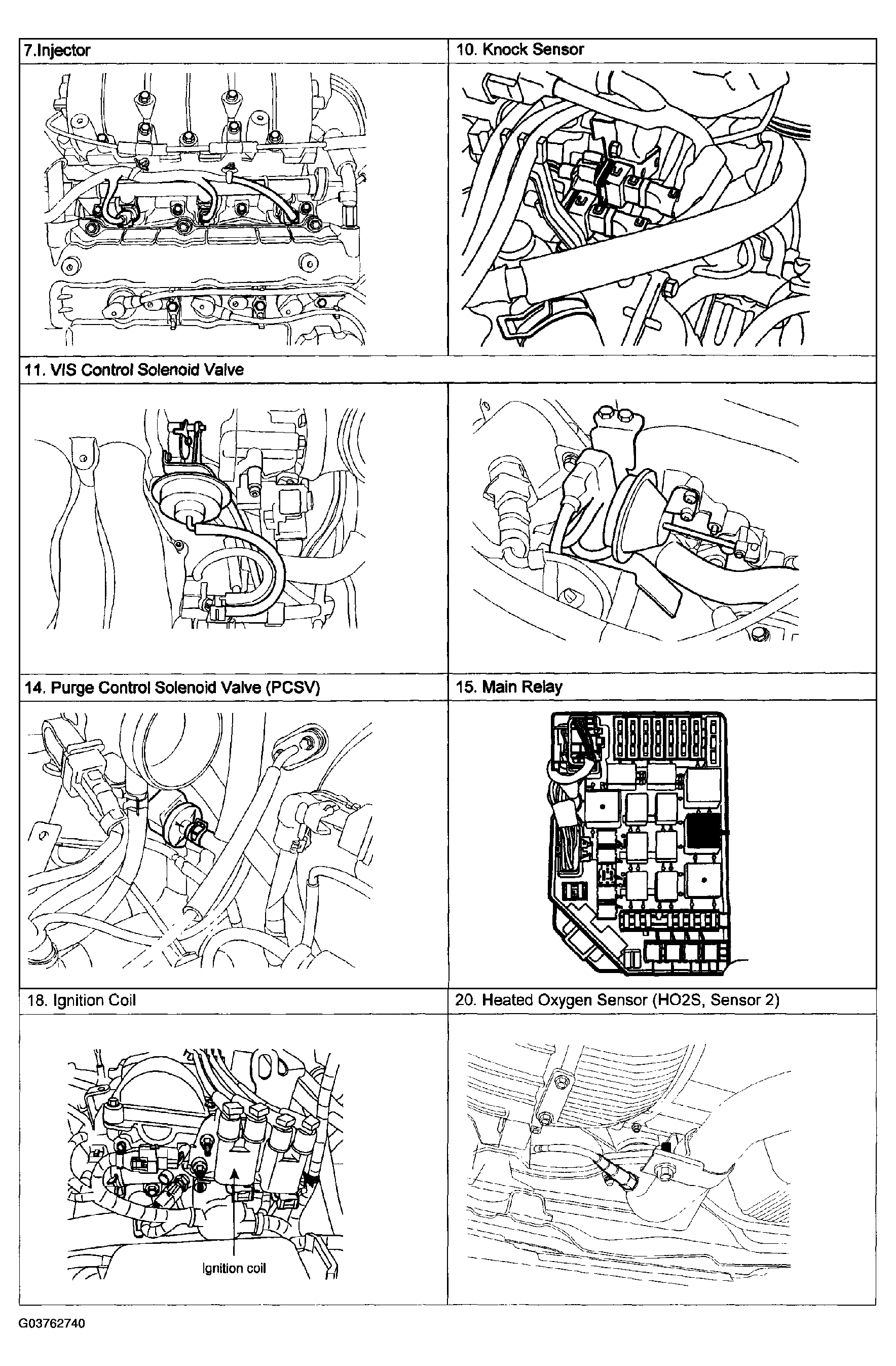

Fig 3: Identifying Electronic Powertrain Components (3 Of 3)

Courtesy of HYUNDAI MOTOR CO.
