3. ECM Terminal Input/Output Signal

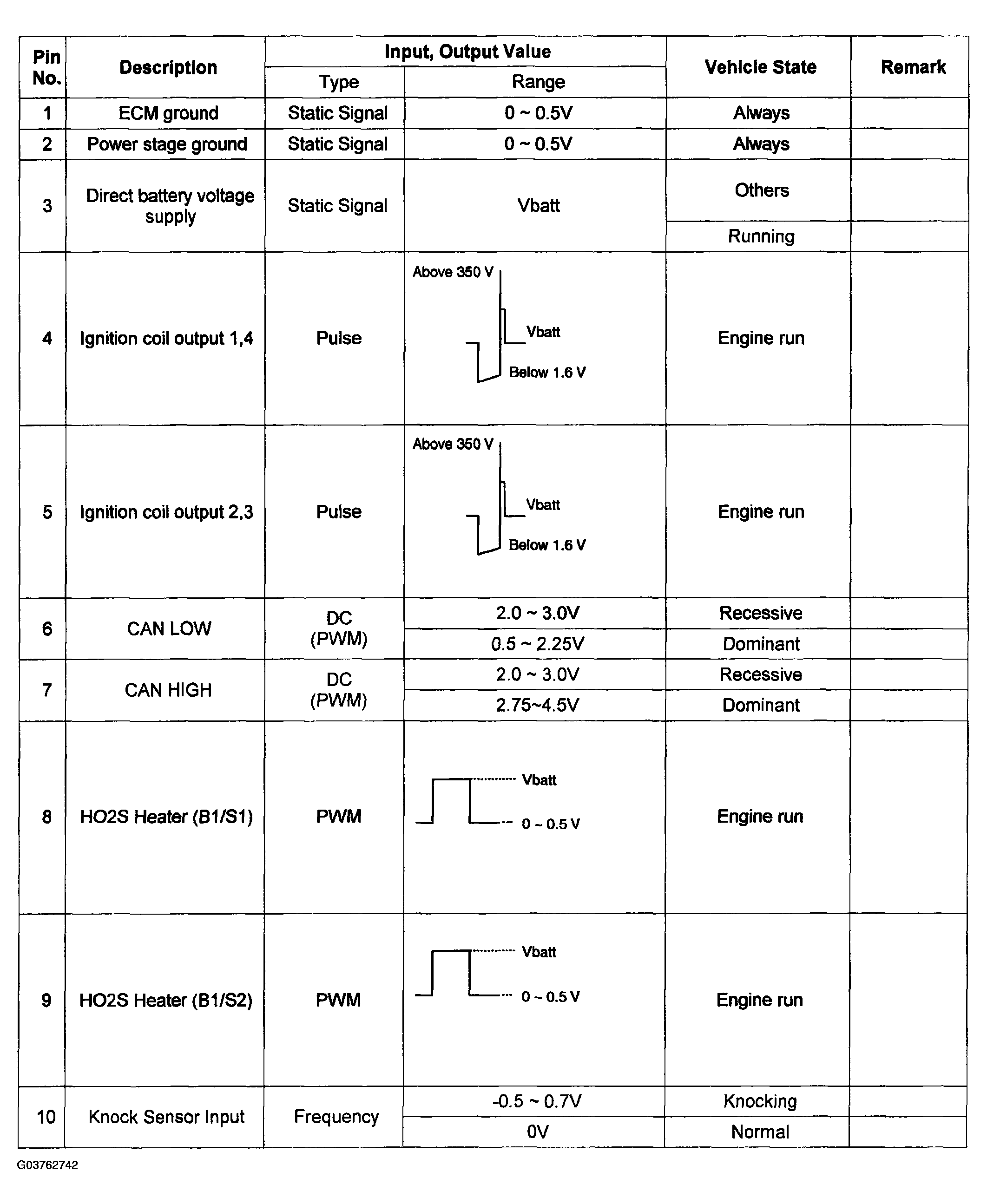

Fig 1: Identifying ECM Terminal Input And Output Signal (1 Of 6)

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Identifying ECM Terminal Input And Output Signal (2 Of 6)

Courtesy of HYUNDAI MOTOR CO.

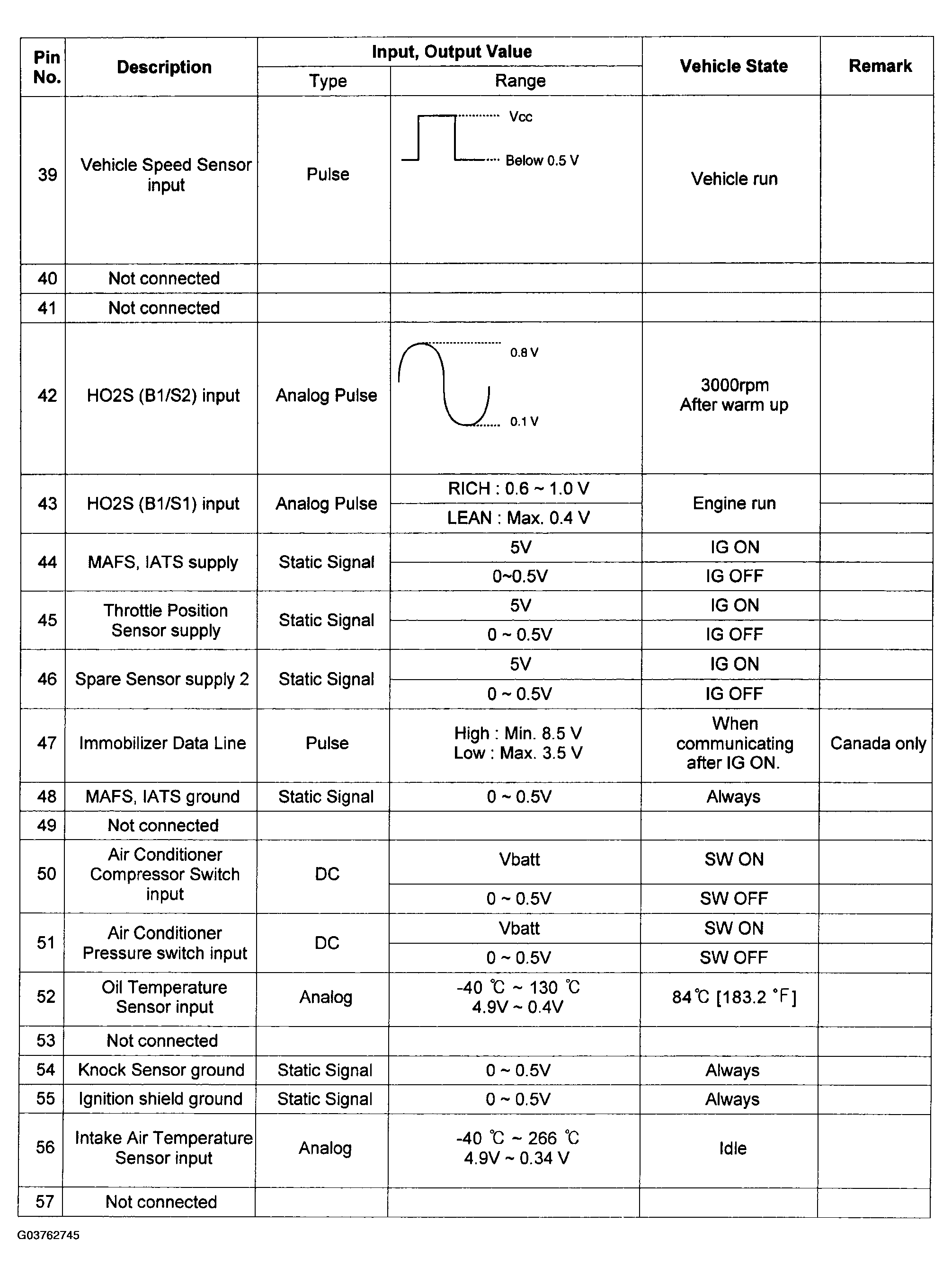

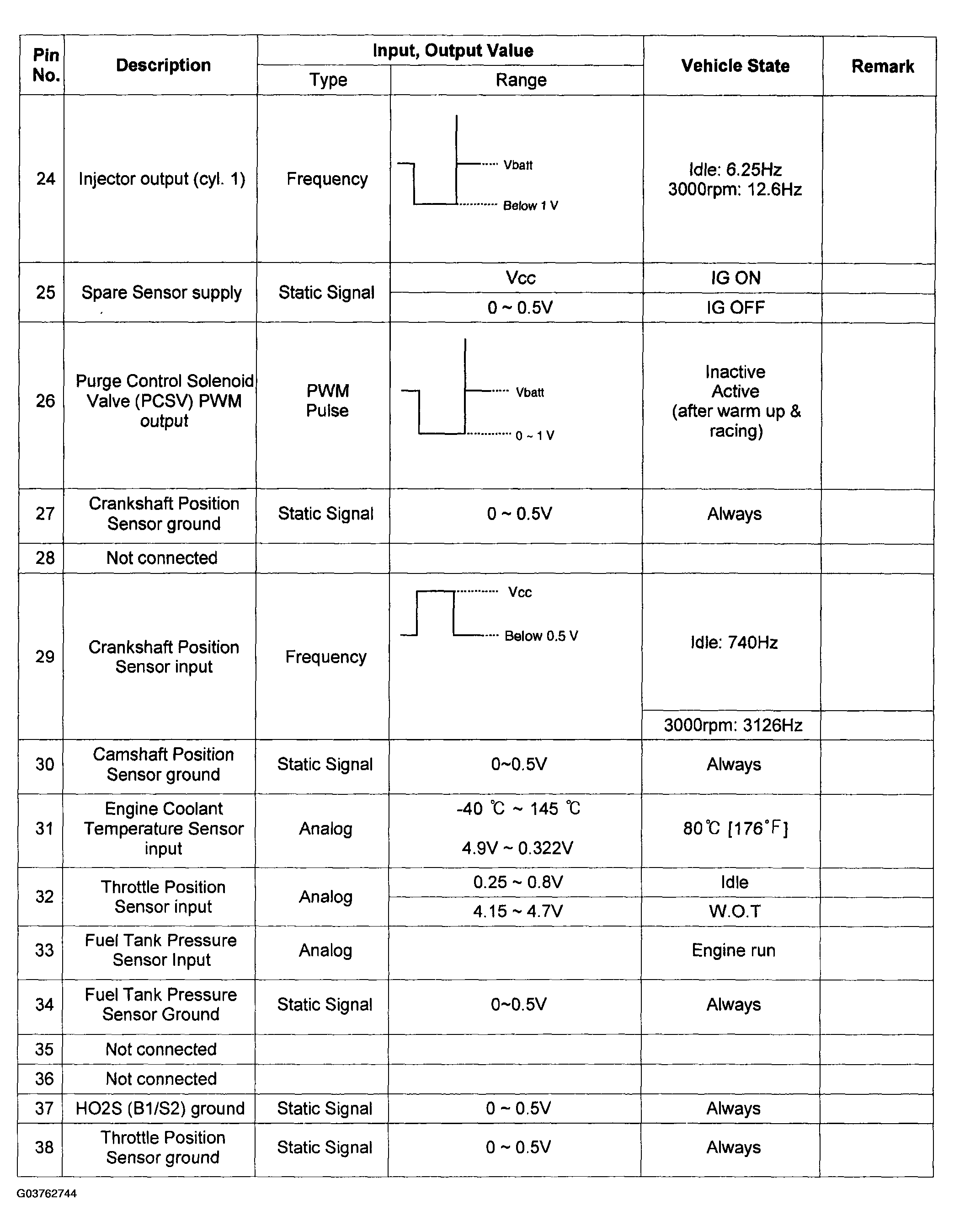

Fig 3: Identifying ECM Terminal Input And Output Signal (3 Of 6)

Courtesy of HYUNDAI MOTOR CO.

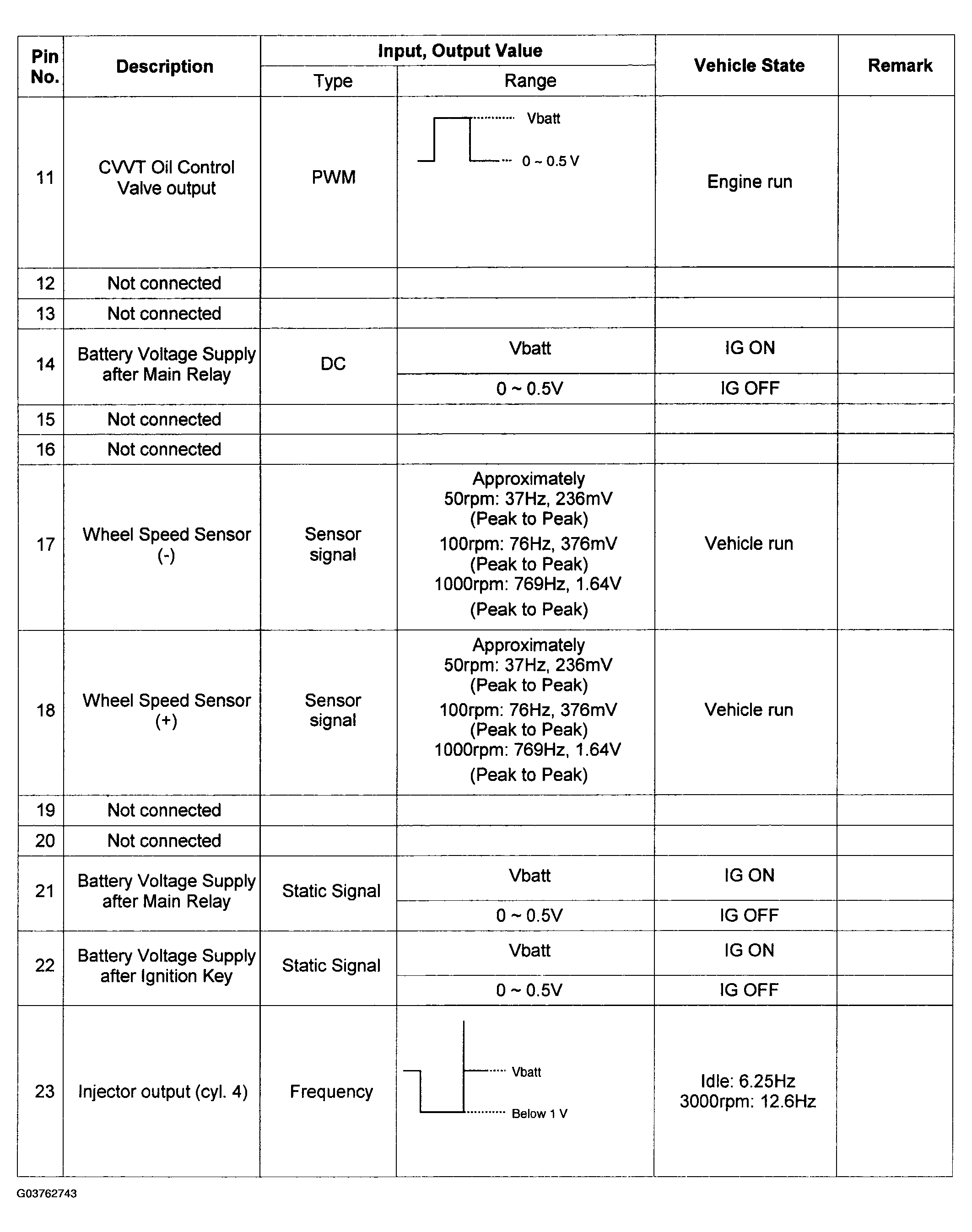

Fig 4: Identifying ECM Terminal Input And Output Signal (4 Of 6)

Courtesy of HYUNDAI MOTOR CO.

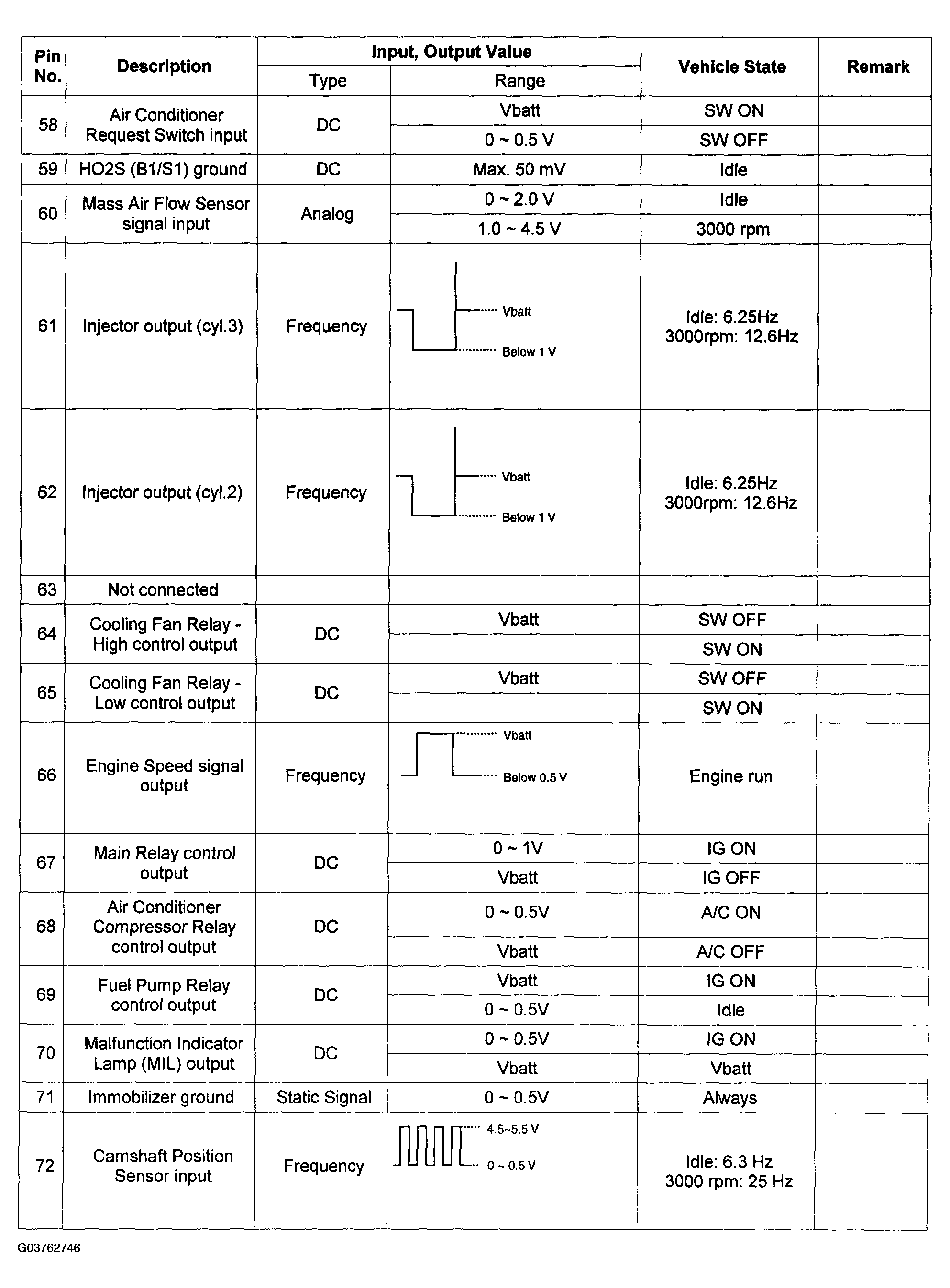

Fig 5: Identifying ECM Terminal Input And Output Signal (5 Of 6)

Courtesy of HYUNDAI MOTOR CO.

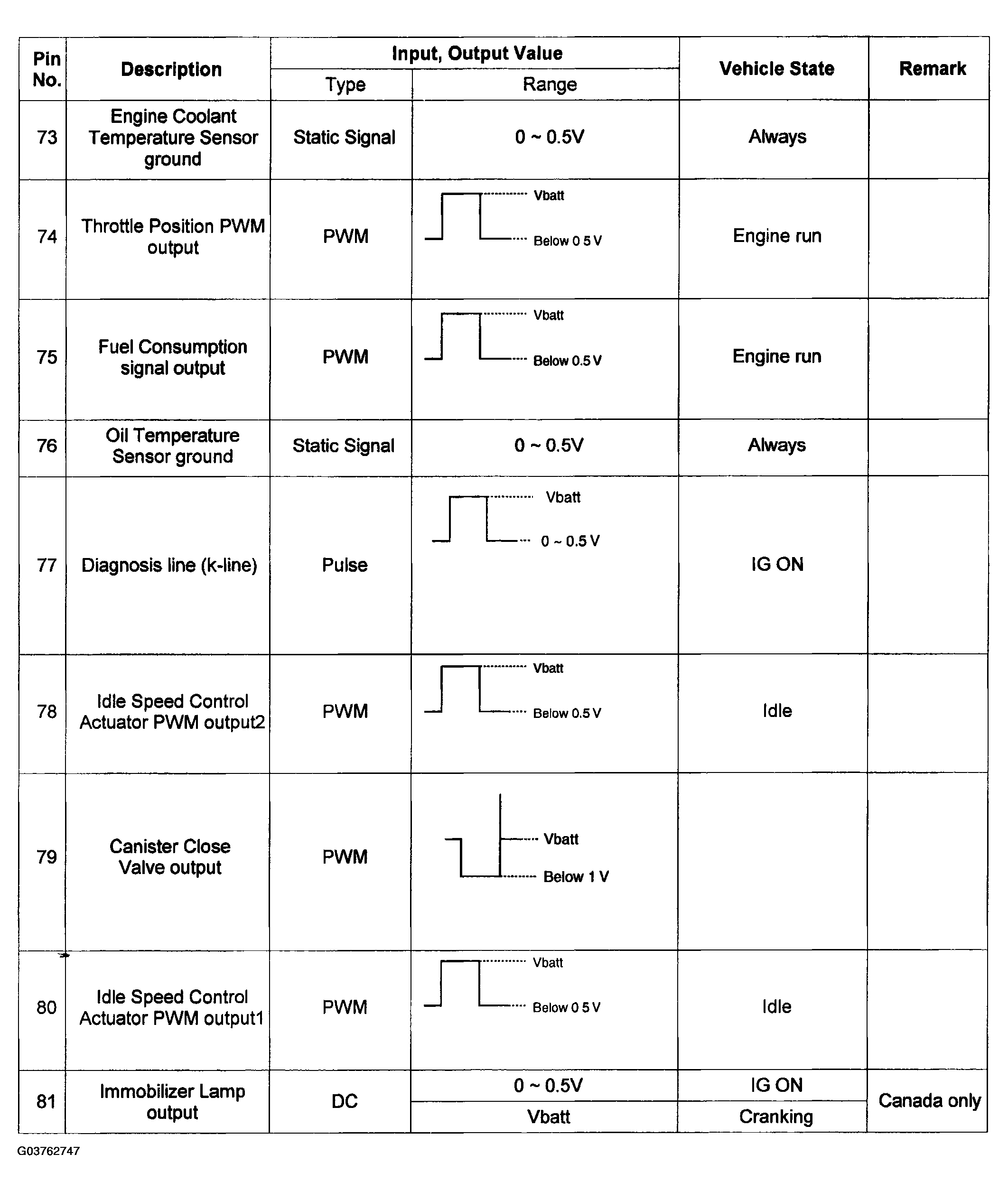

Fig 6: Identifying ECM Terminal Input And Output Signal (6 Of 6)

Courtesy of HYUNDAI MOTOR CO.
