Manual Transaxle Shift Control: Components

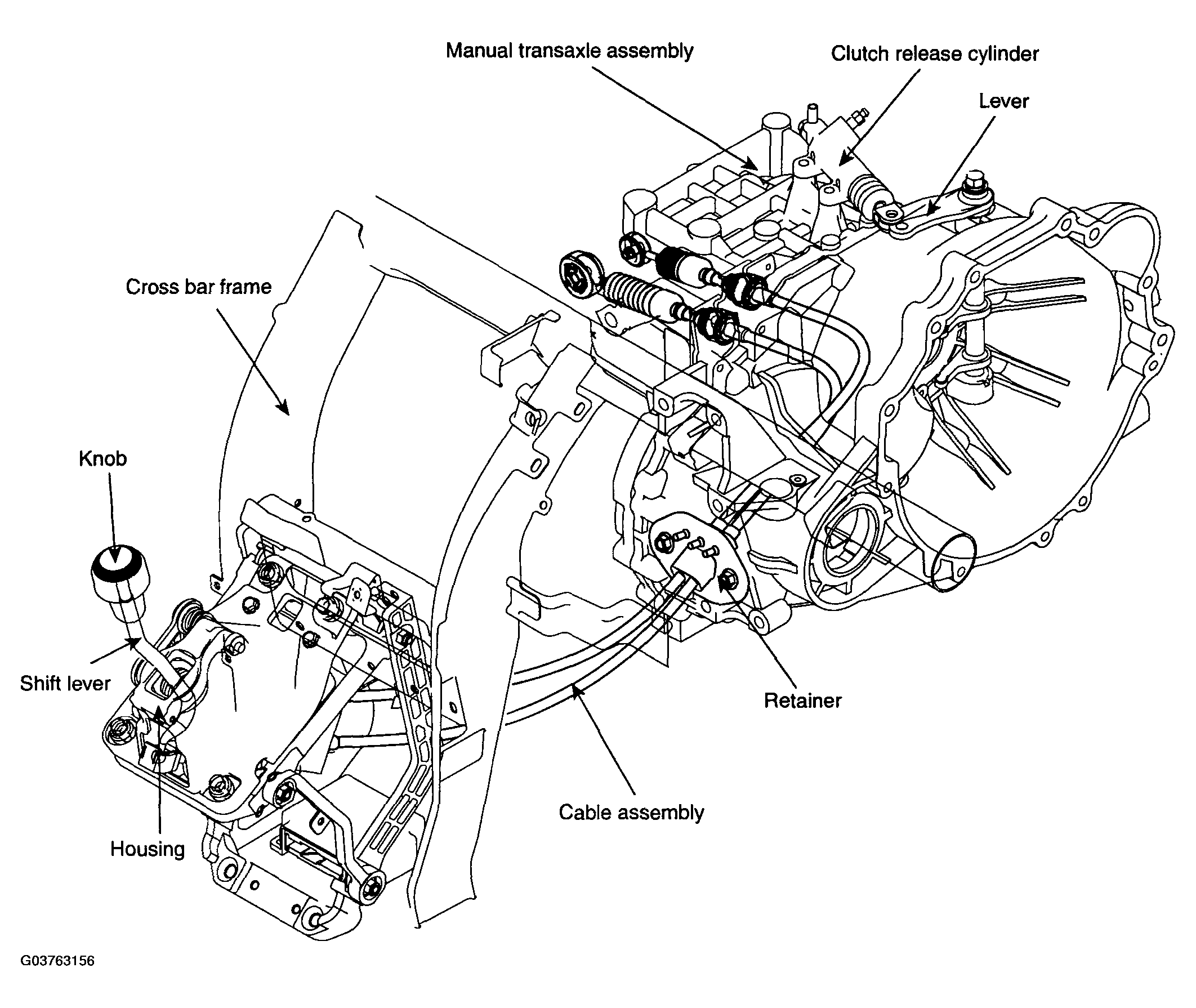

Fig 1: Identifying Manual Transaxle Shift Control Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
