Output Characteristic

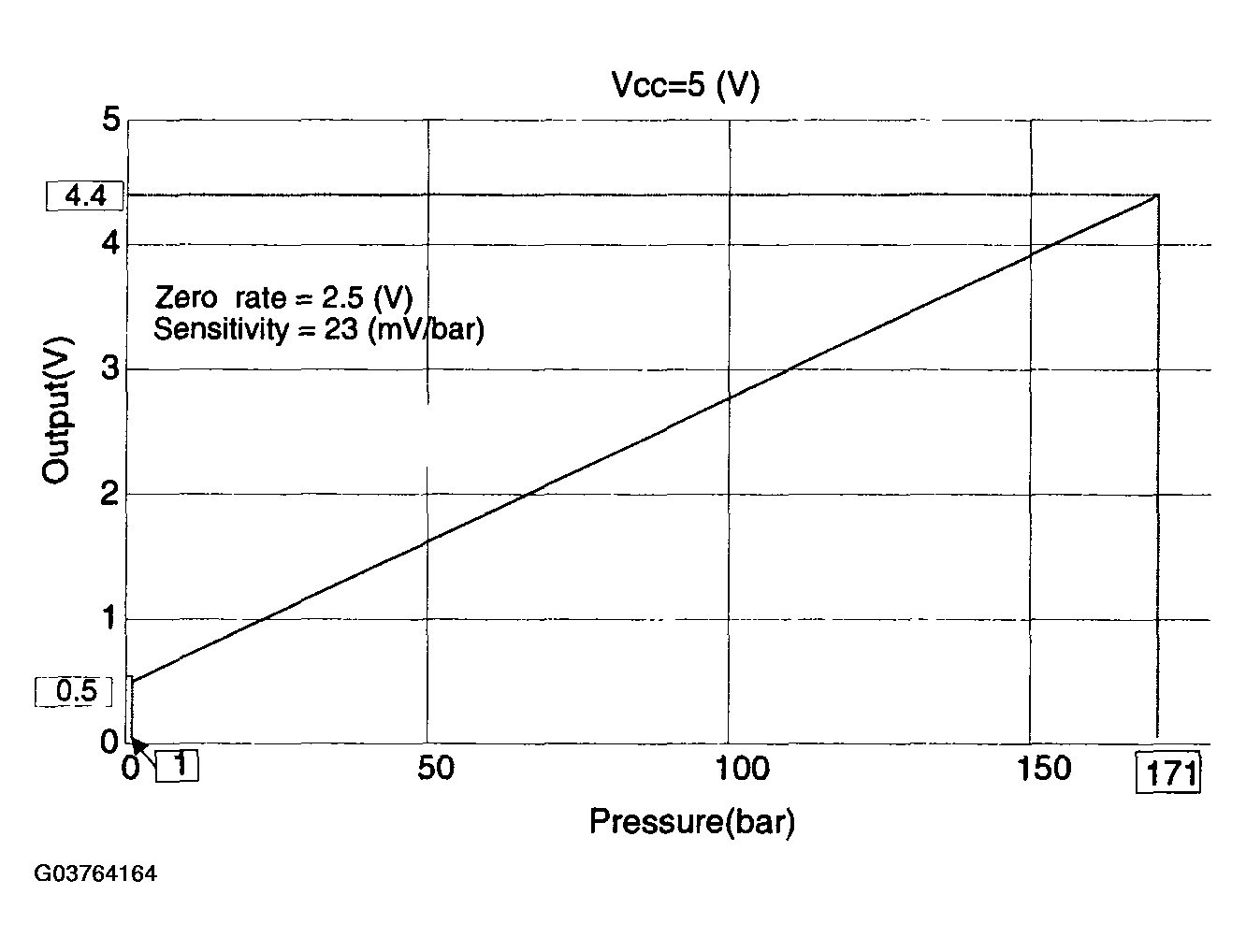

Fig 1: Master Cylinder Pressure Sensor Output Graph
G03764164Courtesy of HYUNDAI MOTOR CO.
