Components Location

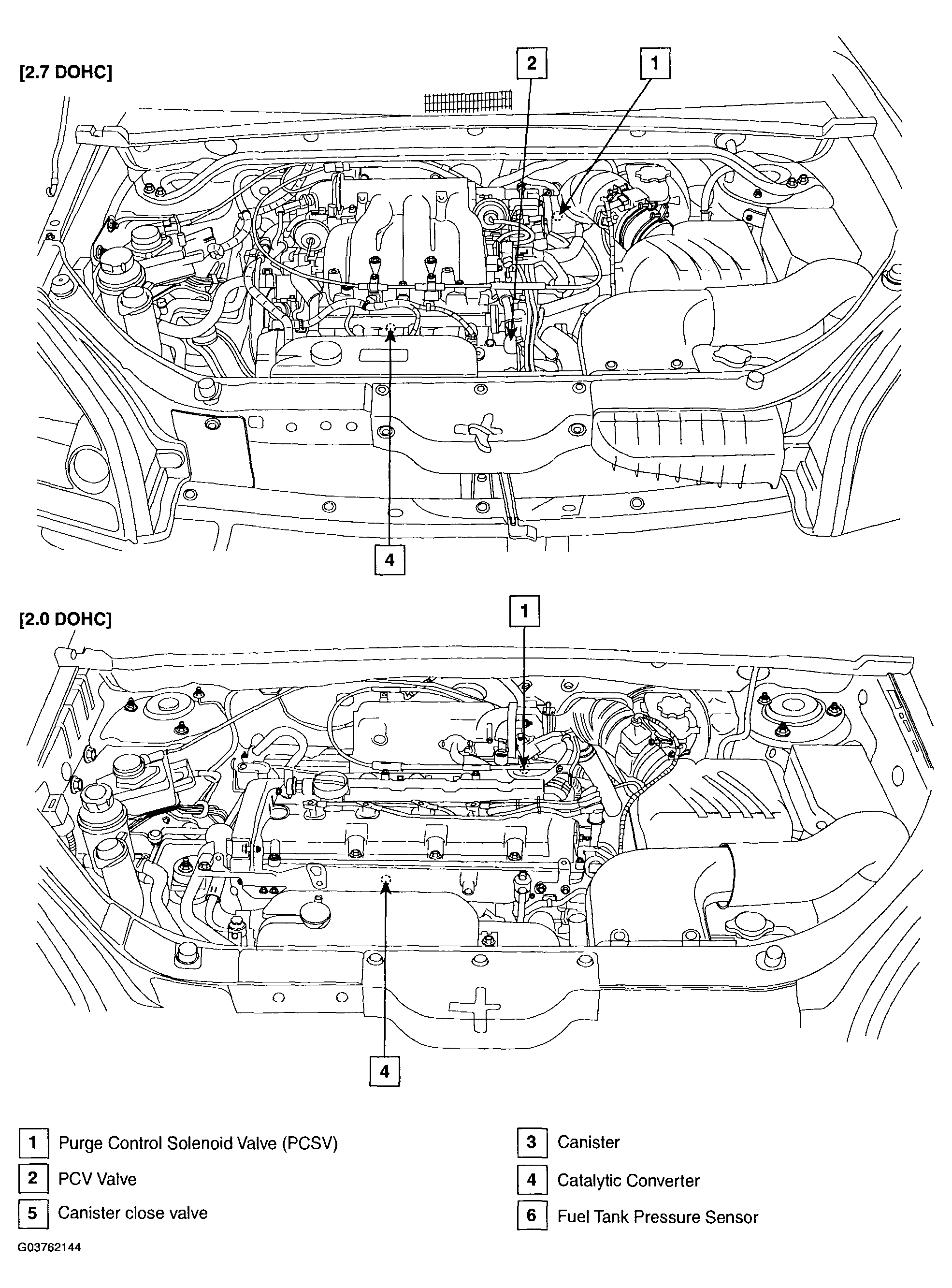

Fig 1: Locating Emission Control System Components (1 Of 2)
G03762144Courtesy of HYUNDAI MOTOR CO.

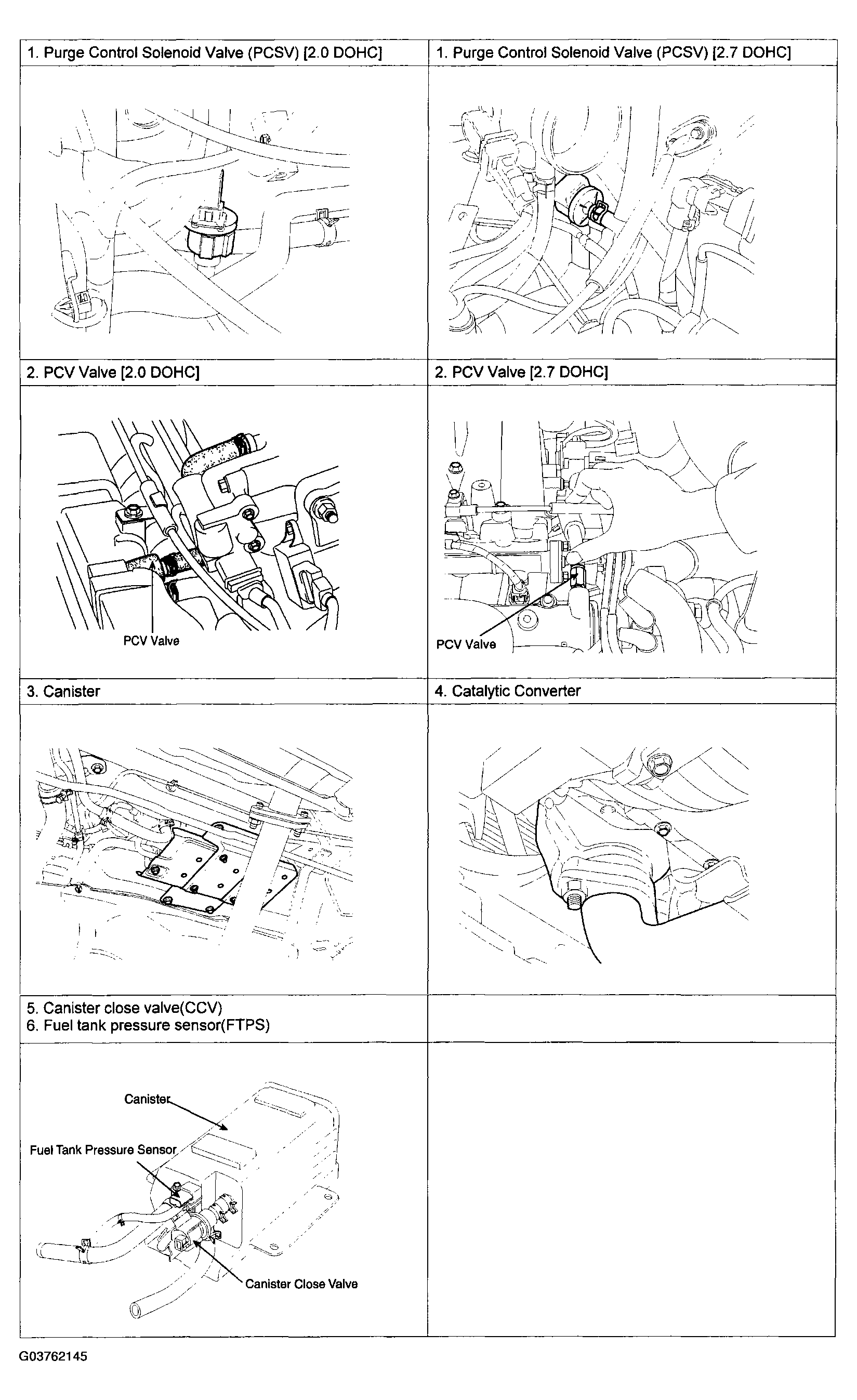

Fig 2: Locating Emission Control System Components (2 Of 2)
G03762145Courtesy of HYUNDAI MOTOR CO.
