Coupling Assembly: Components

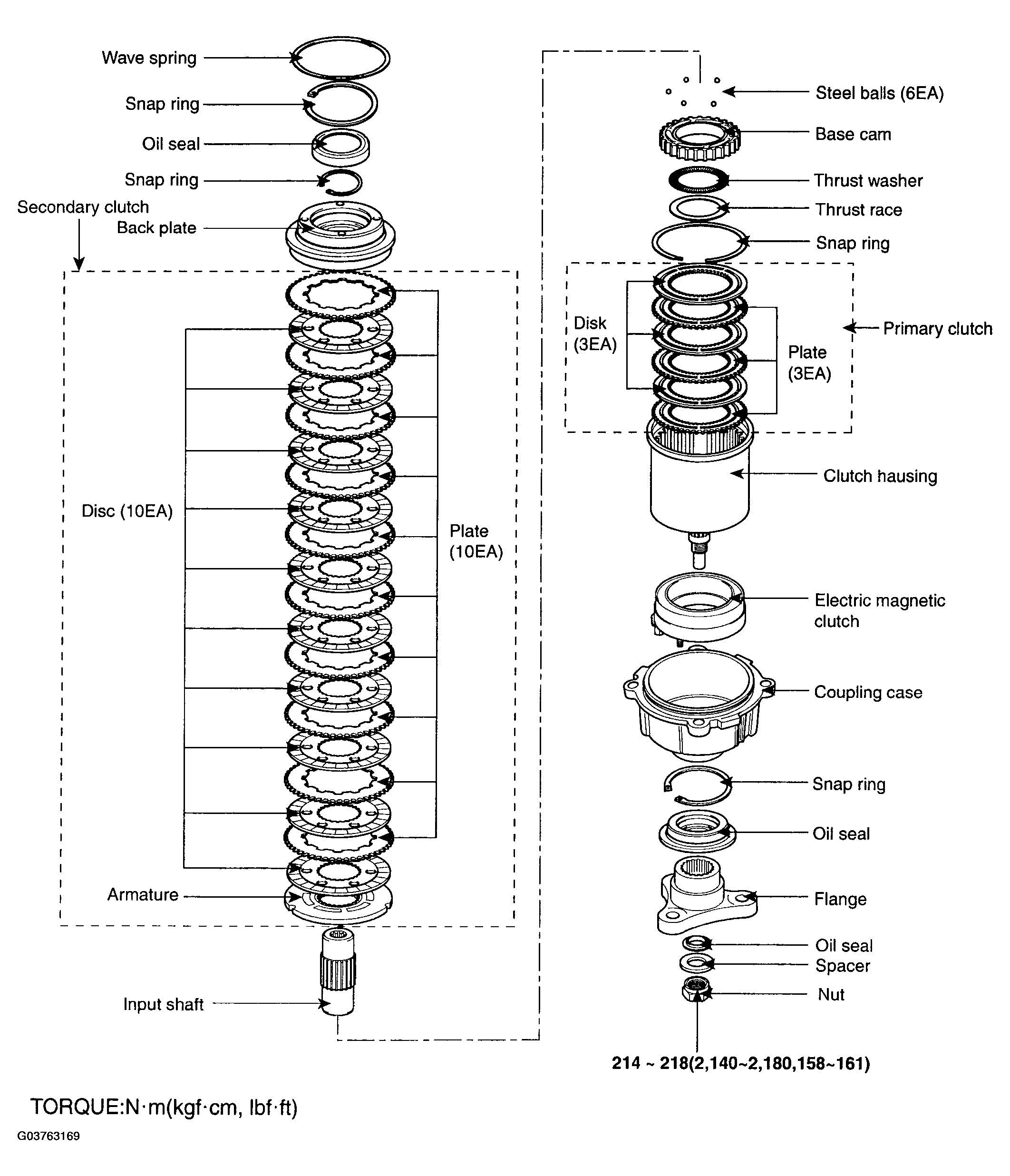

Fig 1: Identifying Coupling Assembly Components
G03763169Courtesy of HYUNDAI MOTOR CO.
