Transfer Case: Components

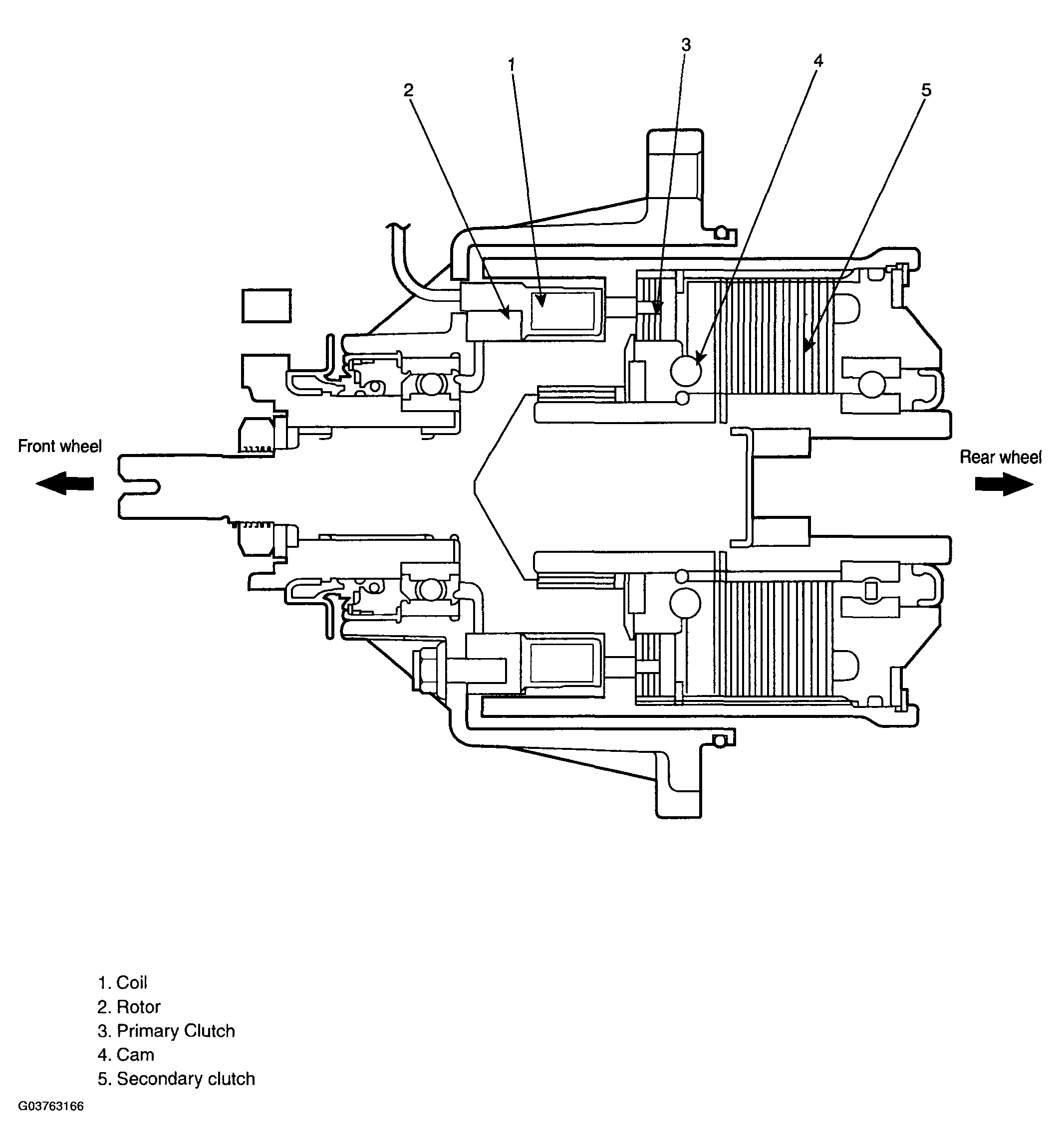

Fig 1: Identifying Transfer Case Components
G03763166Courtesy of HYUNDAI MOTOR CO.
