Transfer Case: Installation

Remove the filler plug (A).

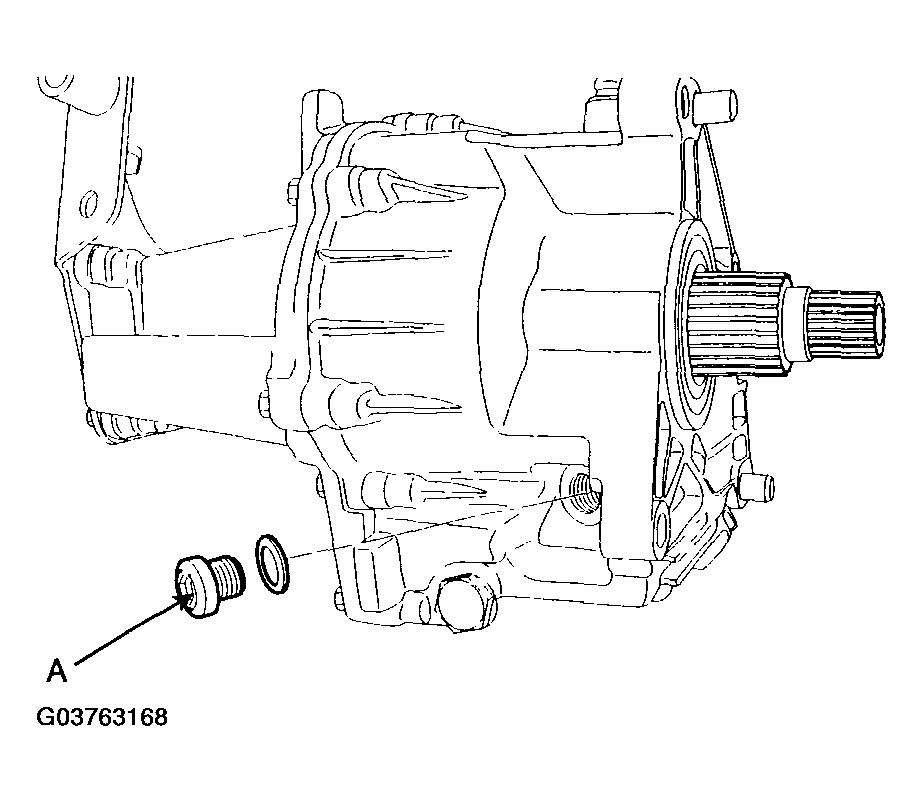

Fig 1: Removing Filler Plug
Courtesy of HYUNDAI MOTOR CO.
Refill the specification to the specified quantity.
Specification: SAE 80w/90

Quantity: 0.8L
Fix it in proper position with mounting bolts.
