ETACS Module Input Signal Test

1. Disconnect the wire connector from the ETACS module.
2. Inspect the connector on wire harness side as shown in the below.

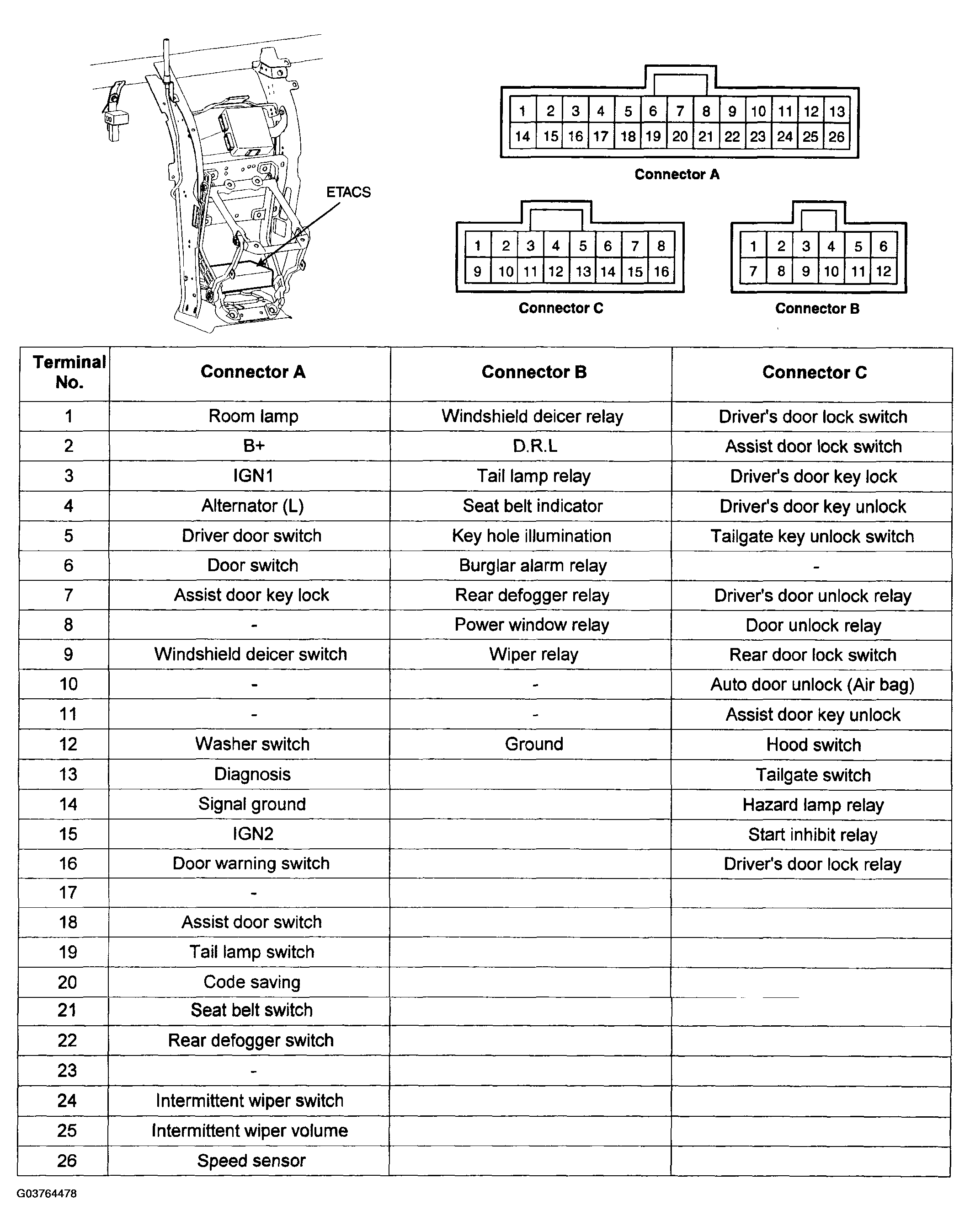

   Fig 1: Inspecting Connector On Wire Harness Side

   Courtesy of HYUNDAI MOTOR CO.

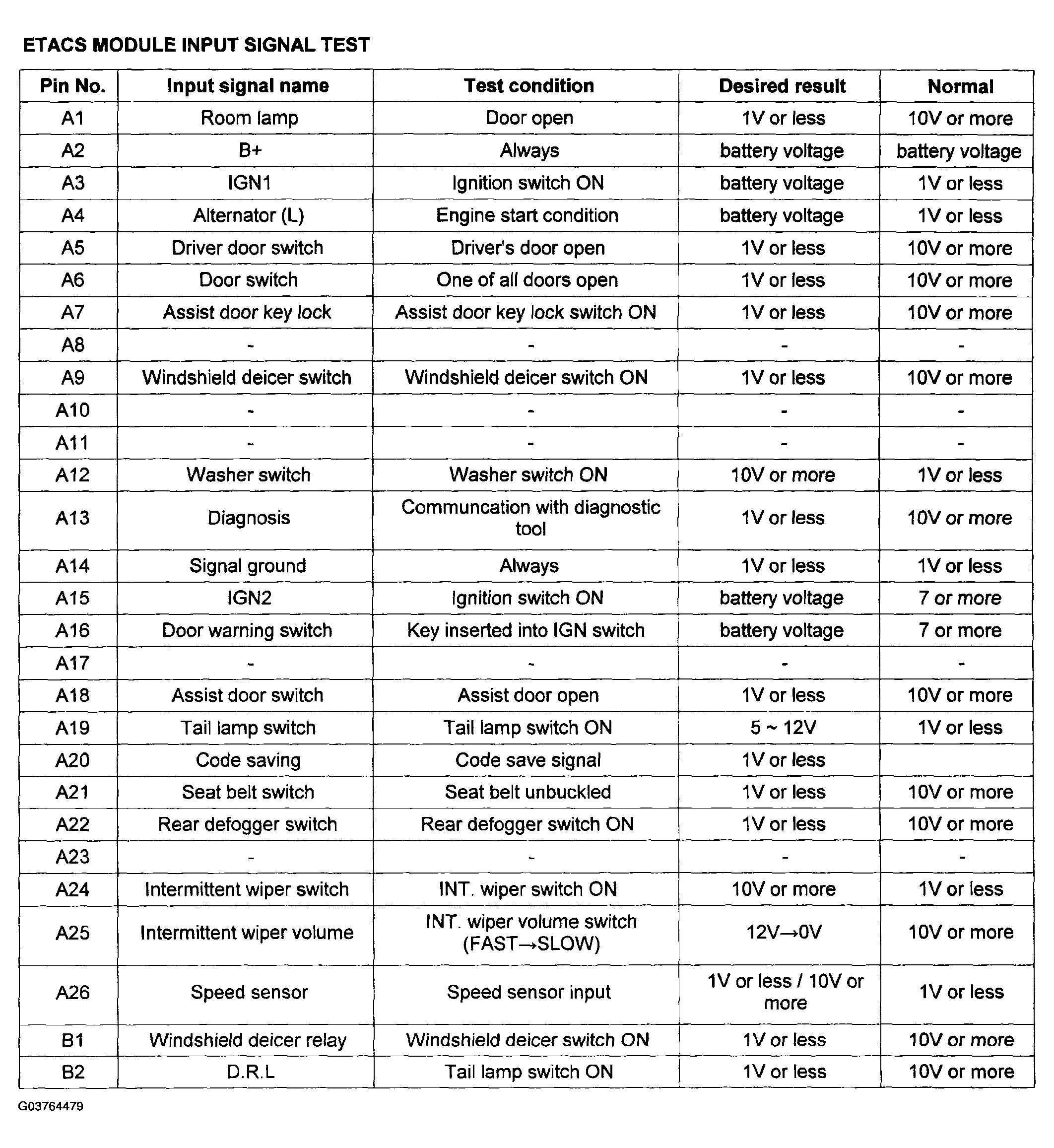

Fig 2: ETACS Module Input Signal Test Specification Chart (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

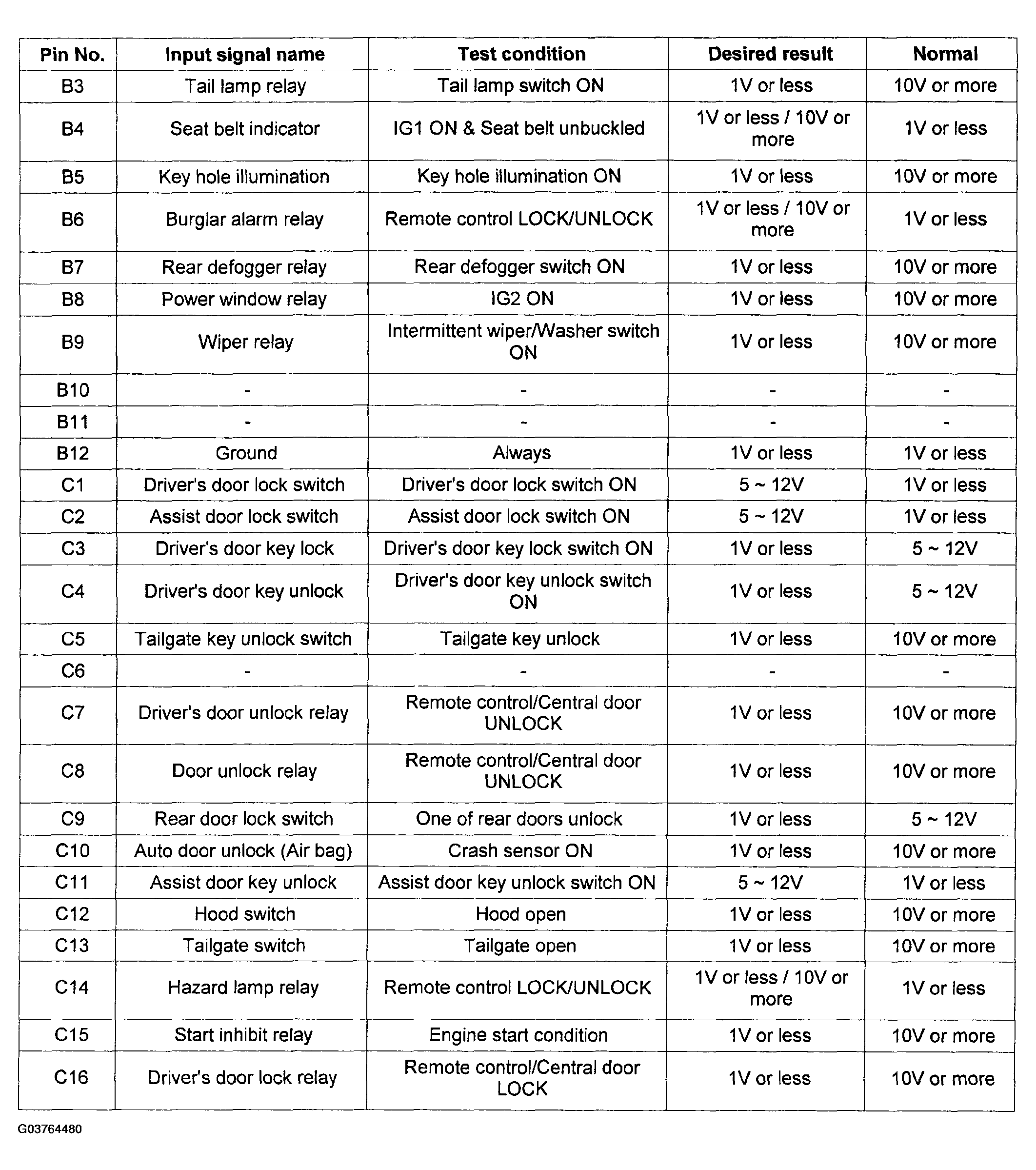

Fig 3: ETACS Module Input Signal Test Specification Chart (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
