Supplemental Restraint System Control Module Connector End View
Supplemental Restraint System Control Module Connector End View

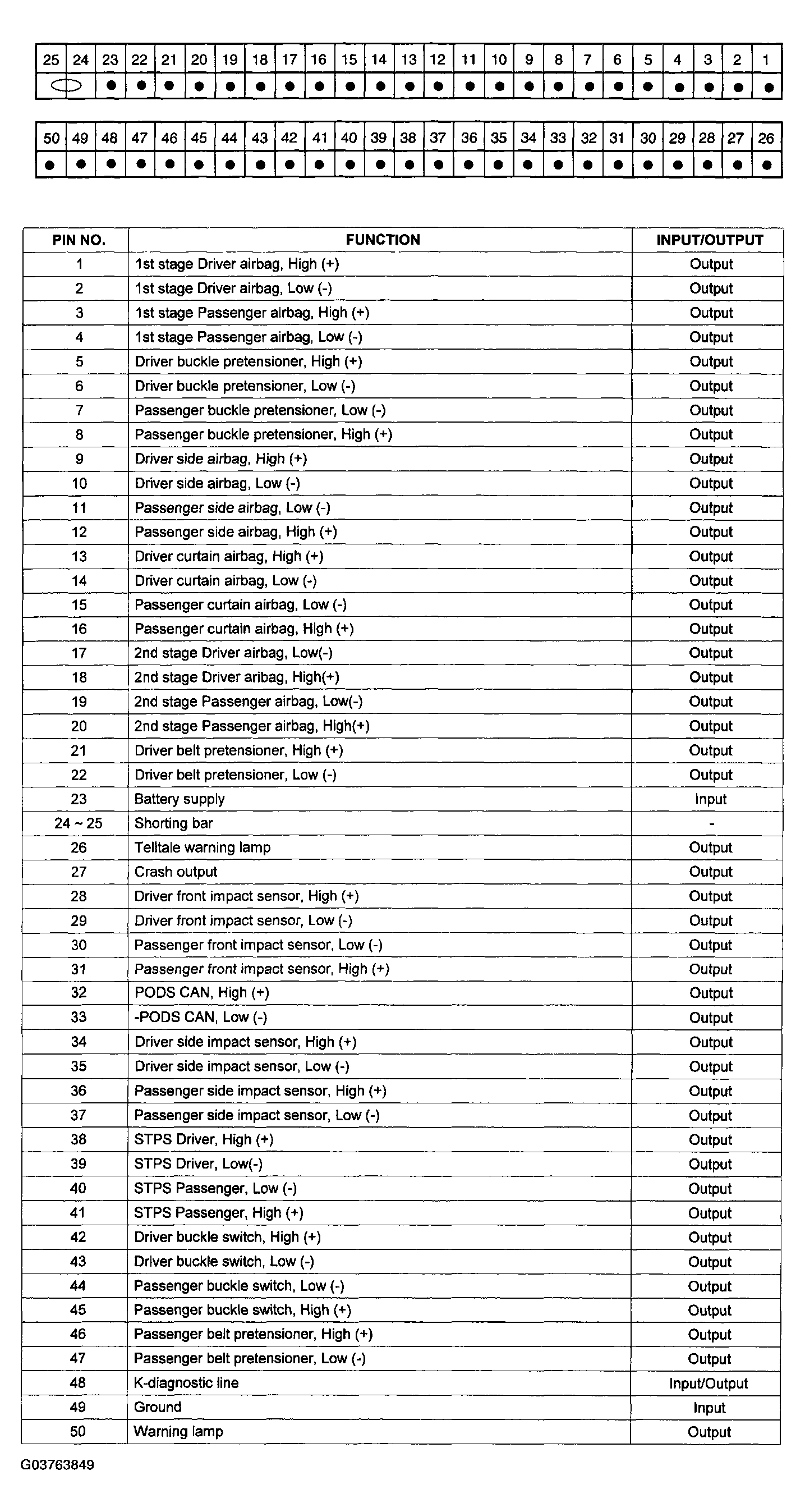

Fig 1: Supplemental Restraint System Control Module Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
