Passenger's Power Window Switch

Remove the assist power window switch from the assist door trim panel.

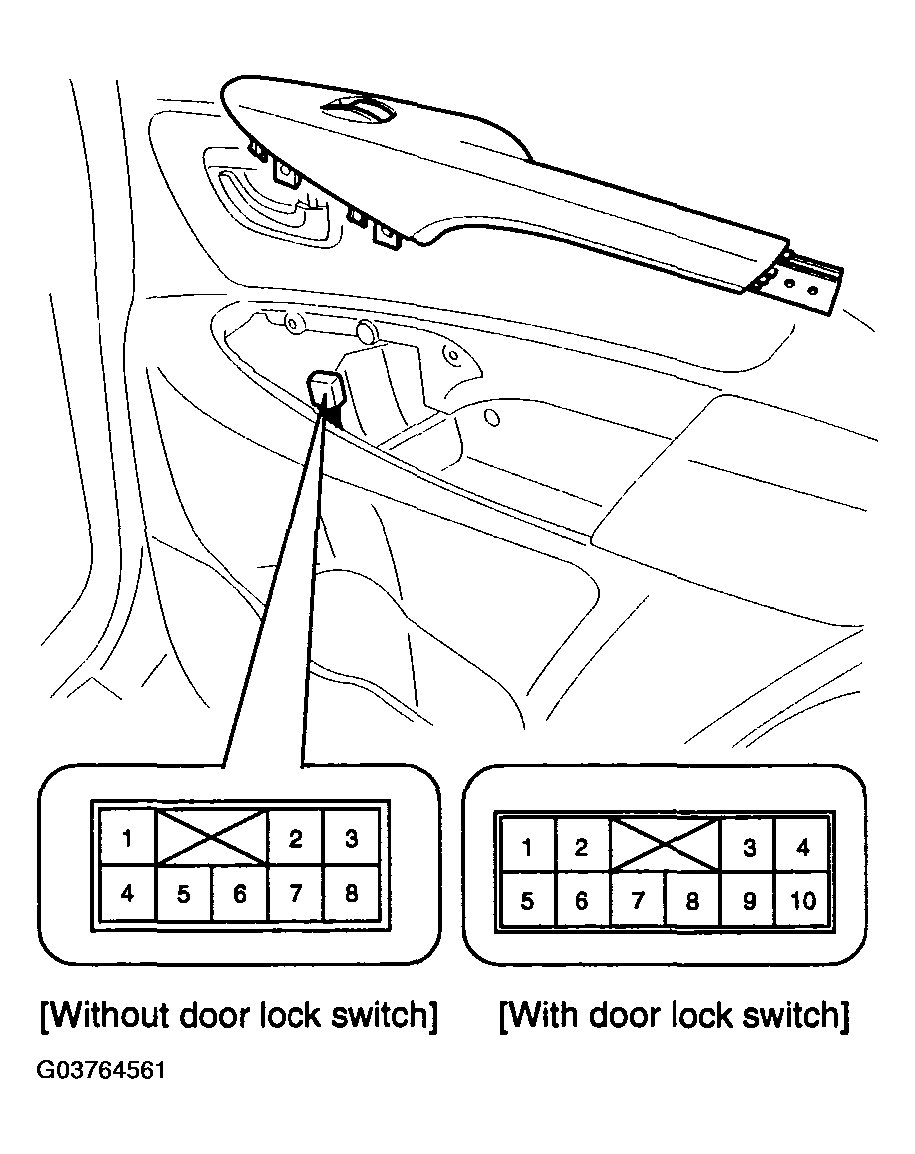

Fig 1: Removing Assist Power Window Switch From Assist Door Trim Panel
Courtesy of HYUNDAI MOTOR CO.
Check for continuity between the terminals.
If continuity is not as specified in Fig 2 or Fig 3 , replace the power window switch.

Fig 2: Checking Passenger's Power Window Switch Continuity (Without Door Lock Switch)

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Checking Passenger's Power Window Switch Continuity (With Door Lock Switch)

Courtesy of HYUNDAI MOTOR CO.
