Power Window Main Switch

  1. Remove the power window main switch from the driver's door trim panel.

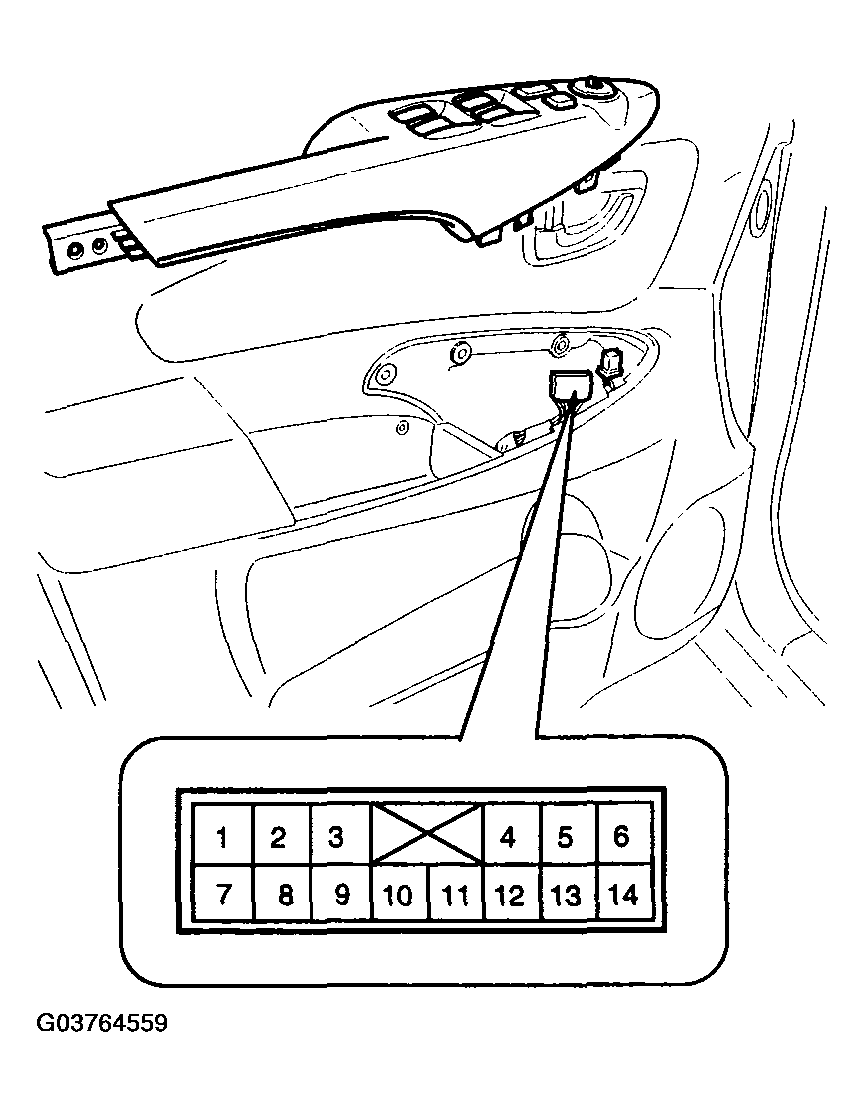

    Fig 1: Removing Power Window Main Switch From Driver's Door Trim Panel
    G03764559Courtesy of HYUNDAI MOTOR CO.
  2. Check for continuity between the terminals.

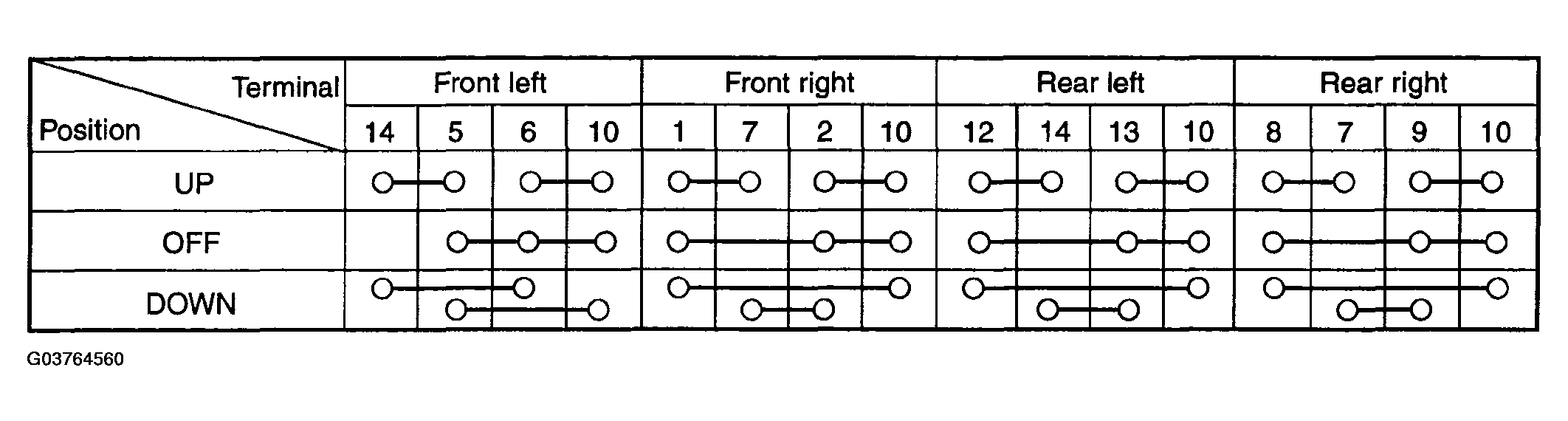

    Fig 2: Checking Power Window Main Switch Continuity
    G03764560Courtesy of HYUNDAI MOTOR CO.
