Camshaft Position Sensor

  1. Remove the engine cover.
  2. Disconnect the camshaft position sensor connector.
  3. Remove the camshaft position sensor (C).

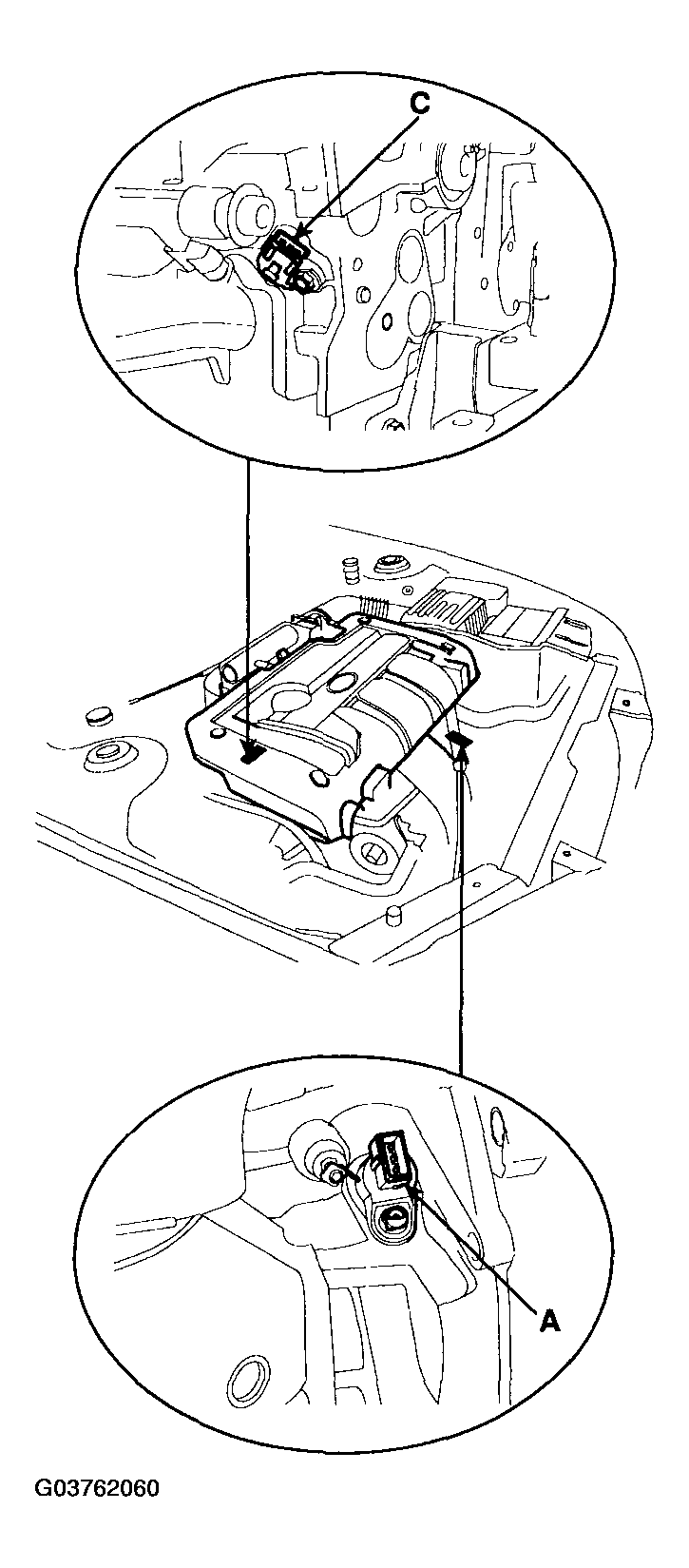

    Fig 1: Removing Crankshaft Position Sensor (1 Of 2)
    G03762060Courtesy of HYUNDAI MOTOR CO.

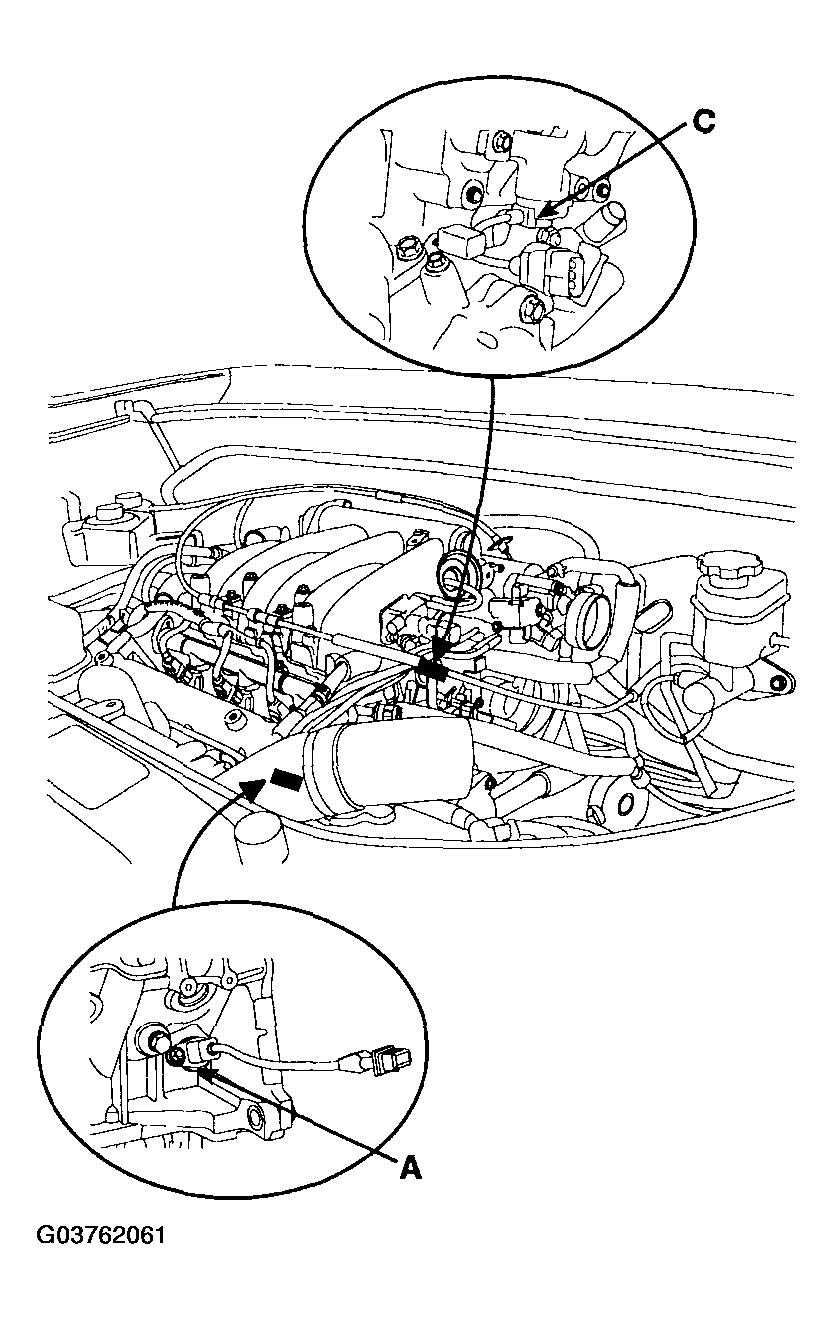

    Fig 2: Removing Crankshaft Position Sensor (2 Of 2)
    G03762061Courtesy of HYUNDAI MOTOR CO.
