Component Inspection

CHECK "TRANSAXLE FLUID TEMPERATURE SENSOR"

Ignition "OFF".
Disconnect the "TRANSAXLE FLUID TEMPERATURE SENSOR" connector.

Measure the resistance between terminals "1" and "2" of the "TRANSMISSION FLUID TEMPERATURE SENSOR".

Specification: Refer to ATF TEMPERATURE SENSOR RESISTANCE .

[REFERENCE DATA]

ATF TEMPERATURE SENSOR RESISTANCE

Temp.[°C (°F)]	Resistance (kΩ)
-40(-40)	139.5
-20(-4)	47.7
0(32)	18.6
20(68)	8.1
40(104)	3.8
60(140)	1.98
80(176)	1.08
100(212)	0.63
120(248)	0.38
140(284)	0.25
160(320)	0.16

Fig 1: Measuring Resistance Between Terminals 1 And 2 Of Transmission Fluid Temperature Sensor

G03763383

Courtesy of HYUNDAI MOTOR CO.

Is resistance within specifications?
YES
- Go to 2 as below.
NO
- Replace "TRANSAXLE FLUID TEMPERATURE SENSOR" as necessary and refer to VERIFICATION OF VEHICLE REPAIR .

CHECK TCM
1. Ignition "ON" & Engine "OFF".
2. Connect "TRANSAXLE FLUID TEMPERATURE SENSOR" connector.
3. Install scan tool and select a SIMU-SCAN.
4. Simulate voltage (0 -->5V) to "TRANSMISSION FLUID TEMPERATURE SENSOR" signal circuit.

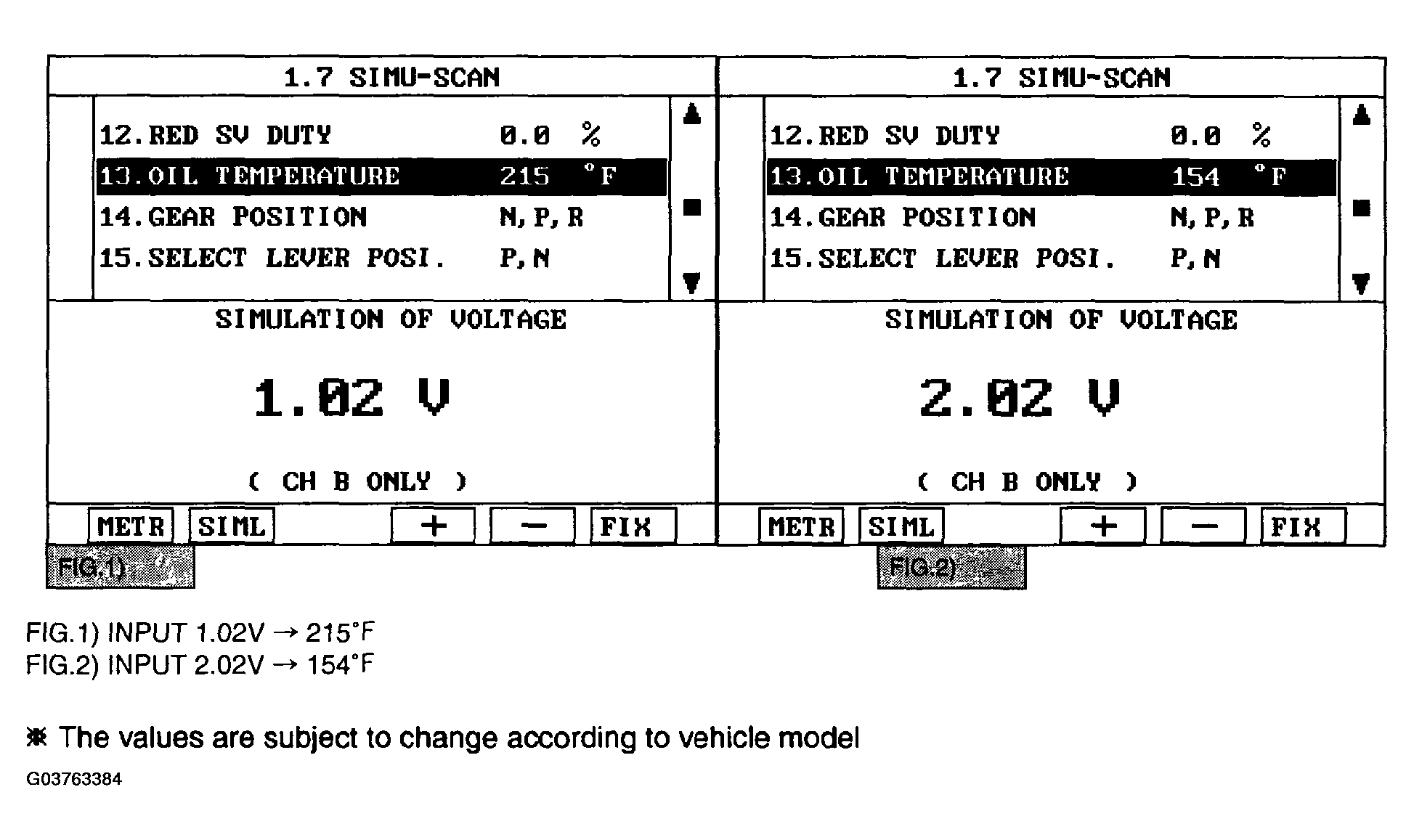

  Fig 2: Checking TCM
  Courtesy of HYUNDAI MOTOR CO.
5. Is FLUID TEMP. SENSOR signal value changed according to simulation voltage?
  YES
  - Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then refer to VERIFICATION OF VEHICLE REPAIR .
  NO
  - Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and then refer to VERIFICATION OF VEHICLE REPAIR .
