Monitor Scan Tool Data

Connect scan tool to data link connector (DLC).
Engine "ON".
Monitor the "TRANSAXLE FLUID TEMPERATURE SENSOR" parameter on the scan tool.
Specification: Increasing Gradually

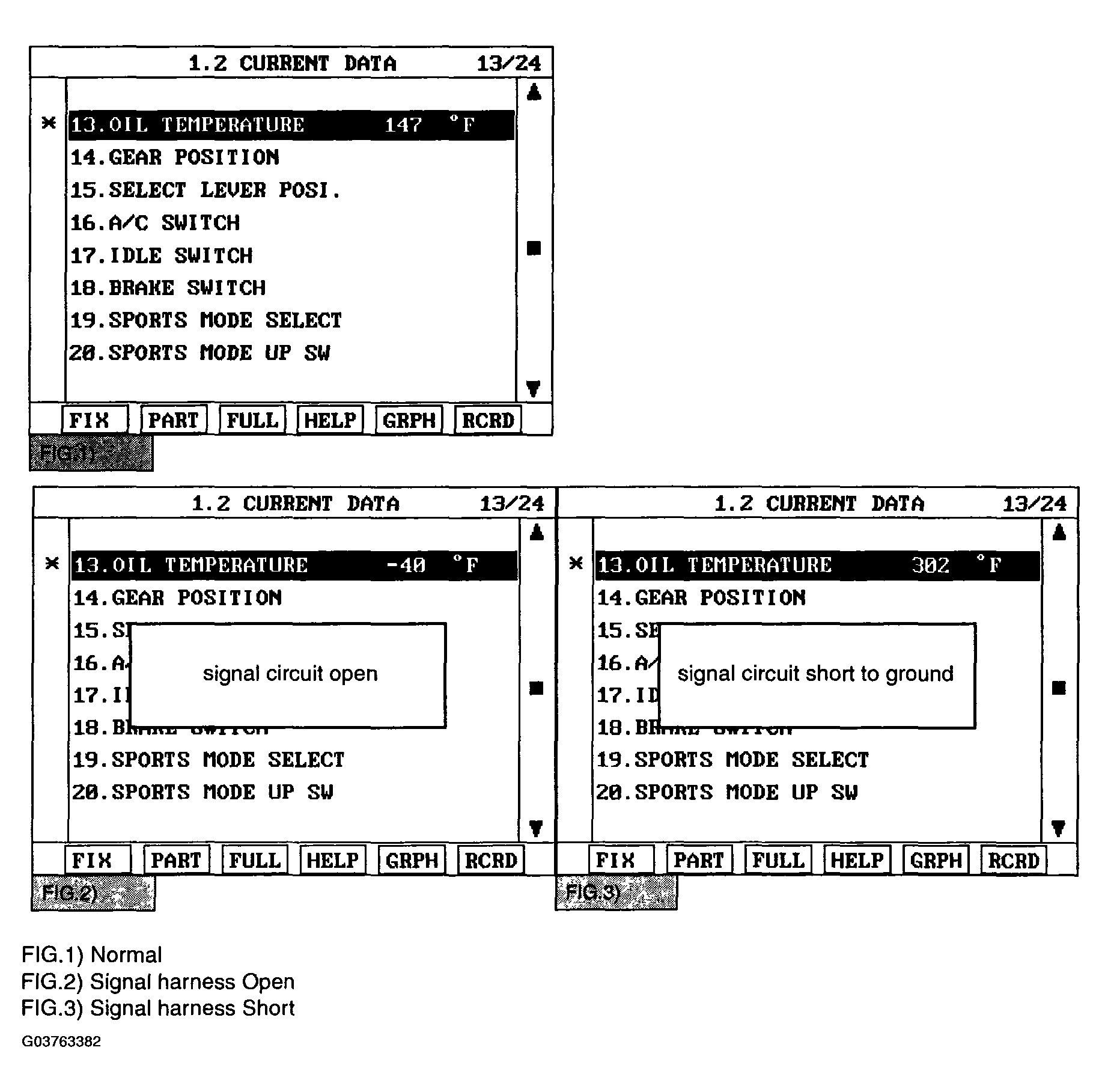

Fig 1: Monitoring Transaxle Fluid Temperature Sensor Parameter
Courtesy of HYUNDAI MOTOR CO.
Does "TRANSAXLE FLUID TEMPERATURE SENSOR" follow the reference data?
YES
- Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and refer to VERIFICATION OF VEHICLE REPAIR .
NO
- Refer to TERMINAL & CONNECTOR INSPECTION .
