Electronic Control System: Location

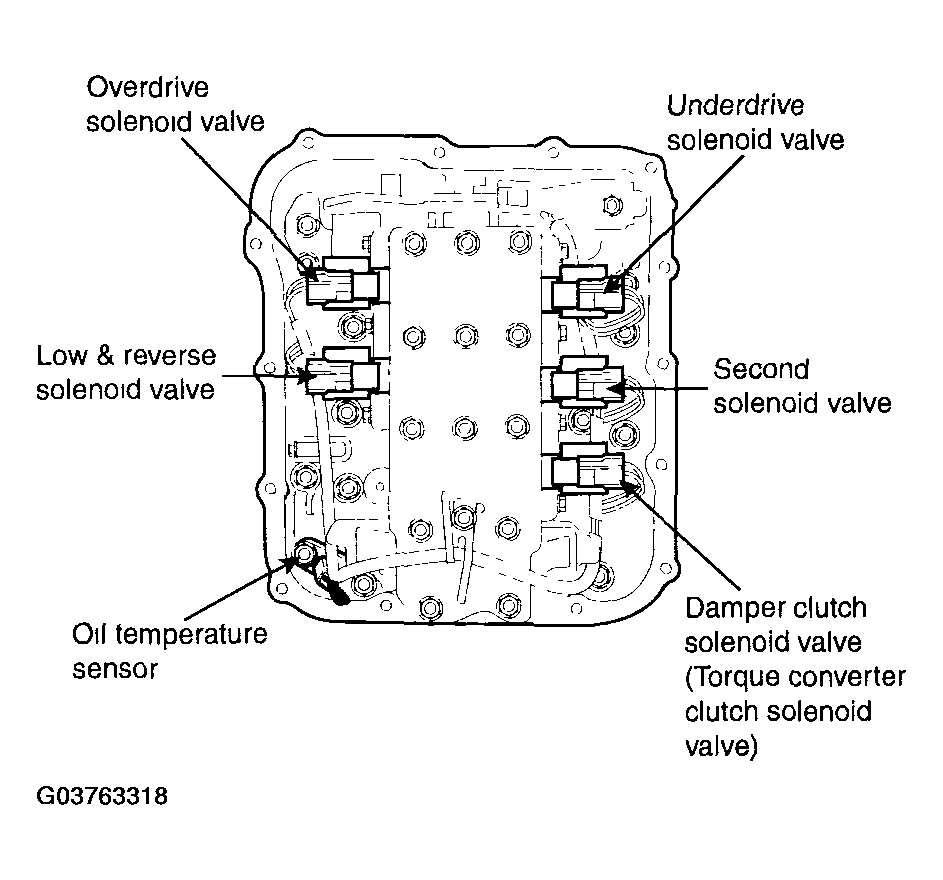

Fig 1: Identifying Actuators Location

G03763318

Courtesy of HYUNDAI MOTOR CO.
