TCM Pin Description

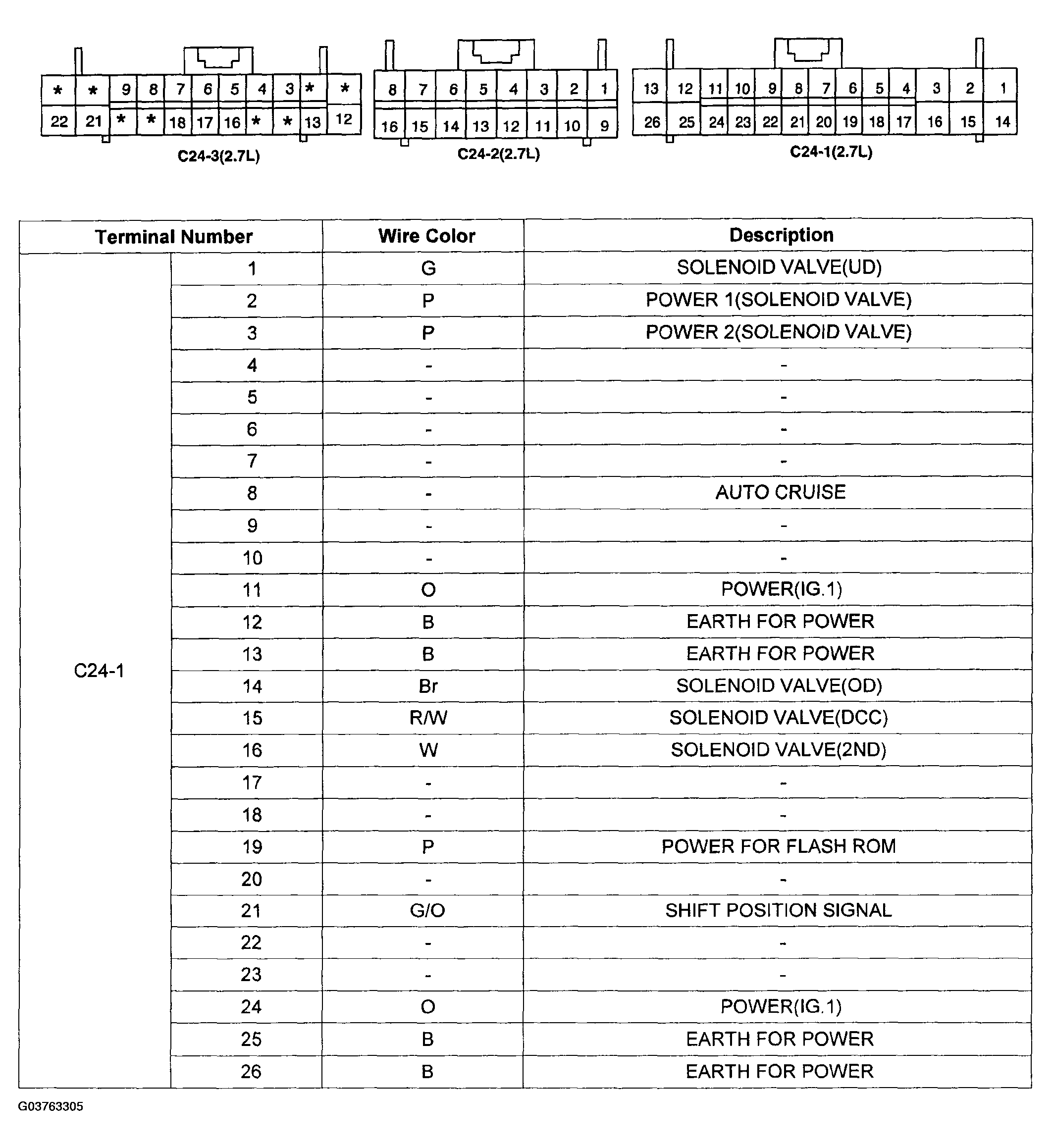

Fig 1: Identifying TCM Pin Description (1 Of 3)
G03763305Courtesy of HYUNDAI MOTOR CO.

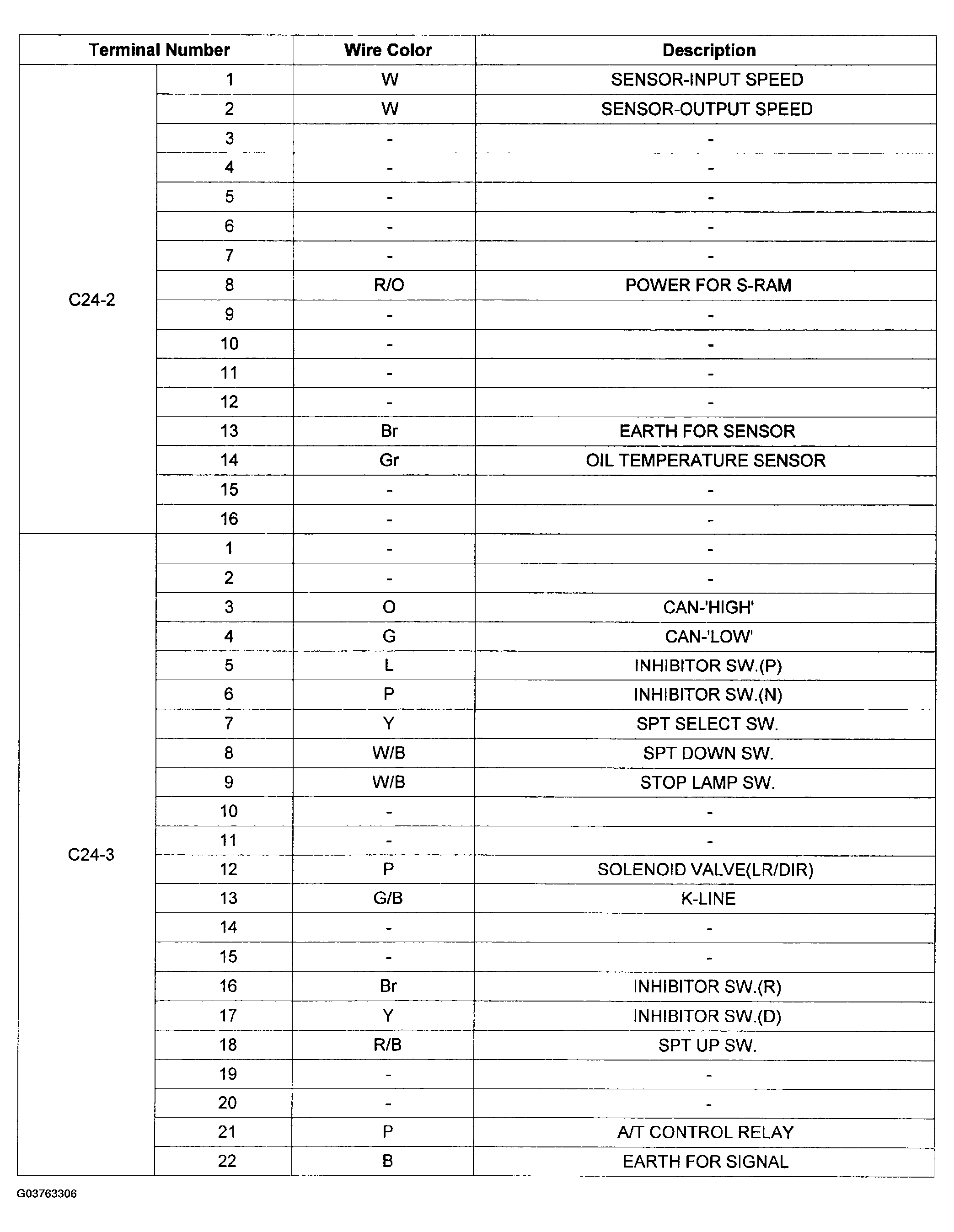

Fig 2: Identifying TCM Pin Description (2 Of 3)
G03763306Courtesy of HYUNDAI MOTOR CO.

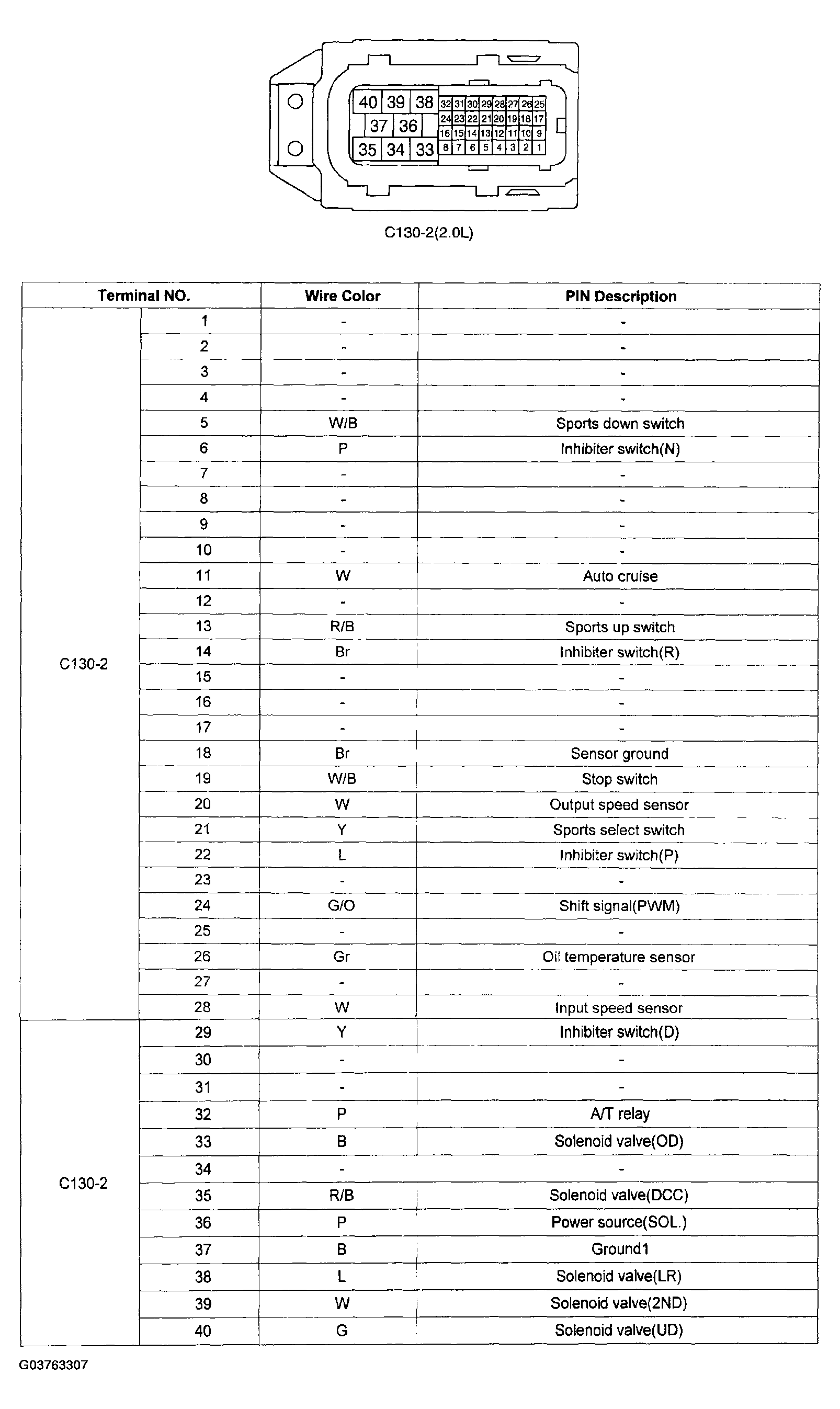

Fig 3: Identifying TCM Pin Description (3 Of 3)
G03763307Courtesy of HYUNDAI MOTOR CO.
