Fuel System (G6BA - GSL 2.7L)
›
Fuel Delivery System
›
Components
Fuel Delivery System: Components

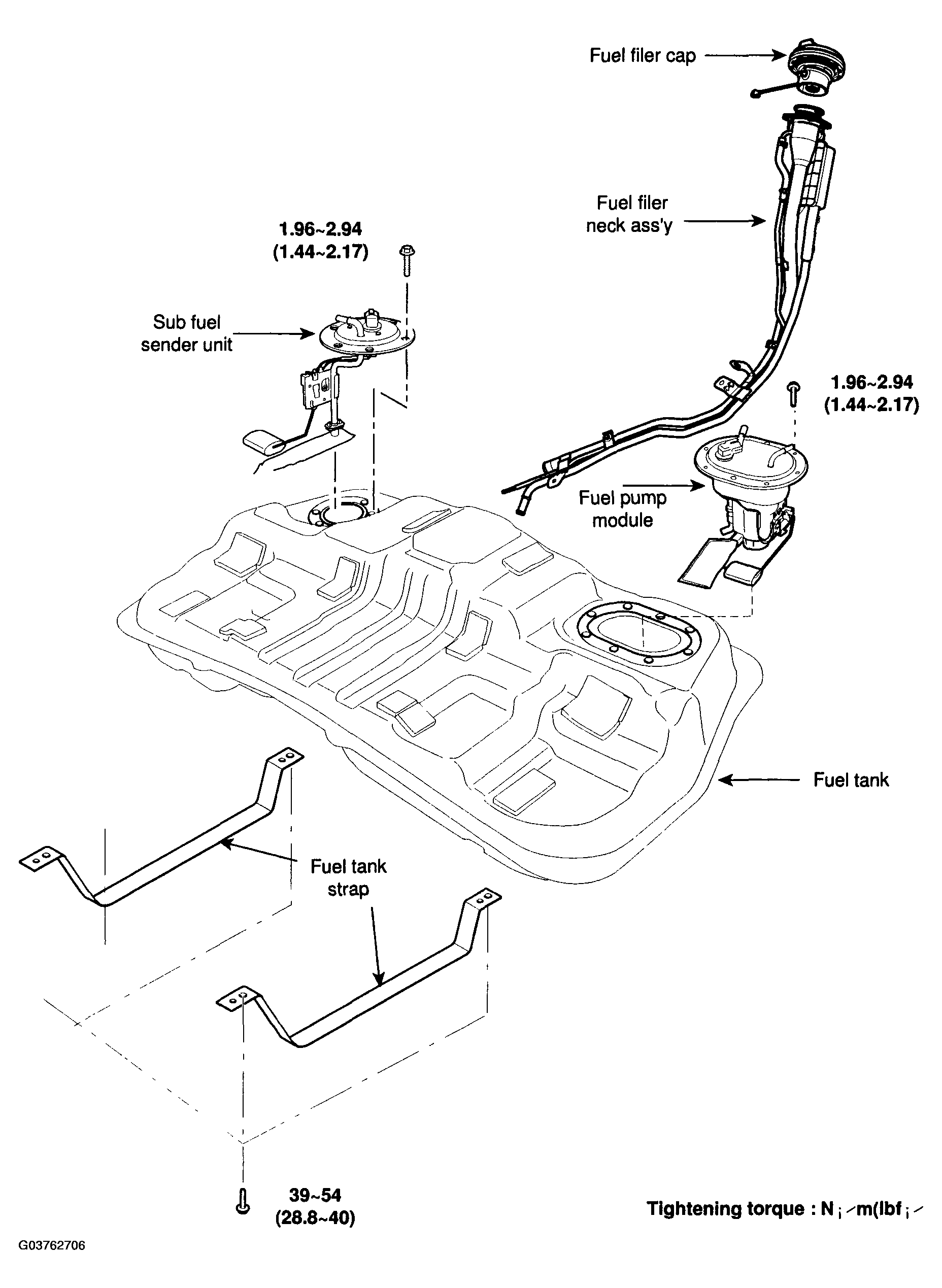

Fig 1: Fuel Delivery System Replacement Components With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
