Tucson LX, FWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel System (G6BA - GSL 2.7L)
›
Gasoline Engine Control System
›
Components Location
Components Location

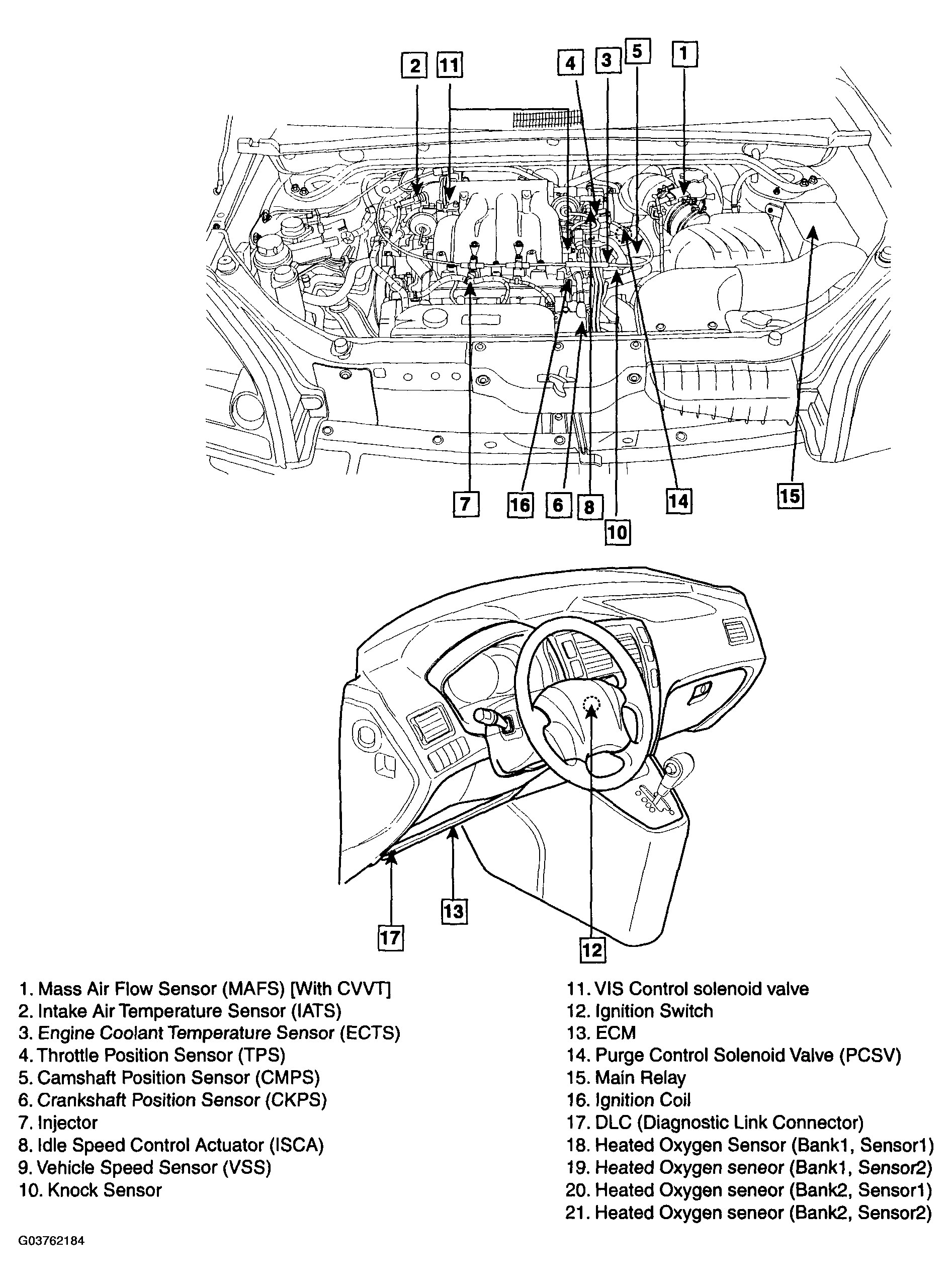

Fig 1: Component Locations (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

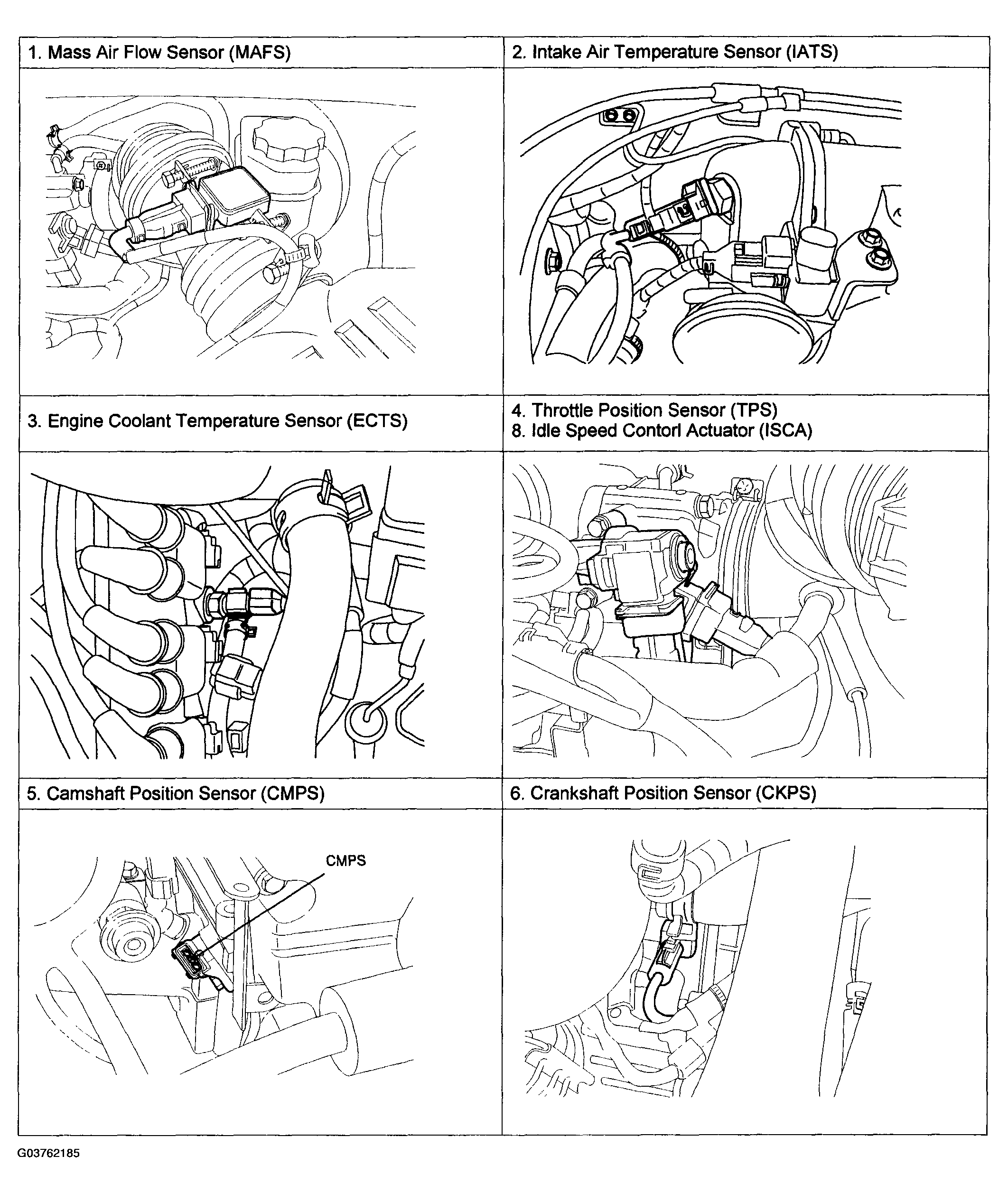

Fig 2: Component Locations (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

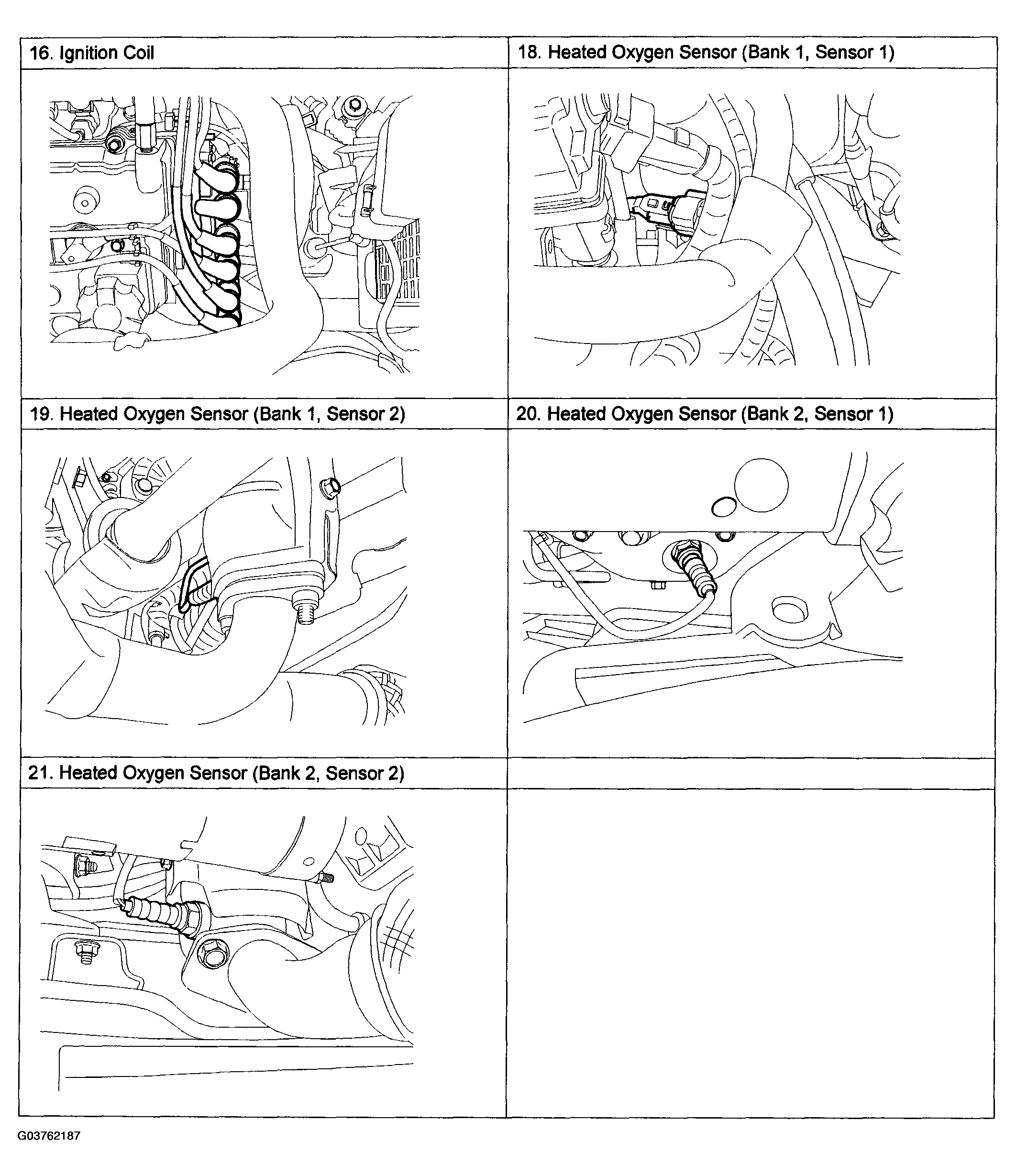

Fig 3: Component Locations (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

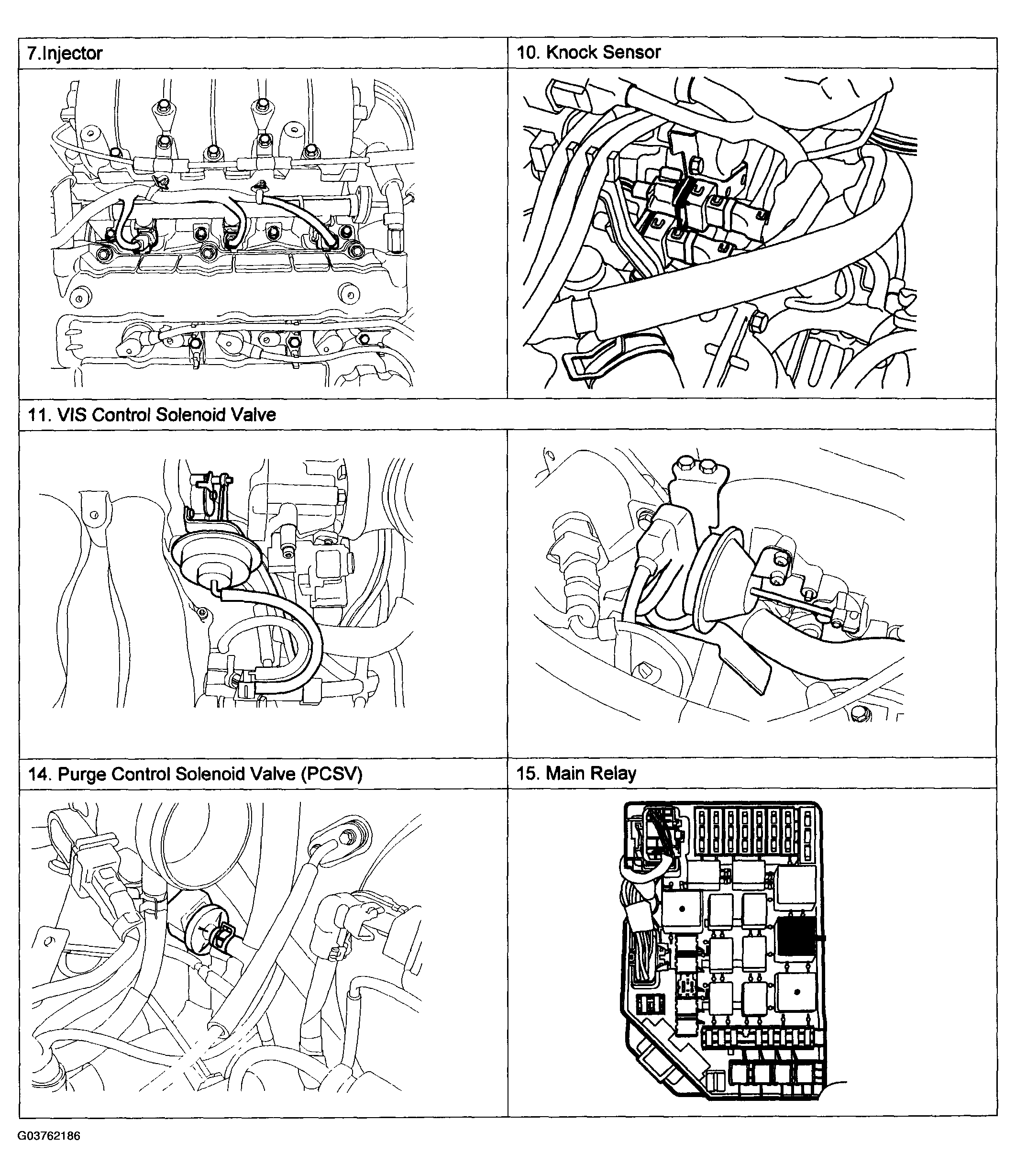

Fig 4: Component Locations (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
