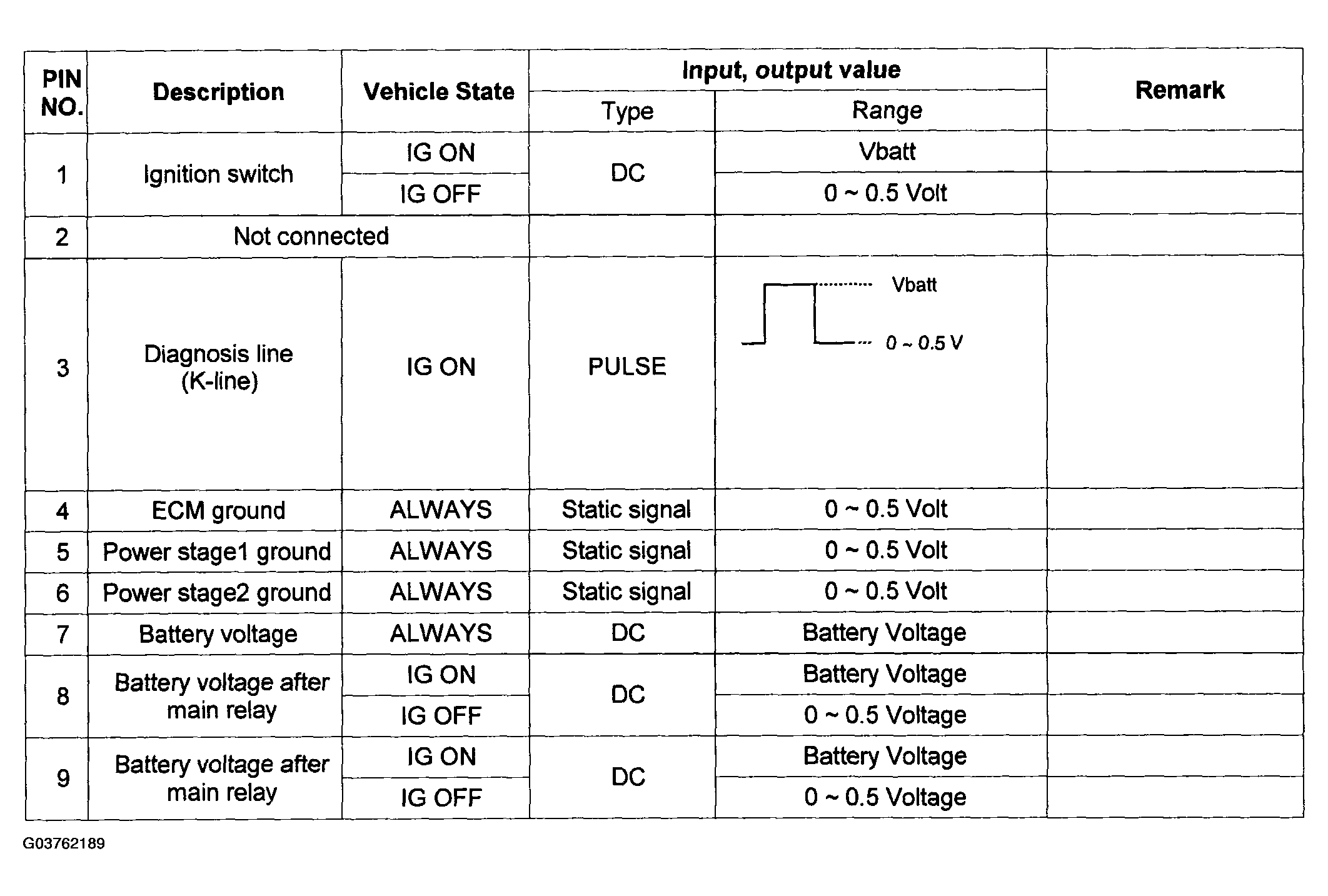

Home › Hyundai › 2005 › Tucson LX, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (G6BA - GSL 2.7L) › Gasoline Engine Control System › Engine Control Module (ECM) › 3. ECM Terminal Input/Output Signal › [Connector C30-1]
