[Connector C30-3]

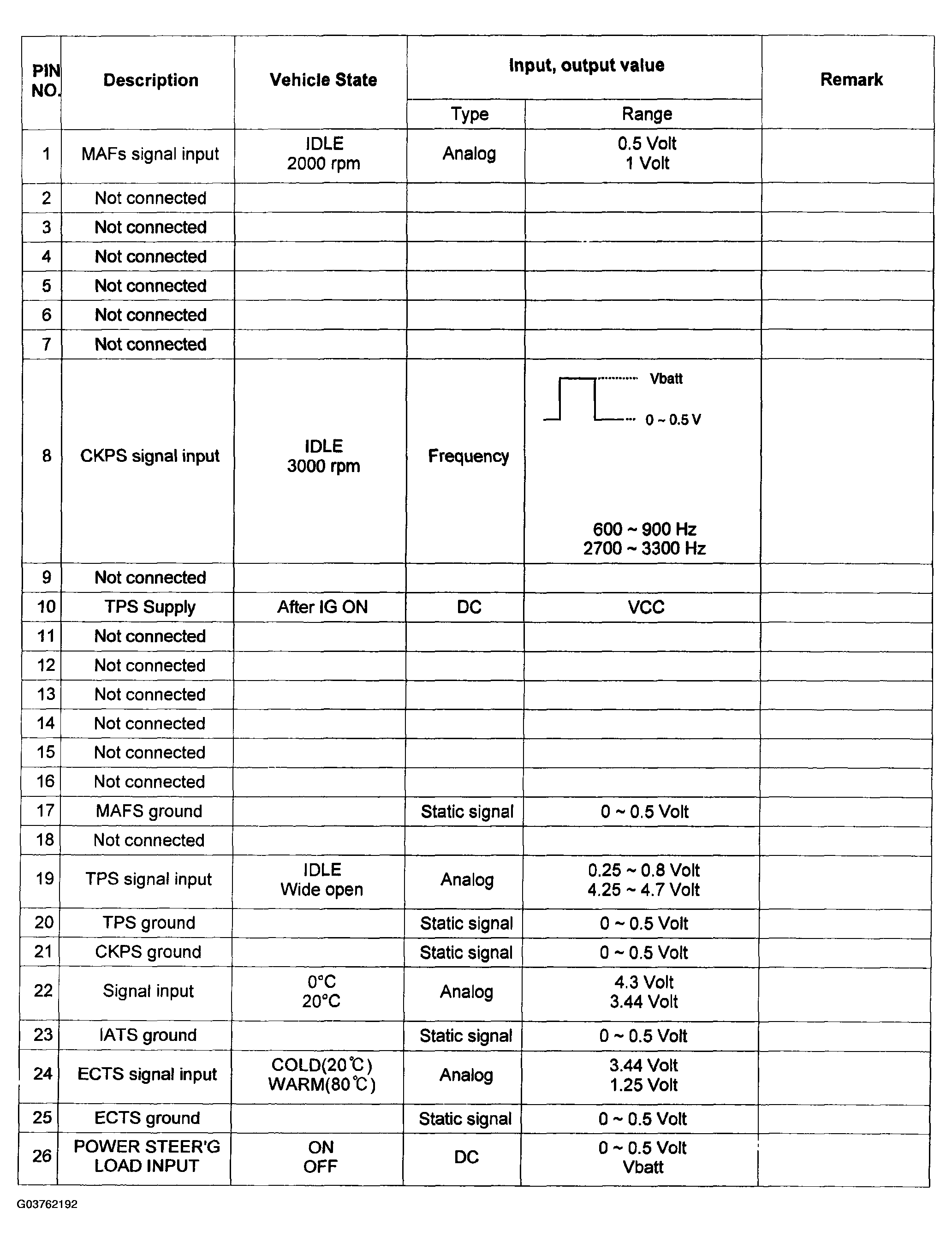

Fig 1: ECM Terminal Input/Output Signal - Connector C30-3 (1 Of 3)
G03762192Courtesy of HYUNDAI MOTOR CO.

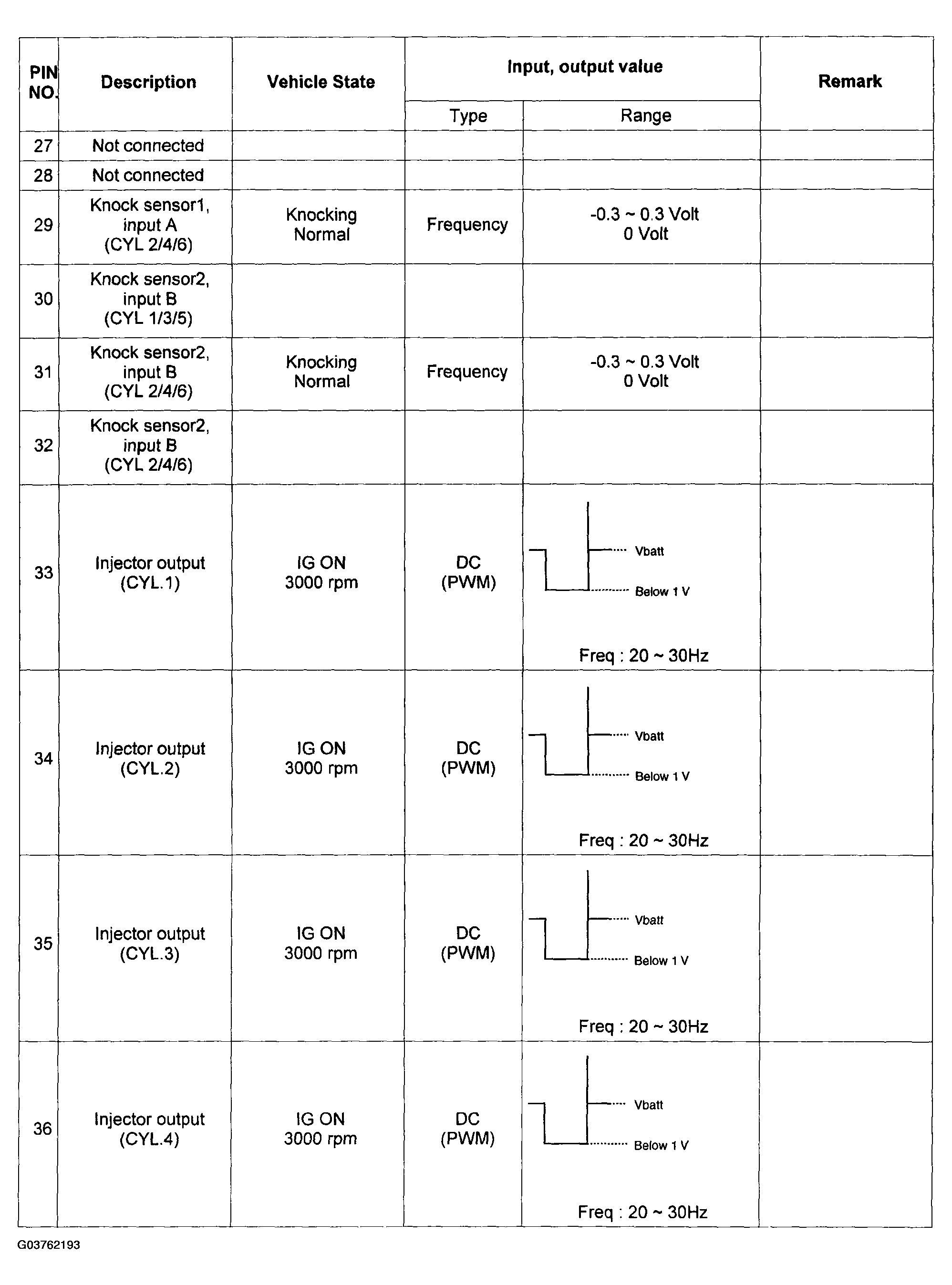

Fig 2: ECM Terminal Input/Output Signal - Connector C30-3 (2 Of 3)
G03762193Courtesy of HYUNDAI MOTOR CO.

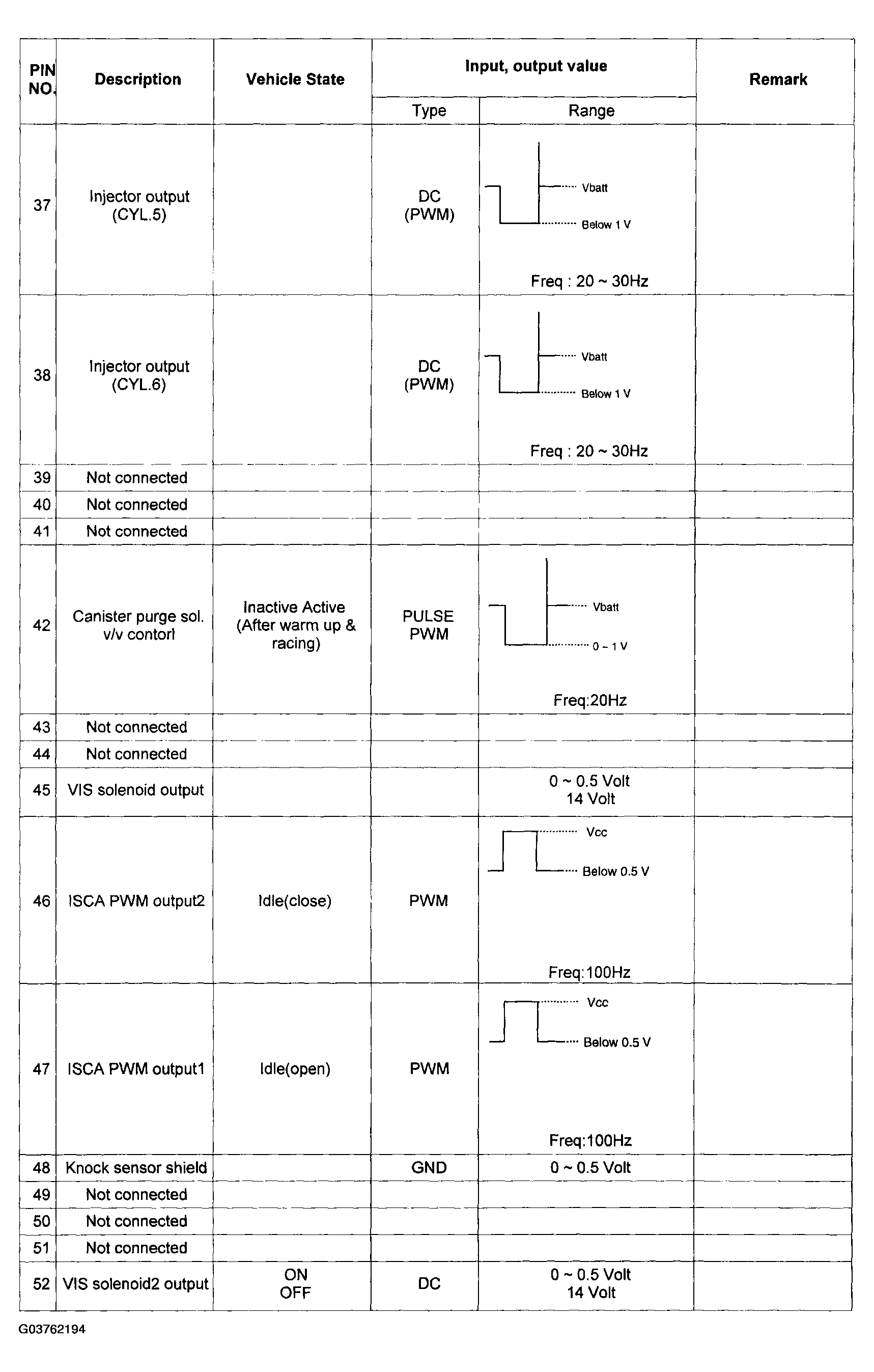

Fig 3: ECM Terminal Input/Output Signal - Connector C30-3 (3 Of 3)
G03762194Courtesy of HYUNDAI MOTOR CO.
